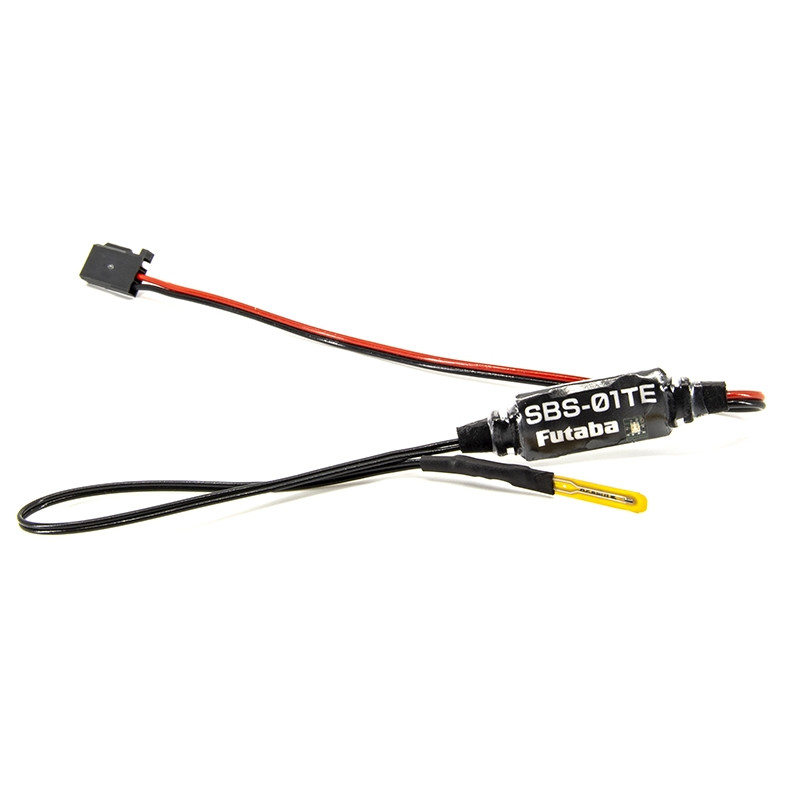

FUTABA SENSOR TEMPERATURE SENSOR (SBS-01TE) up to 125°C

Telemetry temperature sensor for Futaba RC kits with FASSTest, T-FHSS Air (for aircraft) and T-FHSS Surface (for cars) telemetry transmission systems. Allows temperature measurement from 0 to +125C. Ideal for temperature measurement of electric motors, speed controllers and similar applications. The sensor's operating status is indicated by an LED.

• Compatible receivers: Futaba receivers with S.BUS2 port
• Connection method to the receiver: socket S.BUS2
• Number of addresses required by the sensor: 1*
• Default address number setting (initial address): 1*
• Temperature measured by the sensor
• Power supply 3.7-7.4V (nominal battery voltage)
• Sensor kit includes: sensor, cables

  *) Telemetry sensors are identified on the S.BUS2 serial bus by an address number ("slot"); more complex sensors transmitting more than one data may require several consecutive addresses, in which case the first address belonging to the sensor is called the starting address.

Technical data:

• Power supply: 3.5-8.4 V
• Temperature range: 0 to +125°C
• Length (with cables): 350 mm
• Weight: 3.8 g

*Follow the enclosed instructions.
