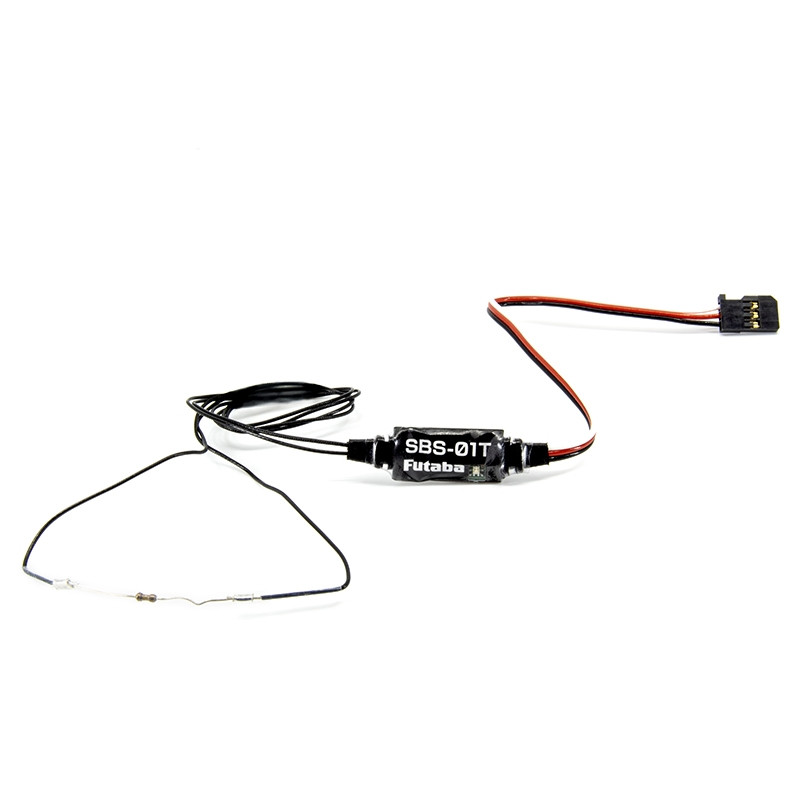

FUTABA SENSOR TEMPERATURE SENSOR (SBS-01T)

Telemetry temperature sensor for Futaba RC models with FASSTest, T-FHSS Air (for aircraft) and T-FHSS Surface (for cars) telemetry transmission systems. Allows temperature measurement from -20 to +200°C. Ideal for measuring the temperature of internal combustion engine heads and similar "high-temperature" applications. The sensor's operating states are indicated by an LED.

• Compatible receivers: Futaba receivers with S.BUS2 port
• Connection to the receiver: socket S.BUS2
• Number of addresses required by the sensor: 1*
• Default address number setting (starting address): 1*
• Transmitted telemetry data: Temperature measured by the sensor
• Power supply: 3.7-7.4 V (rated battery voltage)
• The sensor kit includes: sensor SBS-01T with cables, instructions.

  *) Telemetry sensors are identified on the S.BUS2 serial bus by an address number ("slot"); more complex sensors transmitting more than one data may require several consecutive addresses, in which case the first address belonging to that sensor is called the starting address.

Technical data:

• Power supply: 3.5-8.4 V
• Measured temperature range: -20 - +200°C
• Length (with cables): 535 mm
• Weight: 4.7 g

*Follow the instructions included with the product.
