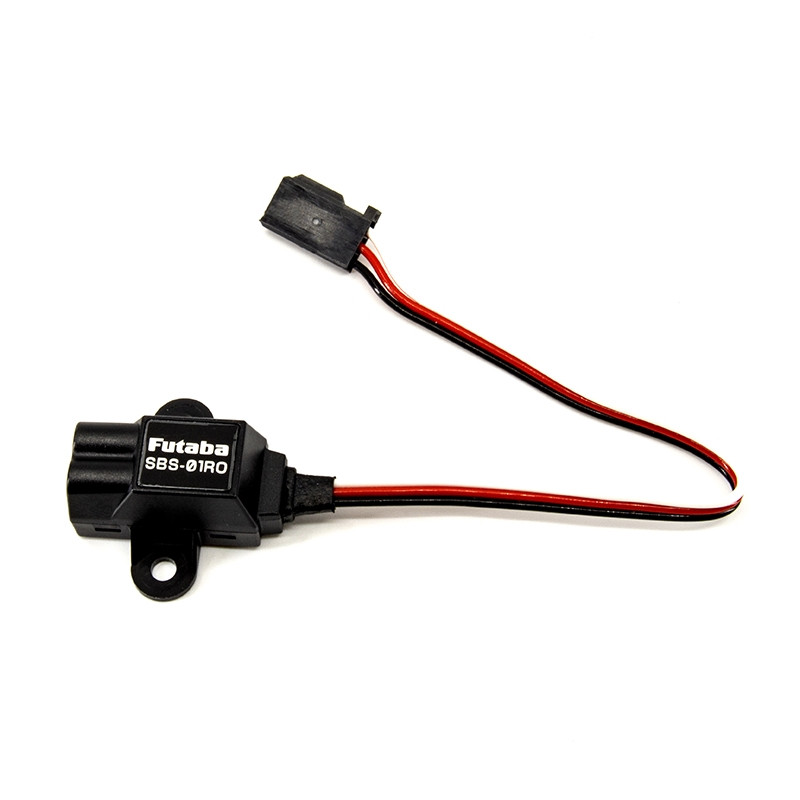

FUTABA SENSOR ROTARY SENSOR - OPTICAL (SBS-01RO)

Telemetry optical speed sensor for Futaba RC models with FASSTest and T-FHSS Air telemetry transmission systems (for aircraft). Allows measurement of propeller or rotor speed from 360 to 300,000 rpm. Ideal for measuring the speed of aircraft propellers and helicopter rotors and similar applications. Works in daylight (may not work properly indoors or in low light at night), the distance between the sensor and the propeller/rotor must be less than 150mm. The operating states of the sensor are indicated by an LED.

• Compatible receivers: Futaba receivers with S.BUS2 port
• Connection to the receiver: socket S.BUS2
• Number of addresses required by the sensor: 1*
• Default address number setting (starting address): 2*
• Transmitted telemetry data: number of revolutions (applies to two-blade propeller/rotor, with different number of blades, appropriate settings should be made in the transmitter menu)
• Typical mounting: on the nose of the model just behind the propeller, on the tail boom of the helicopter within range of the propeller, but out of range of the stabilizer blades
• Power supply 3.7-7.4 V (rated battery voltage)
• The sensor kit includes: sensor SBS-01RO with wires, sensor holder, double-sided adhesive tape, instructions.

  *) Telemetry sensors are identified on the S.BUS2 serial bus by an address number ("slot"); more complex sensors transmitting more than one data may require several consecutive addresses, in which case the first address belonging to that sensor is called the starting address.

Technical data:

• Power supply: 3.5-8.4 V
• Measured speed range: 360-300000 rpm
• Length (with cables): 160 mm
• Weight: 4.9 g

*Follow the instructions included with the product
