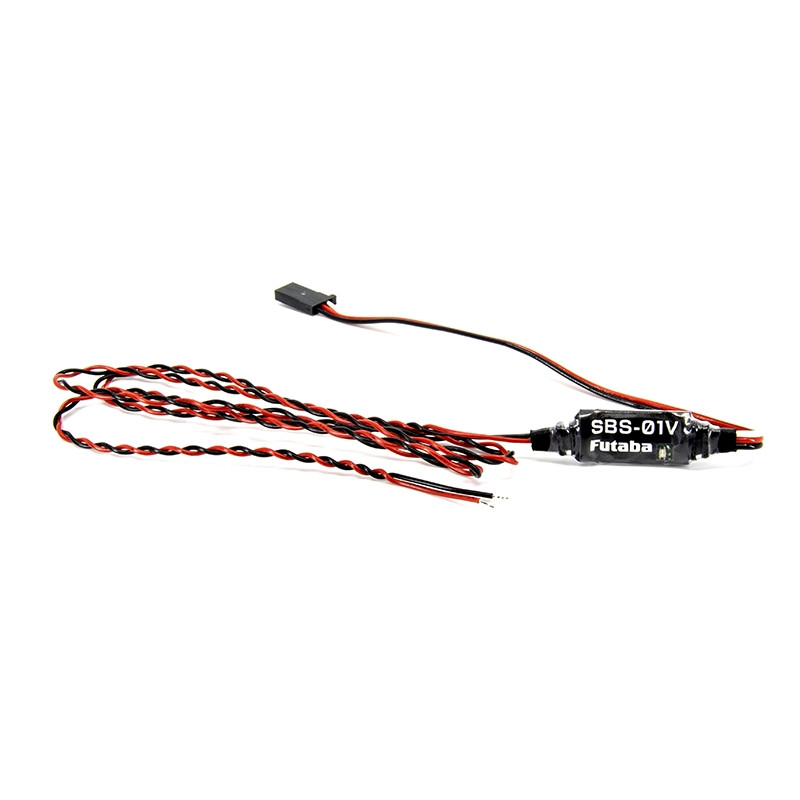

FUTABA SENSOR VOLTAGE SENSOR (SBS-01V)

Telemetry voltage sensor for Futaba RC models with FASSTest, T-FHSS Air (for aircraft) and T-FHSS Surface (for cars) telemetry transmission systems. Allows you to measure the DC voltage at the sensor input from 0 to 100 volts and at the same time measure the supply voltage of the electronics of the sensor itself. Ideal for measuring the voltage of propulsion batteries and similar applications. The sensor's operating states are indicated by an LED.

• Compatible receivers: Futaba receivers with S.BUS2 port
• Connection to the receiver: socket S.BUS2
• Number of addresses required by the sensor: 2*
• Default address number setting (starting address): 6*
• Transmitted telemetry data: voltage at sensor measurement input, sensor electronics supply voltage at sensor servo connector
• Power supply 3.7-7.4 V (rated battery voltage)
• The sensor kit includes: sensor SBS-01V with wires, fuse, heat shrink tube, instructions

  *) Telemetry sensors are identified on the S.BUS2 serial bus by an address number ("slot"); more complex sensors transmitting more than one data may require several consecutive addresses, in which case the first address belonging to that sensor is called the starting address.

Technical data:

• Power supply: 3.5 - 8.4 V
• Measured range of external voltage: 0 - 100 V
• Length (with cables): 870 mm
• Weight: 6 g

*Follow the instructions included with the product.
