Futaba Digital servos

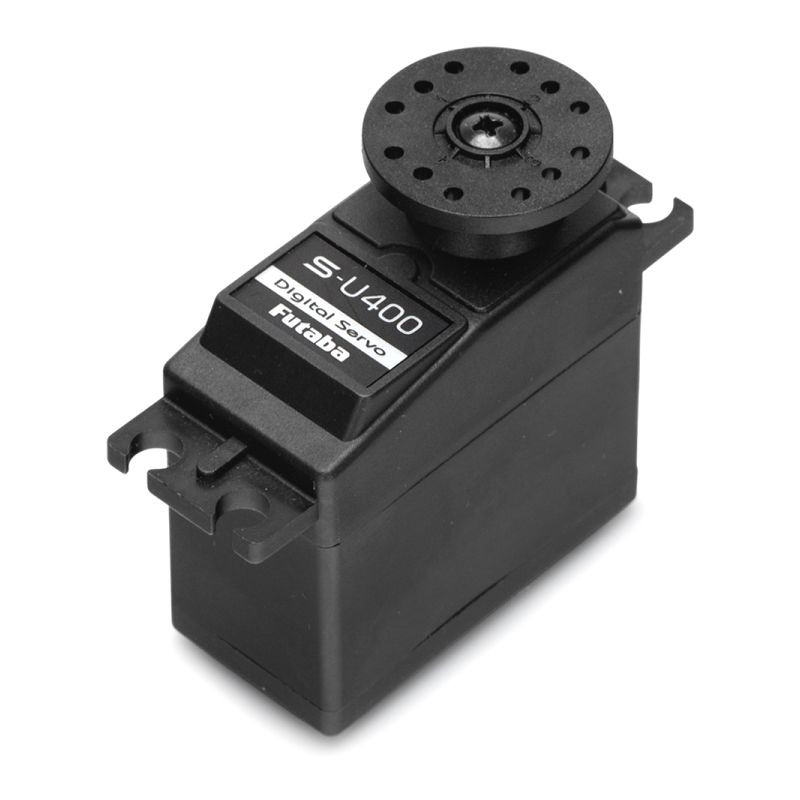

FUTABA SERWO S-U400 without packaging (7.9kg-0.13s/60°) HV S.BUS2

€30.00
13-1506
Futaba
In stock

Programmable digital standard S.BUS2/S.BUS servo with plastic gears for general use. Ideal for model airplanes of all kinds (up to a size suitable for internal combustion engines of about 15-20 cm3), cars and boats.

The S-U400 module can be connected to the S.BUS 2 (serial bus with bidirectional communication) or S.BUS (serial bus with unidirectional communication) outputs of receivers, or it can act as a classic servo connected to the channel (PWM) output of the receiver.

Using CIU-3 USB interface and S-Link software or Futaba transmitter equipped with S.BUS servo settings function, a wide range of servo parameters can be programmed (speed, swing size, neutral gear, overload protection, soft start, etc.).

Specifications:

  • Servo size: Standard
  • Servo type: Digital
  • Power at: 6.6 V [kg/cm]: 7.1 / at: 7.4 V [kg/cm]: 7,9
  • Speed at 6.6 V [s/60st]: 0.14 / at 7.4 V [s/60st]: 0,13
  • Gearbox: plastic
  • Ball bearings: no
  • Power supply [V]: 4,8 - 8,4
  • Length [mm]: 40
  • Width [mm]: 20
  • Height [mm]: 36
  • Weight [g]: 39
  • S.BUS: YES
  • S.BUS2: YES
  • Application: airplanes, helicopters, road cars, off-road vehicles, sailboats, boats

Bulk: servo without a unit package - bulk package of 10 pieces

*Follow the instruction manual included with the product.
