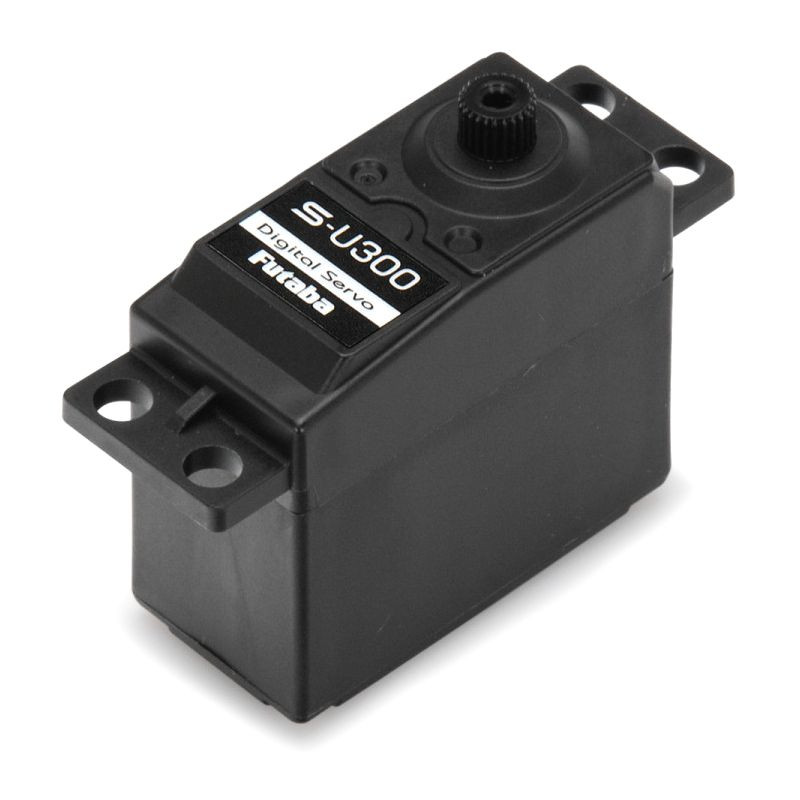

FUTABA SERWO S-U300 (4.5kg-0.19s/60°) S.BUS2

Programmable digital standard S.BUS2/S.BUS servo with plastic gears for general use. Ideal for model aircraft of all kinds (up to a size suitable for internal combustion engines of about 15-20 cm3), cars and boats.

The S-U300 module can be connected to the S.BUS 2 (serial bus with bidirectional communication) or S.BUS (serial bus with unidirectional communication) outputs of receivers, or it can act as a classic servo connected to the channel (PWM) output of the receiver.

Using CIU-3 USB interface and S-Link software or Futaba transmitter equipped with S.BUS servo settings function, a wide range of servo parameters can be programmed (speed, swing size, neutral gear, overload protection, soft start, etc.).

Specifications:

• Servo size: Standard
• Servo type: Digital
• Power at: 4.8 V [kg/cm]: 3.2 / at: 6.0 V [kg/cm]: 4.1
• Speed at 4.8 V [s/60st]: 0.23 / at 6.0 V [s/60st]: 0,19
• Gearbox: plastic
• Ball bearings: no
• Power supply [V]: 4,8 - 6
• Length [mm]: 40
• Width [mm]: 20
• Height [mm]: 36
• Weight [g]: 37
• S.BUS: YES
• S.BUS2: YES
• Application: airplanes, helicopters, road cars, off-road vehicles, sailboats, boats

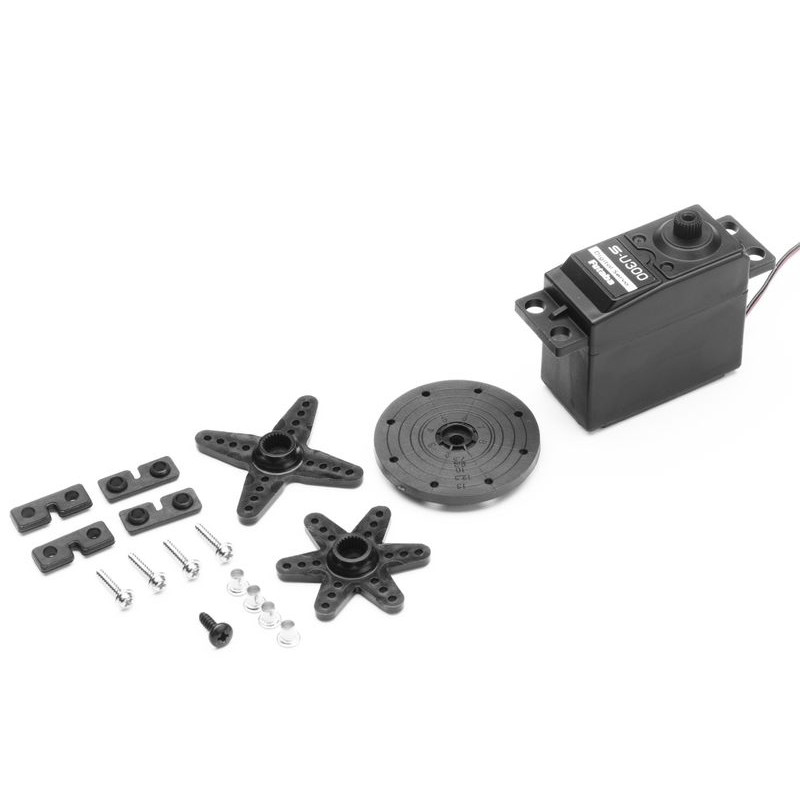

Bulk: servo without a unit package - bulk package of 10 pieces

*Follow the instruction manual included with the product.
