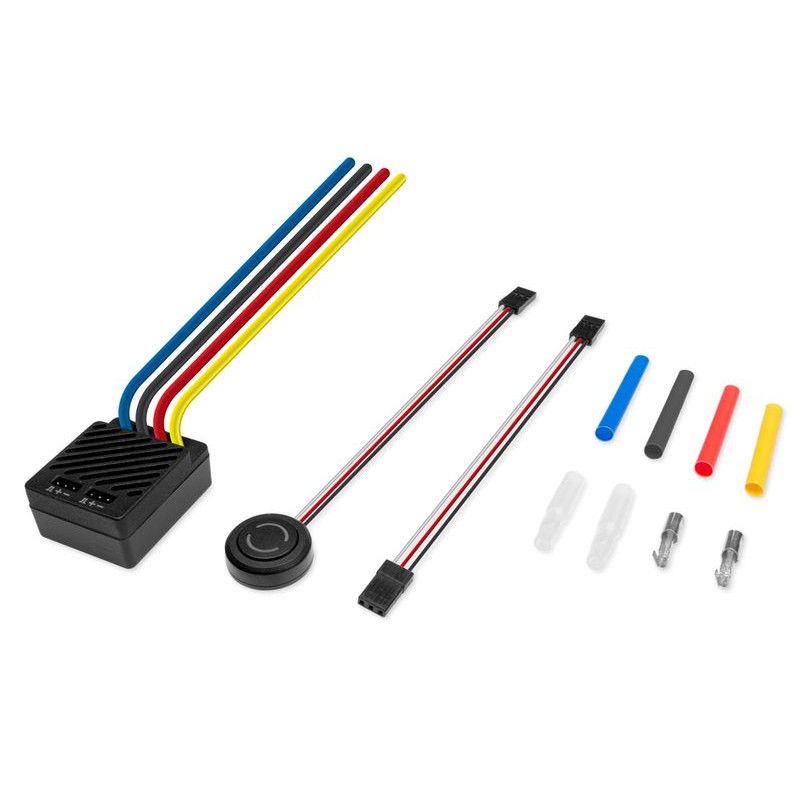

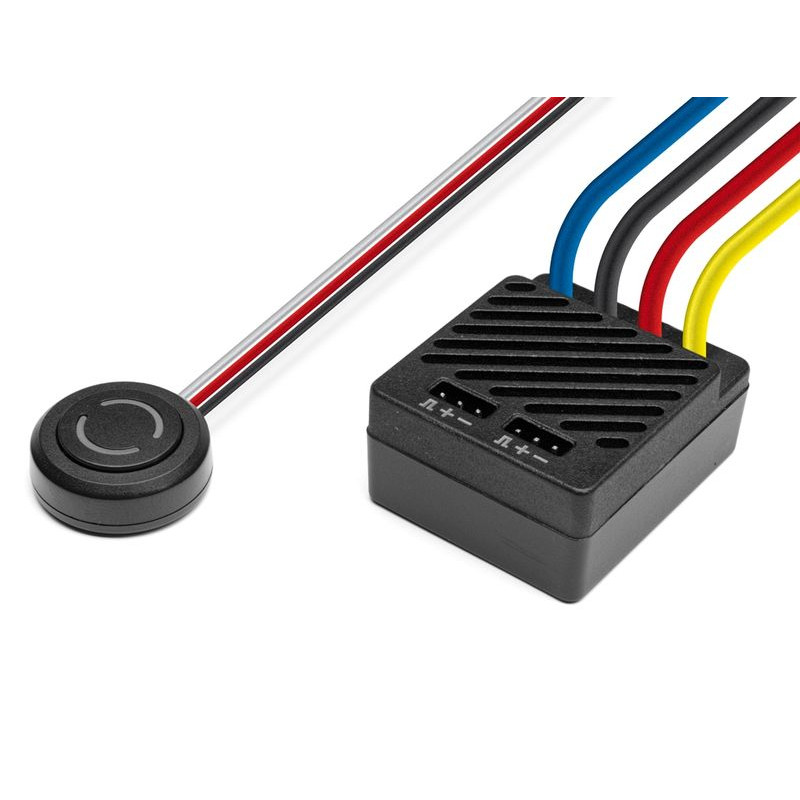

ISDT RPM REGULATOR 70 A (1022) for brush motors

Programmable electronic controller for DC motors for 1:10 scale model cars and boats with 540, 550, 600 series electric motors. The use of modern MOSFET power transistors and aluminum housing with cooling fins ensures high current carrying capacity with small size and low weight. The controller's powerful switchable BEC power stabilizer guarantees reliable servo power supply. You can easily and quickly program the controller with a Bluetooth connection to the ISD Go app on your smartphone.

CONTROLLER FEATURES

• Programmable via Bluetooth connection with the ISD Go app
• Electronic switch with Bluetooth module
• BEC power stabilizer with up to 3 A load capacity and adjustable output voltage of 5.0-7.5 V
• Power supply: 2-3S LiPo / 6-8 NiXX cells
• Protections: voltage, overload, loss of control signal, thermal protection
• Driving modes: forward/brake, forward/brake/reverse, forward/reverse
• Active drag brake for rock crawlers in forward/reverse mode keeps the vehicle even on a steep slope
• Throttle control range calibration with neutral bandwidth adjustment
• Splash resistant (IP65 standard)

PROGRAMMABLE FUNCTIONS

• Driving modes: forward/brake/reverse, forward/brake, forward/reverse)
• Battery type: LiPo / NiMH/Cd
• Number of articles: 2S / 6-8 articles
• Voltage protection: automatic / 5.0-12.0 V
• BEC output voltage: adjustable 5.0-7.5 V in 0.1 V steps
• Motor rotation direction: clockwise / counterclockwise
• Switching frequency: 1-20 kHz
• Divergence: 10 levels
• Braking effect: 10 levels
• Active resistive brake effect: Off / 1-20
• Activate / deactivate active brake
• Throttle curve: 4 selectable courses, including. adjustable exponential curves
• Brake curve: 4 courses to choose from, including. adjustable exponential curves
• Reset to factory default settings

Specifications:

• Continuous current [A]: 70
• Max. peak (instantaneous) current [A]: 120
• Number of NiMH cells [units]: 6 - 8
• Number of Li-Po cells [pieces]: 2 - 3
• BEC voltage [V]: 5 - 7,5
• BEC current [A]: 3
• Length [mm]: 38,6
• Width [mm]: 31,6
• Height [mm]: 17.2
• Weight [g]: 53,5
• Number of directions: Bidirectional
• Brake: Yes
• Input for sensors: NO
• Programmable: yes

For more information and photos, visit the manufacturer's website.

*Follow the instructions included with the product.
