FLYSKY RECEIVER FS-SR8

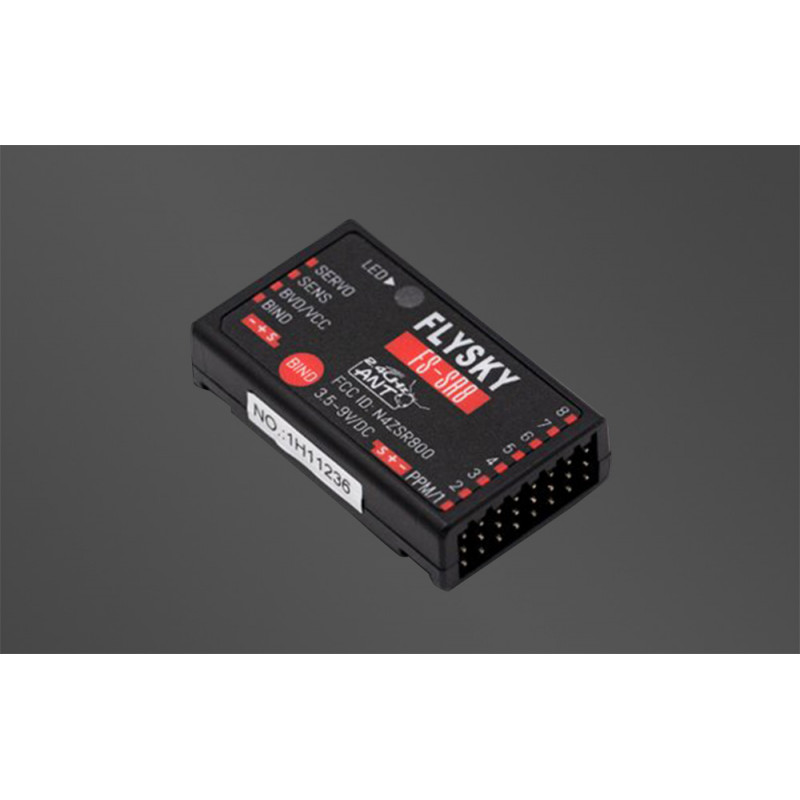

FlySky FS-SR8 receiver

The FS-SR8 is an 8-channel dual antenna receiver that operates at a frequency of 2.4 GHz. It stands out with a range of up to 1,000 meters on the surface. Its dimensions are only 44.8 x 26.6 x 11.3 mm, and it weighs only 10 g. It is designed for FS-ST8, FS-4GP, FS-G7P transmitters and uses the stable ANT protocol. It supports RSSI power indicator and PWM, PPM, i.BUS and s.BUS output signals.

Specifications:

• Model: FS-SR8
• Number of PWM channels: 8
• Wireless frequency: 2.4GHz
• Protocol: ANT
• Range: up to 1000m (on surface)
• Antenna: Dual
• Input power: 3.5-8.4V
• RSSI: Supported
• Output signal: PWM, PPM, i.BUS, s.BUS
• BVD function: Yes, 0-70V
• Online update: Yes
• Dimensions: 44.8 x 26.6 x 11.3 mm
• Weight: 10 g

*Follow the enclosed instruction manual.
