FLYSKY RECEIVER FS-R7P

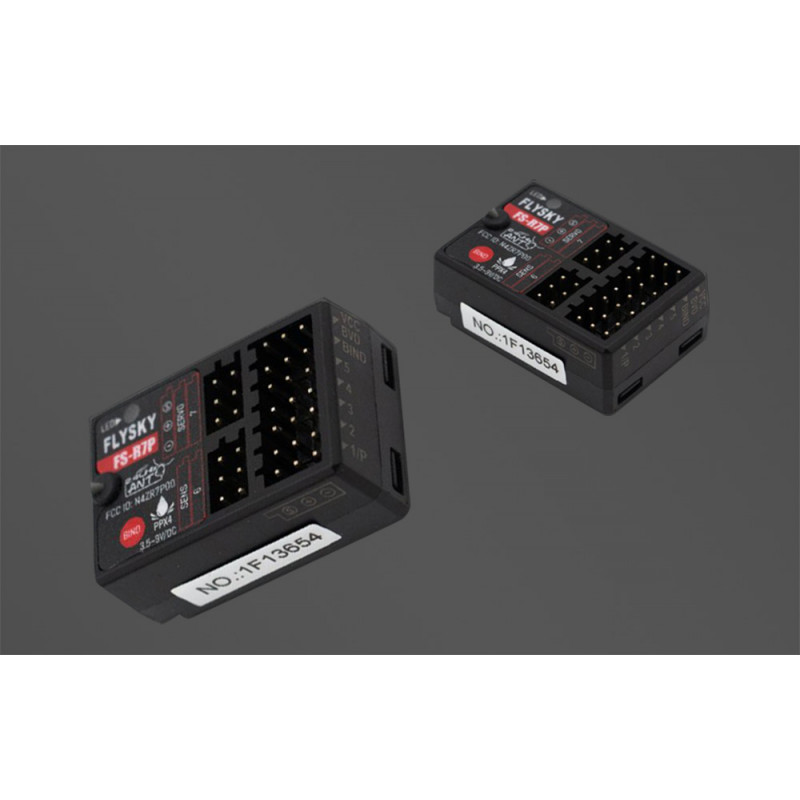

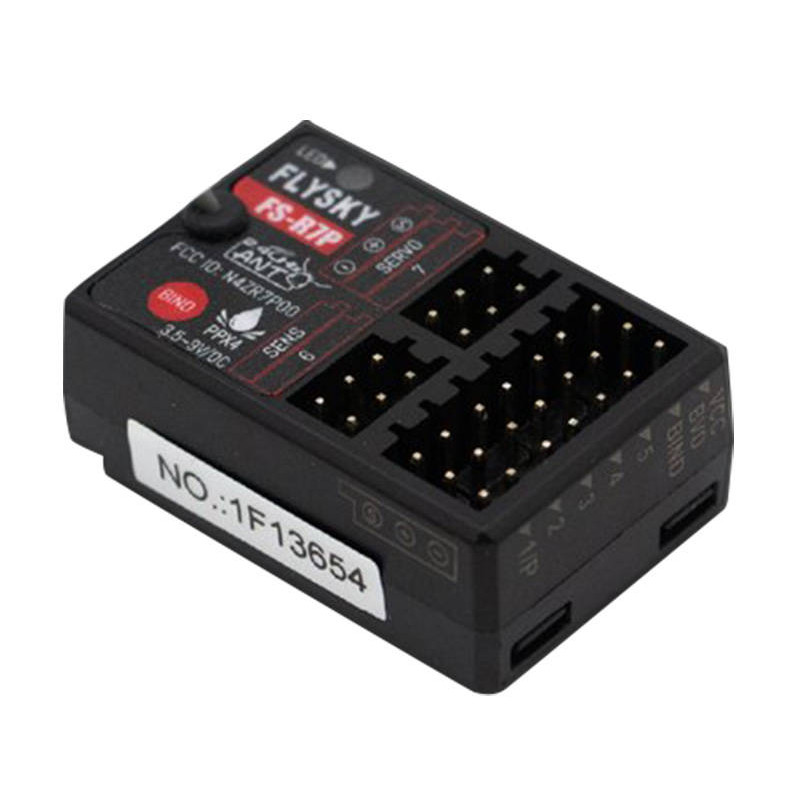

FlySky FS-R7P receiver

the 7-channel FS-R7P receiver operates at a frequency of 2.4 GHz. It is distinguished by a range of up to 300 meters on the surface. Its dimensions are only 35 x 23.3 x 13.3 mm, and it weighs only 8 g. It is designed for FS-G4P and FS-G7P transmitters and uses the stable ANT protocol. It supports RSSI power indicator and provides PPX4-level waterproofing.

Specifications:

• Model: FS-R7P
• Number of PWM channels: 7
• Wireless frequency: 2.4GHz
• Protocol: ANT
• Range: up to 300m (on the surface)
• Power: 20dBm (max)
• Antenna: Single
• Input power: 3.5-8.4V/DC
• RSSI: Supported
• Output signal: PWM
• Waterproof level: PPX4
• Online update: Yes
• Dimensions: 35 x 23.3 x 13.3 mm
• Weight: 8 g
• Compatibility: FS-G4P and FS-G7P

*Follow the instructions included with the product.
