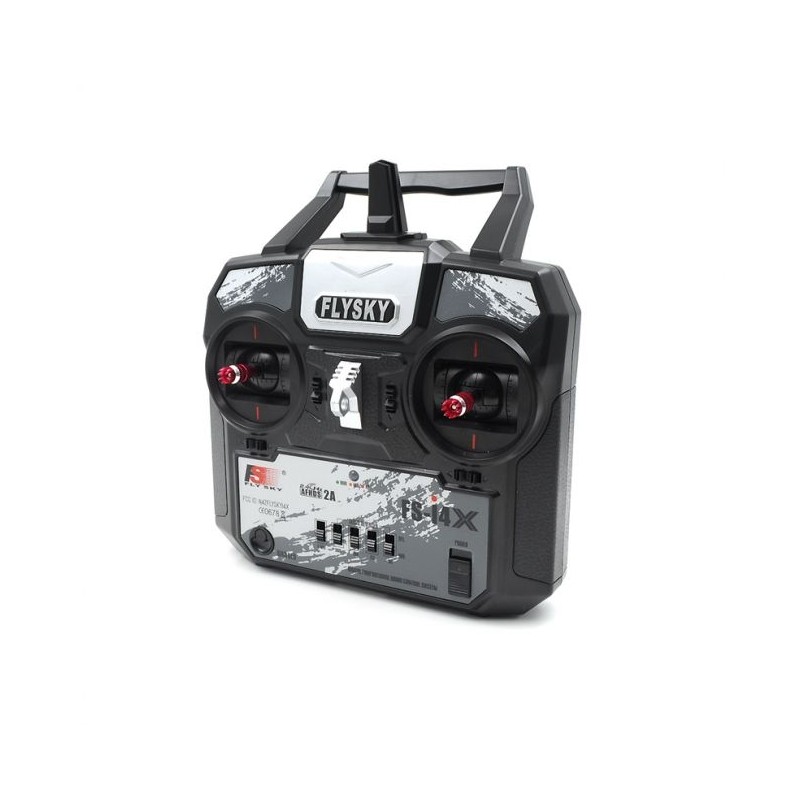

The FS-i4X is a beginner's transmitter for drones, planes and boats with channel inversion and channel mixing. The number of channels can be extended to 10.
The apparatus is also equipped with an anti-interference system that works well at long distances. The FS-i4X has a very low power consumption mainly due to the RF modulation, which uses an intermittent signal. This saves power.
The AFHDS2A system has the auto-identification function, which can switch the auto switch mode between one-way communication mode and two-way communication mode according to customer needs. AFHDS2A has built-in multi-channel coding and error correction, which improves communication stability, reduces error rate and increases reliable transmission distance.
The set also includes a 6-channel receiver with a range of up to 1000m and a telemetry system.
Technical data:
FS-i4X transmitter:
Number of channels: 4-10
Supported model types: Fixed-Wing / Glider / Helicopter
RF frequency: 2.408-2.475GHz
RF power: <20dBm
RF Channels: 135
Bandwidth: 500KHz
2.4GHz system: AFHDS 2A / AFDHS
You modulation: GFSK
Sensitivity: 1024
Low voltage warning: <4.2V
Antenna Length: 26mm (Dual Antenna)
Power supply 6V DC 1.5AA x4
Display: STN Transflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
Online update possible: yes
Certificates: CE0678, FCC
Black colour
Dimensions: 17.4x8.9x19cm
Weight: 335g
Receiver FS-A6:
Number of channels: 6
PPM port
AFHDS 2A
Telemetry sensor output
Built-in power socket (VCC)
Sensitivity: -105DBm
Power supply: DC 4V-6.5V
Antenna Length: 26mm x 2 pcs
Dimensions: 45 x 23 x 9mm
Weight: 13 g
Number of channels: 4-10
Supported model types: Fixed-Wing / Glider / Helicopter
RF frequency: 2.408-2.475GHz
RF power: <20dBm
RF Channels: 135
Bandwidth: 500KHz
2.4GHz system: AFHDS 2A / AFDHS
You modulation: GFSK
Sensitivity: 1024
Low voltage warning: <4.2V
Antenna Length: 26mm (Dual Antenna)
Power supply 6V DC 1.5AA x4
Display: STN Transflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
Online update possible: yes
Certificates: CE0678, FCC
Black colour
Dimensions: 17.4x8.9x19cm
Weight: 335g
Receiver FS-A6:
Number of channels: 6
PPM port
AFHDS 2A
Telemetry sensor output
Built-in power socket (VCC)
Sensitivity: -105DBm
Power supply: DC 4V-6.5V
Antenna Length: 26mm x 2 pcs
Dimensions: 45 x 23 x 9mm
Weight: 13 g
Included:
Flysky FS-i4X transmitter
Flysky FS-A6 receiver
Flysky FS-A6 receiver
