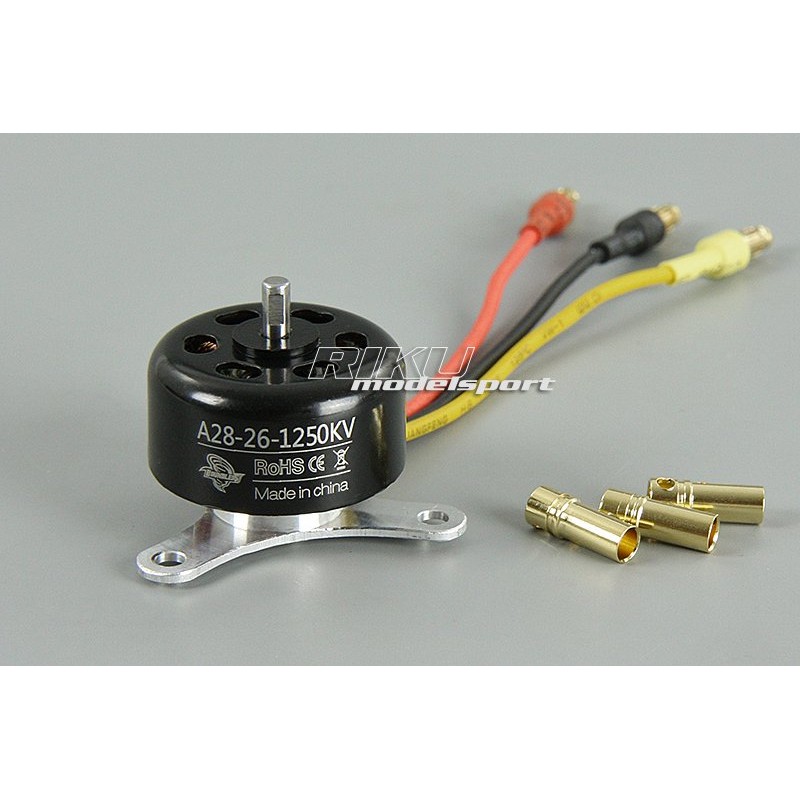

E- MAX MOTOR GA2826-1250

Brushless motor GS A28-26-1250KV.

The "A" series are economical brushless motors designed to drive smaller flying models.
The low cost of these motors is due to the use of a molded-in housing.

Features:

• 3 sets of "Gold" plugs - 3.5mm
• distance between holes mounting the engine - 34mm
• mounting holes diameter - 3.2mm

Technical data:

• number of power cells [LiPo]: 2-3
• rated voltage [V]: 6-12
• KV coefficient [rpm]: 1250
• maximum string [g]: 800
• current consumption without load [A]: 0.7
• maximum current consumption [A]: 18
• maximum power [W]: 180
• internal resistance [Ω]: 0.1521
• recommended propeller diameter [cale]: GWS 8x4 / APC 9x4.7
• motor diameter [mm]: 28
• motor length without shaft [mm]: 20
• motor shaft length [mm]: 12
• shaft diameter [mm]: 3
• engine weight [g]: 41
