MUDENTAL (13001)

Contactless (wireless) servo connection module for medium-sized models, manufactured by the German company Muldental.

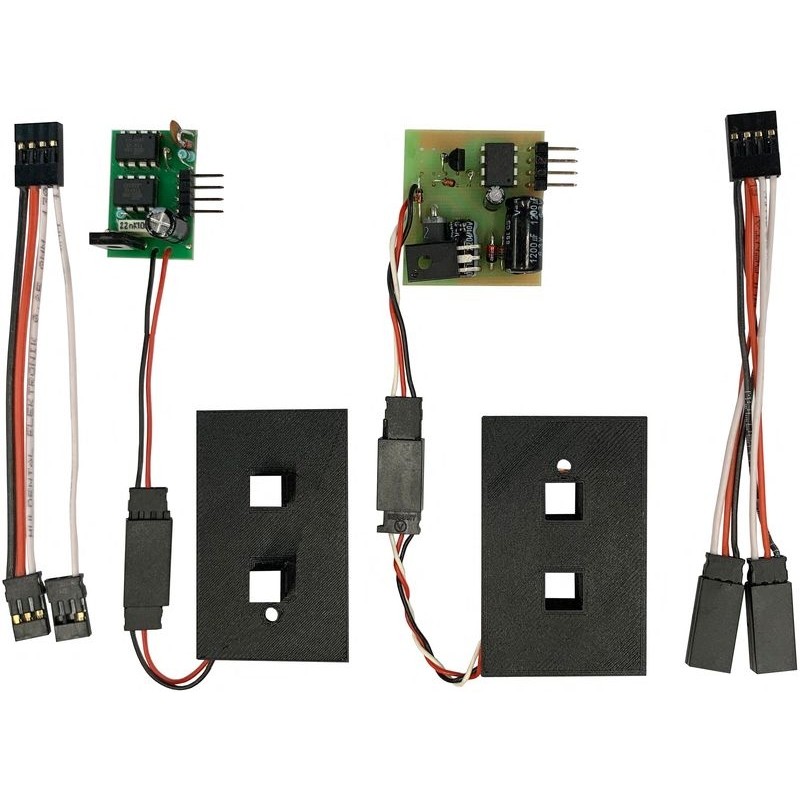

The module consists of 2 parts, one mounted in the fuselage and connected to 2 receiver channels and the other mounted in the wing, or another detachable part of the model.
The signals to the servos and the power supply are transferred contactlessly. So there are no long connections, contact problems or contact wear in the plugs.
Resistant to vibrations, backlash in combination with digital and analog signals, ensures one-way signal transmission from the receiver to the servo.
Regardless of the supply voltage of the receiver, it provides 5V voltage on the servo side with a current of 250 to 450mA, and if an expertblock module is connected to 3A
The system consumes about 165mA from the receiver when it is idle and requires a supply voltage in the range from 4.8 to 6V. The set weighs about 50g
The receiving module allows you to power 1 to 2 servos with a current consumption from 250 to 450mA and in the case of connecting an additional EXPERTBLOCK module up to 3A (the module is available as a separate article)
the important thing is that only 5 and 6V servos are supported. The manufacturer states that they can be standard servos with a momentum of 2 to 5 kg / cm.

Additional accessories available in our store:

• MULDENTAL POWERBLOCK MODULE (13003)

• MULDENTAL CONNECTION CABLE (13051)

• MULDENTAL CONNECTION CABLE (13052)

• MULDENTAL CONNECTION CABLE (13053)

More information can be found on the manufacturer's website.

And how it works, see here:
