MOD. MINI CUB 450 with gyroscope (106B01)

Mini Cub 450 with gyro system

-ideal model for beginners -

The Mini Cub 450 is a remote-controlled model airplane designed for beginner modelers. Constructed from EPP foam, which is resistant to damage, guaranteeing a long life for the model.

Features of the model:

• Ready to fly
• Built from EPP foam
• Built-in gyro system (6 axes)
• Two modes of autonomous takeoff
• Self-turning maneuver mode
• Aerobatic maneuver mode
• Secure propeller attachment system
• Drive gear
• 2.4GHz radio system

Required for flight:

• Transmitter power supply - AA type batteries x 4

The Mini Cub 450 is equipped with a 6-axis gyroscope, which makes it easy to learn to fly. The system has three modes:

• 0 - without stabilization
• 1 - partial stabilization
• 2 - full stabilization

The gyro system allows for automatic takeoff. The function is activated by pressing button 1, which is confirmed by a beep. The automatic takeoff occurs when the gas stick is moved to the maximum.

The gyroscopic system allows automatic execution of a barrel - as shown in the figure above and a loop. When flying in mode 2 of the gyro mode switch, after pressing the "Aerobatics" button once, there will be a beep several times. It indicates the activation of the function. The execution of the barrel is performed when the aileron stick is swung in the selected direction.

The execution of a loop follows the same procedure as above - after swinging the elevator stick in the selected direction.

The gyro system also allows you to automatically perform a 180st turn. The U-turn button is used for this. After its activation during level flight, the model will make a U-turn and move in the opposite direction.

The system of safe attachment of the propeller, protects the drive motor and control module from damage. When falling, the propeller detaches from the hub. Correct attachment of the propeller to the hub is confirmed by an audible click when the propeller is attached.

The drive gear system allows optimal use of the energy contained in the battery, resulting in longer flight time.

The airframe material is high-quality EPP foam. As you can see in the picture, it deforms - which protects the entire structure from damage during a fall. Large wheels facilitate takeoff and landing.

The tail wheel is coupled to the directional rudder. When taking off from a hard surface, this allows you to control the direction of the model.

The snap-fit design of the Mini Cub 450, eliminates the need for tools and adhesives. All airframe components are securely connected to each other and easy to assemble and disassemble.

Easy access to the control module in the fuselage compartment.

The Mini Cub 450 allows two methods of takeoff - by hand and from the runway.

The model's small size allows for hassle-free transportation without disassembly.

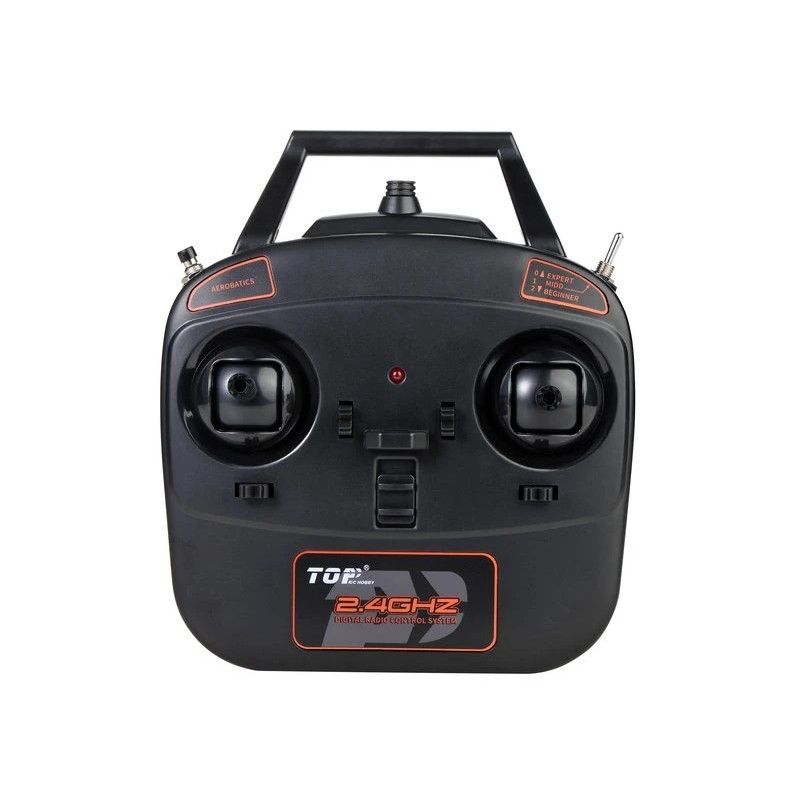

2.4 GHz transmitter with gyroscopic system.

Description:

• Throttle / Ruder - directional and motor control stick
• Elevator / Aileron - control stick for ailerons and altitude rudder
• Rudder Trimer - rudder trimmer
• Aileron Trimmer - aileron trimmer
• Elevator Trimmer - elevator rudder trimmer
• U-turn Switch - button to activate the turn function
• Aerobatics Button - automatic barrel and loop function button
• Top Gyro Switch - gyro mode switch
• LED Indicator - power light
• ON / OFF Switch - transmitter power switch

Technical specifications:

• span [mm]: 450
• length [mm]: 322
• flight weight [g]: 75
• flight time [min]: 12-15

*Follow the instruction manual included with the product (Manual: TU).
