MPX SPEED EL. FUNRAY (214334)

This ready-made, elegant electric powered sailplane will be perfect for both thermal flights and dynamic flights on the slope. As if that were not enough, it has excellent aerobatic qualities. All this is possible thanks to the optimal aerodynamics and a well-thought-out hybrid construction in which carbon composites, steel, aluminum, plastics and special ELAPOR® foams are used.

FUNRAY is characterized by a well-thought-out design that eliminates the current disadvantages of using foams as the basic material. Optimally selected elements stiffening the entire structure make the airframe maintain its geometry, and thus it is much more precise in flight. The designers took care of high ergonomics of operation by using quick connectors for the assembly of wings, horizontal stabilizer, cabin and electrical connections. In addition, all these connections are mechanically precise, repeatable and reliable in operation.

To power the drive unit, Multiplex recommends a LiPo 3S battery with a capacity of 3200mAh and current efficiency of 30C.

Introduced innovations in FUNRAY RR:

• Strong and stiff wing and horizontal stabilizer, thanks to the use of reinforcements on the leading edge and composite spars.
• Servo cable connectors mounted in wings and fuselage.
• Removable wings and horizontal stabilizer.
• Removable rudder.
• Very stiff M hull structure with full length composite reinforcements.
• 11 "x7" folding propeller.
• Very high quality decorative foil resistant to UV radiation, designed by "Mirco PECORARI"
• Damage-resistant model cabin.
• Possibility to use the transparent cabin option (# 1-00138).
• Strengthening all control surfaces with stainless steel pipes.

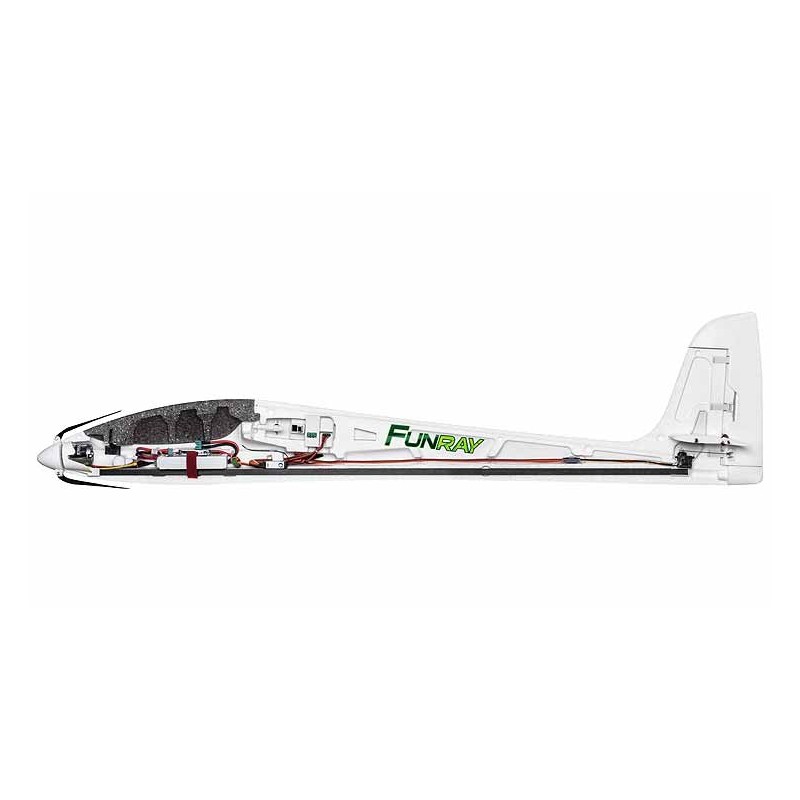

• Spacious hull interior for the convenience of mounting the propulsion package.

Technical data:

• wingspan [mm] : 2000
• flight mass (powered sailplane) [g] : 1790
• load area wings [g/dm²] : 45
• load area total [g/dm²] : 40
• R / C functions: rudder, elevator, ailerons, flaps, motor
• flight time [min] : 20 (3S / 3200mAh)

Set contains:

• Model in the BK version
• Propeller cap
• Installation and operating manual

Needed for flight:

• remote control apparatus: minimum 5 channels [aparatury R/C]
• drive motor - ROXXY C35-48-990KV recommended
• speed controller - recommended ROXXY BL 755 S-BEC
• 6 servos - Hitec HS-65HB recommended
• LiPo 11.1V / 3200mAh [pakiety napędowe]

More information and photos can be found on the manufacturer's website.
