ART SEAT ODYSSEY-ECL / 2700 mm ELEKTRO (0046)

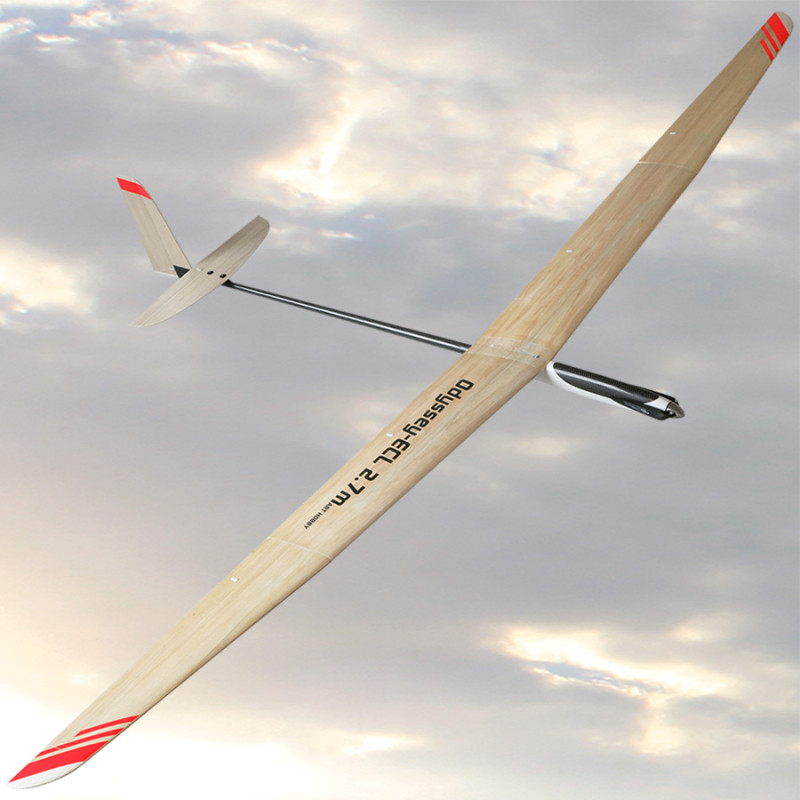

Odyssey-ECL - a glider with electric drive from the Polish company Art Hobby. The model, thanks to the right proportions and airfoil profile, has excellent flying properties, high speed and excellence even in very poor thermal conditions.

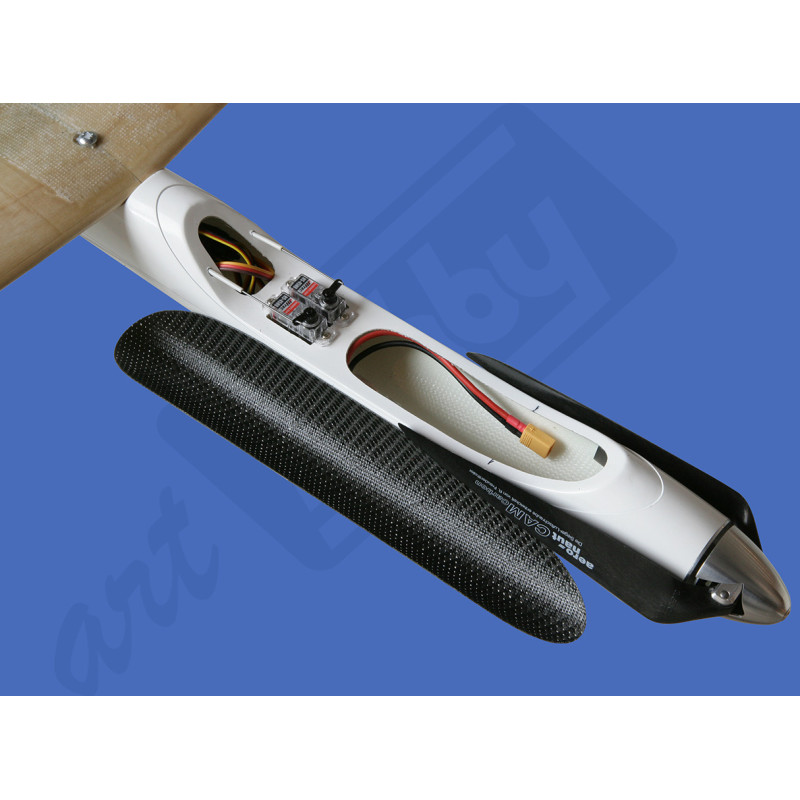

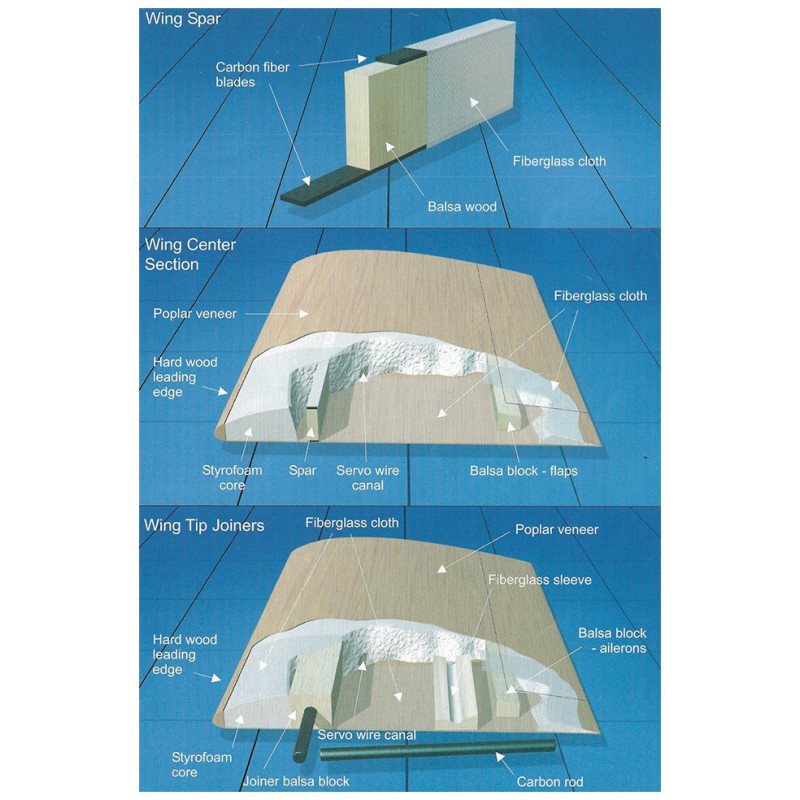

The fuselage is made of laminate, three-segment wings covered with veneer (ailerons / flaps or ailerons only version). The wing can be built with elevations depending on the preference of the model builder. Balsa and laminate T-type tailplane - removable. The model should be painted with cellulose varnish (dedicated by the manufacturer varnish - see TU).

The model is 90% ready to fly, to be finished and "armed" with RC accessories by yourself.

Important !

Before assembling and painting the model, read the instructions carefully, follow the manufacturer's recommendations !

Excellent model for flying in thermals, on the slope....

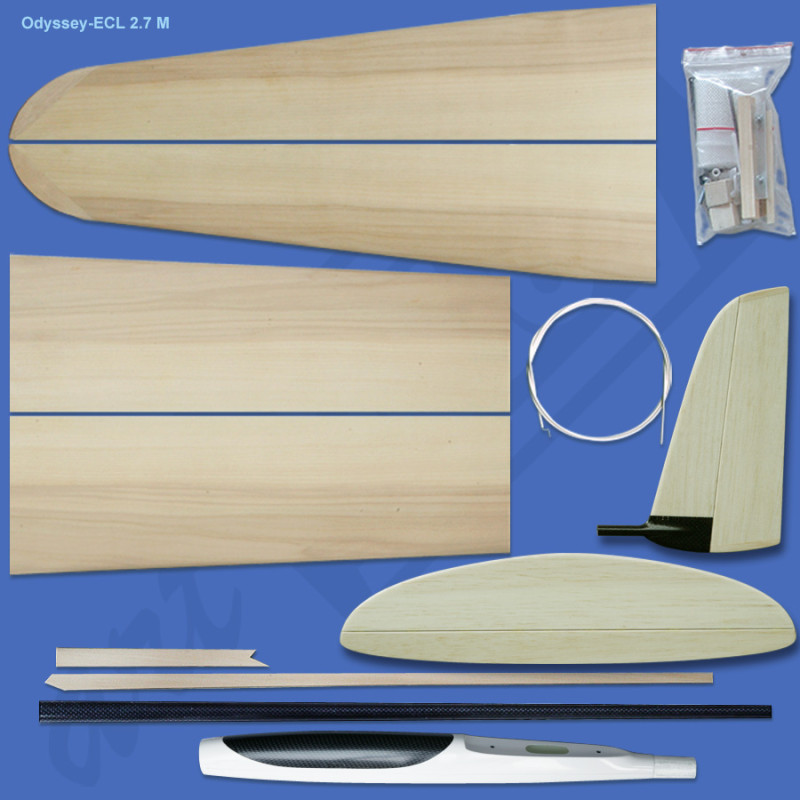

For the model are available (on request) all parts such as: wings, fuselage, tailplane, etc....

Technical data:

• span: 2700 mm
• length: 1455 mm
• wing area: 39.20 dm²
• wing profile: SD7080 modified
• model weight: 590 g
• flight weight: about 900 g

Recommended equipment:

• rC apparatus with receiver: 6 CH and above
• aileron servos x 2 (e.g. HS-65MG / HS-5065MG or similar)
• servos for flaps x 2 (e.g. HS-70MG / HS-5070MG or similar)
• servos for rudders x 2 (e.g. HS-45MG / HS-65HB or similar)
• motor, e.g. ART-1300
• speed controller: matched to the motor
• 35 mm cap
• 12x6.5 CAM propeller
• liPo battery 3S/850-1050 mAh
• servo covers x 4

*Follow the instruction manual included with the product and the legal regulations for flying RC models.
