SHAFT. ELK. SKY SURFER KIT red (J038045-KIT-PLUS)

SKY SURFER KIT PLUS
motor sailplane with electric drive

Technical data:

- wingspan [mm] : 1400
- length [mm] : 915
- bearing surface [dm²] : 26
- flight mass [g] : 650
- load area wings [g/dm²] : 25
- R / C functions: ailerons, elevator, rudder, motor

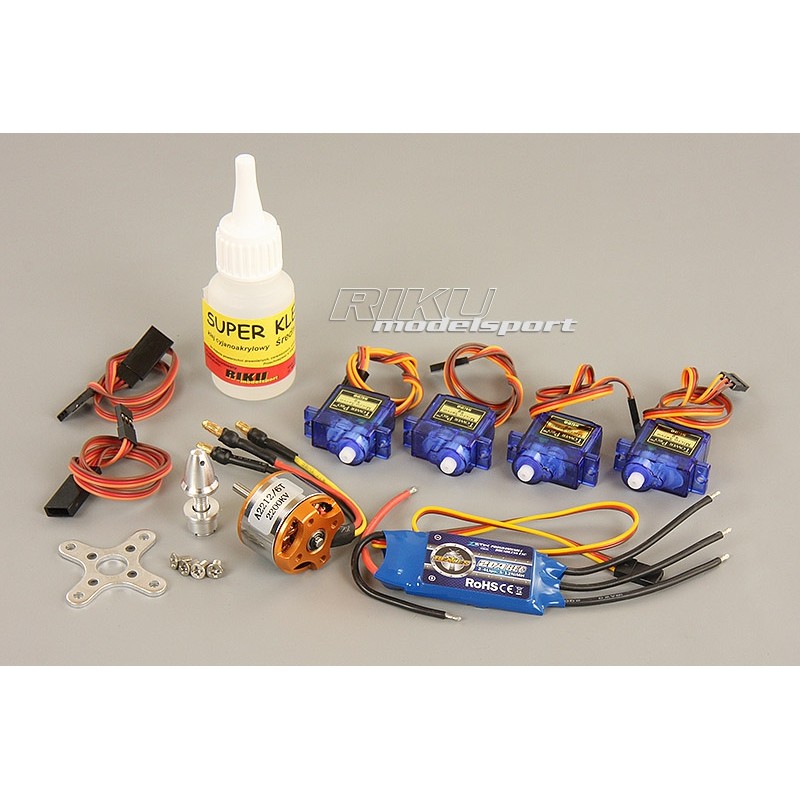

The KIT PLUS kit includes additional equipment:

- propeller bed and hub propeller: A2212 / 6T / 2200KV
- speed controller: Z TW BEATLES 20A BECK
- 6 "x 4" propeller with cap
- four servos with a set of levers: Tower Pro SG90
- two 34 cm long extension cords
- Y-cable
- cyanoacrylate adhesive

The most important feature of the SKY SURFER is very good flight properties. The model is very stable and easy to control. It is characterized by optimal gliding flight and stability of engine flight.
The propulsion located above the wing is safe during any hard landings in rough terrain.
The model is made in EPP technology and is intended for learning pilotage and recreational flights.

The SKY SURFER is powered by a push propeller above the wing.
This arrangement allows for easy installation of a front camera.

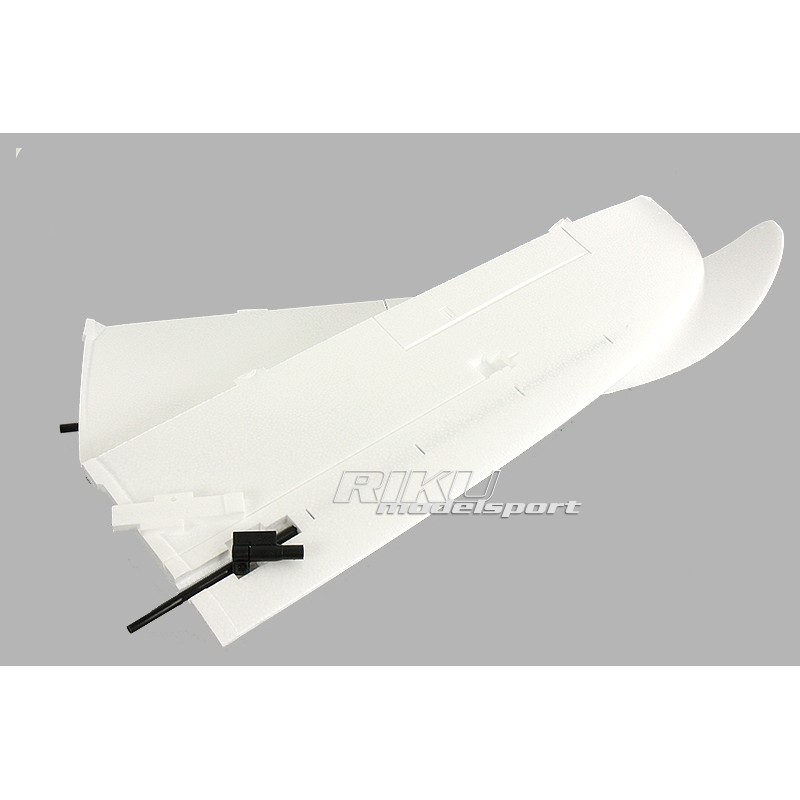

SKY SURFER has joined wings, which makes it very convenient to transport.

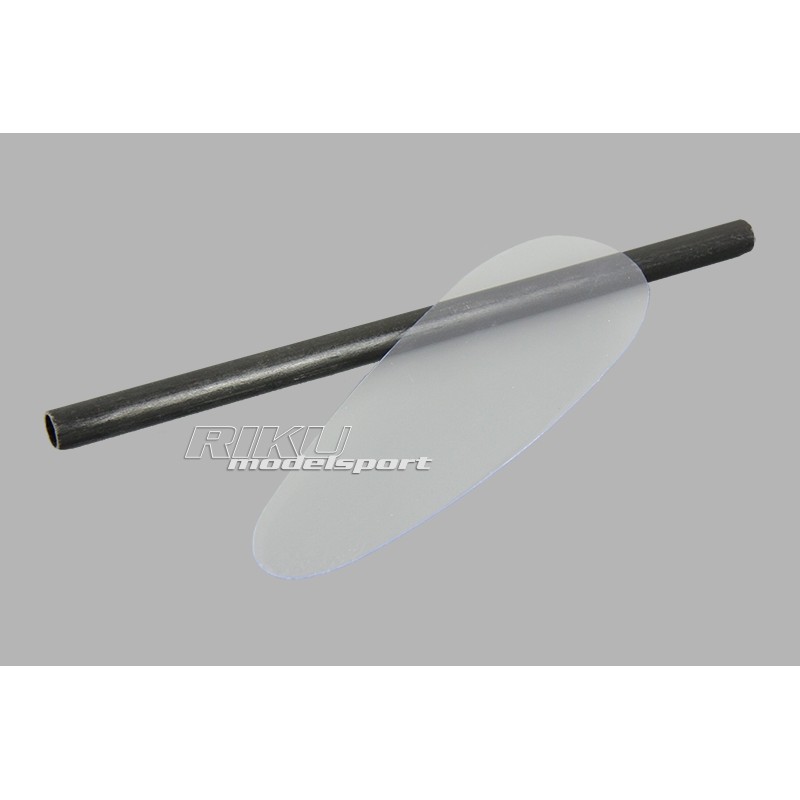

The wings are mounted to the fuselage through a connector in the form of a carbon tube, clamped in the leaf drawers with screws.
This prevents the wing halves from disconnecting accidentally.

Design improvements over the previous version:

- PVC hull skid added
- Reinforced wings
- Improved wing to fuselage attachment
- Air vents in the fuselage

Contents of the SKY SURFER KIT version:

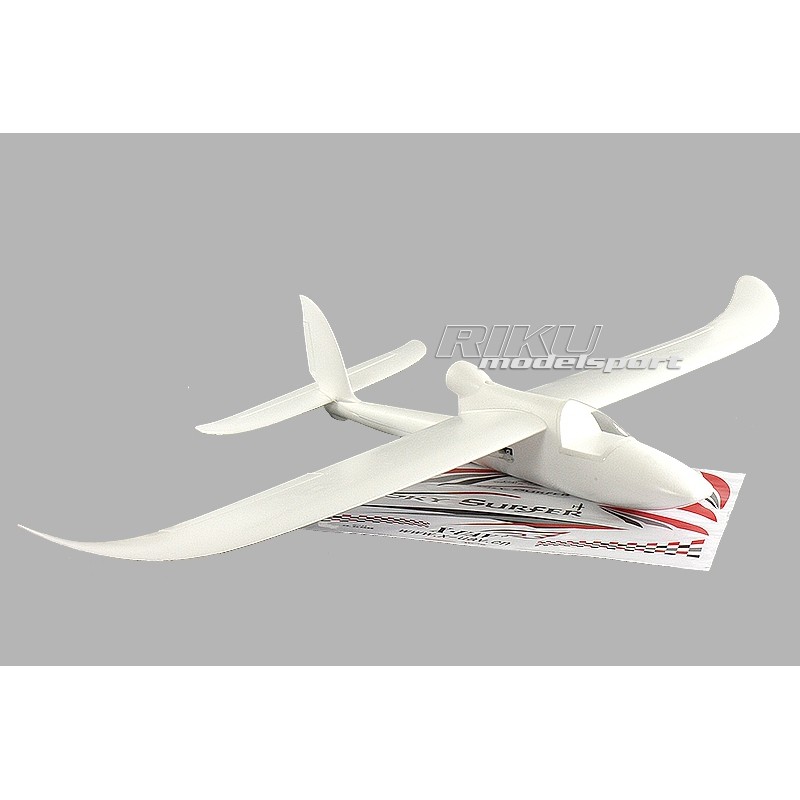

- Airframe elements (fuselage, wings, tail) - to be glued

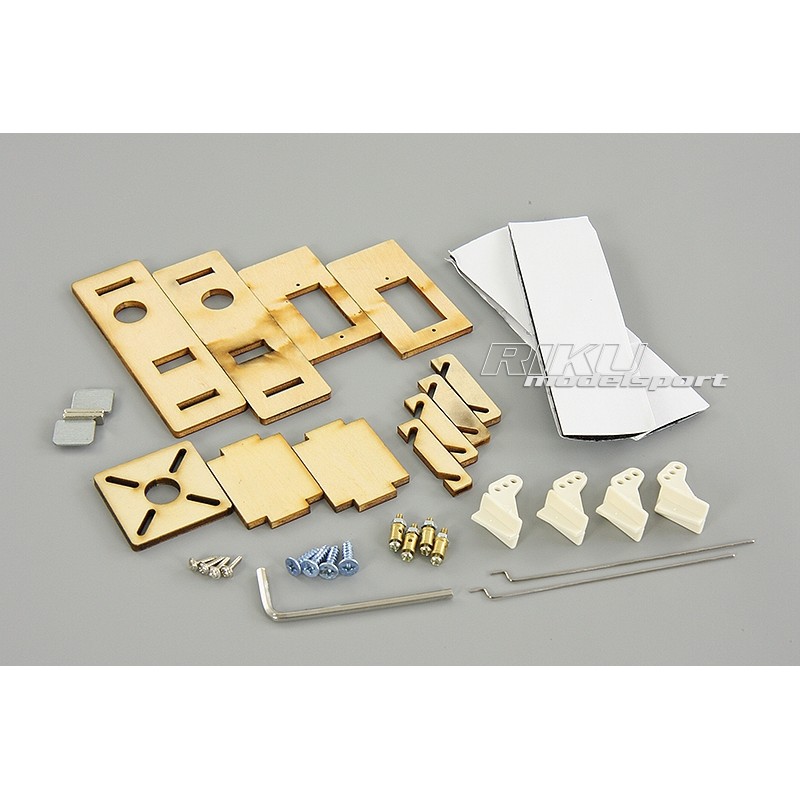

- Set of small parts

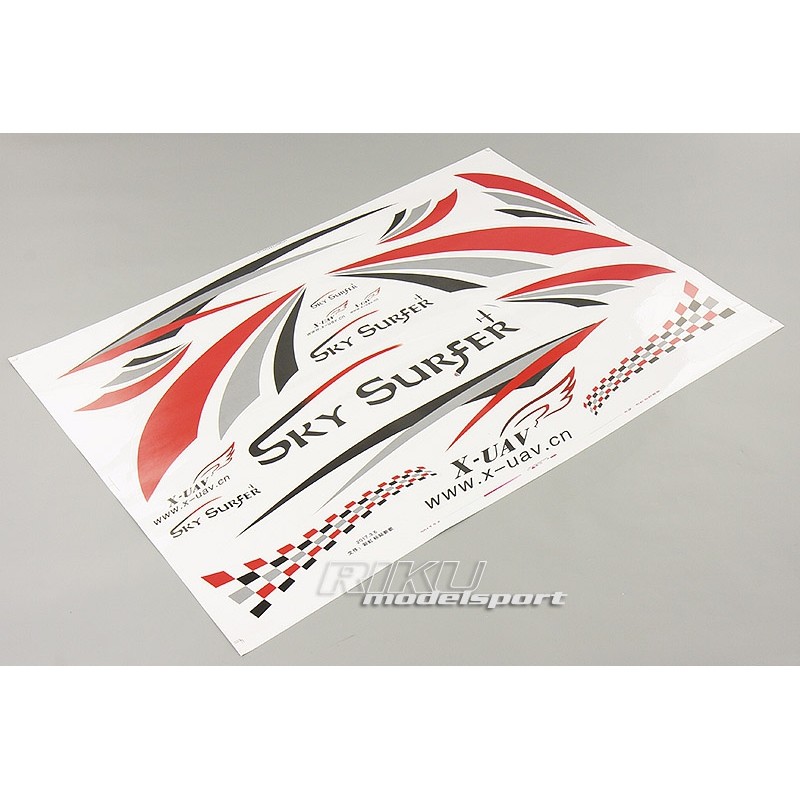

- A sheet of decorative stickers
- Installation instructions

Needed for flight:

- 4-channel apparatus (transmitter, receiver)
- LiPo 11.1V / ~ 1300mAh drive package
- drive package charger

Assembly and preparation of the model for flight.

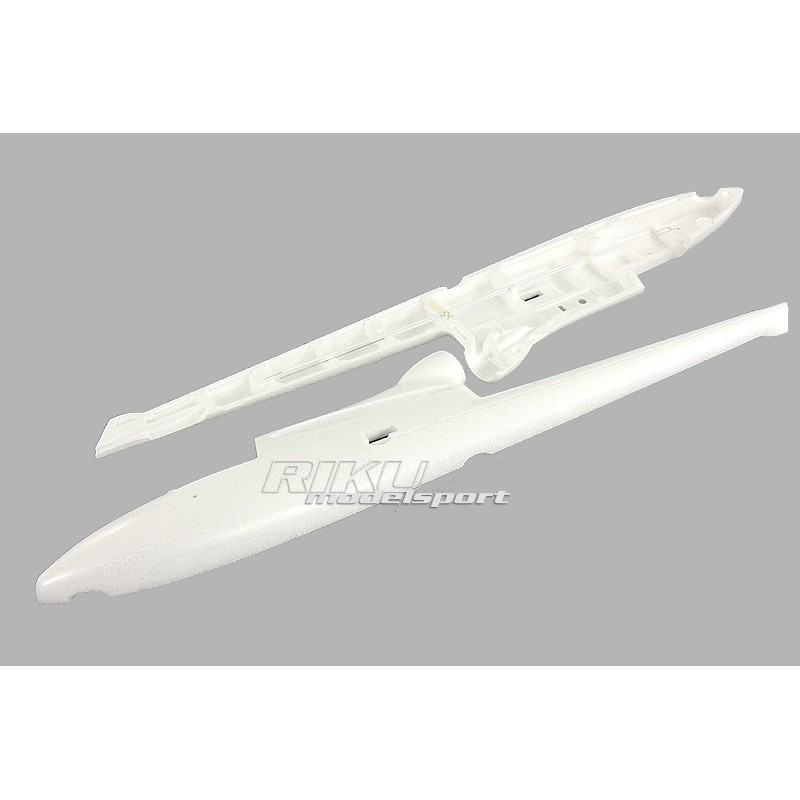

- Gluing the fuselage halves with mounted Bowdenes, servo shelves and the engine bed

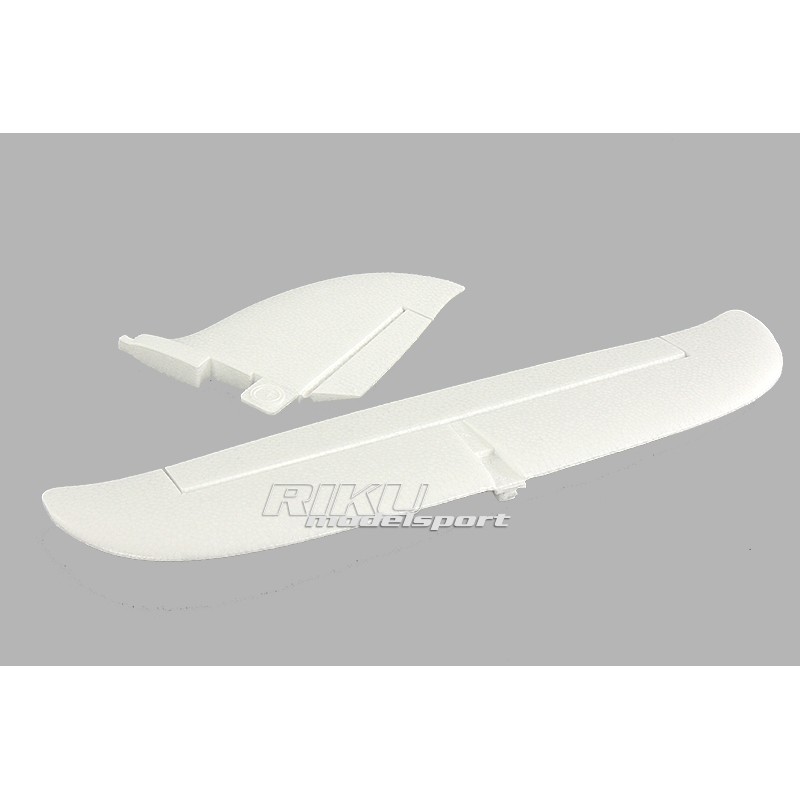

- Pasting the tailplane
- Pasting the vertical stabilizer
- Pasting of the leaf fixing
- Sticking the control levers (ailerons, elevator, rudder)
- Pasting the cabin magnets
- Mounting the aileron servos
- Connection of levers with pushers
- Pasting the cabin cover
- Covering with decorative foil
- Installing the R / C receiver
- Installing the drive package
- Installing the propeller

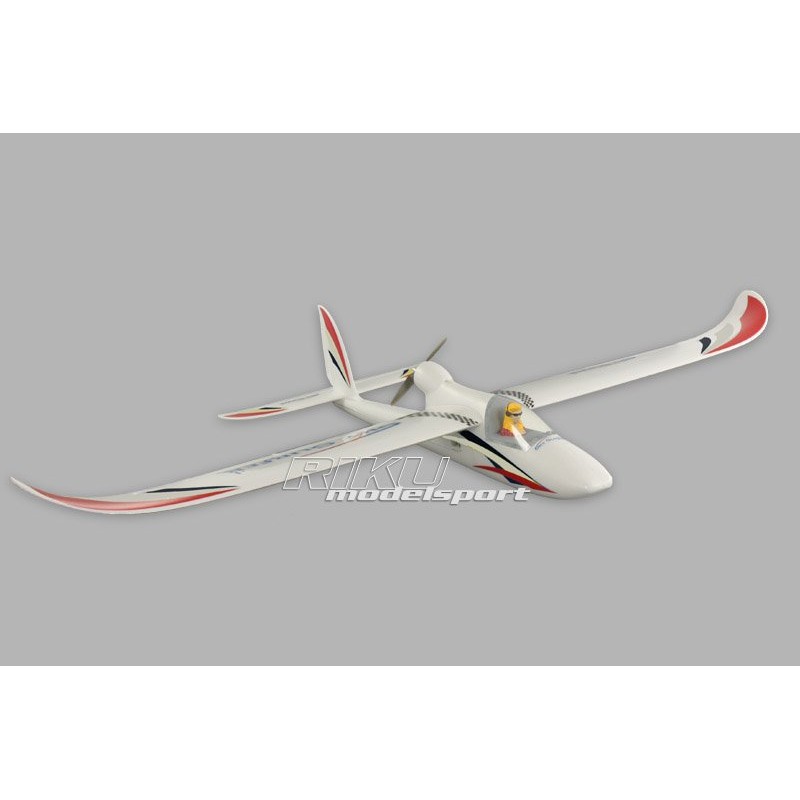

The set does not include the pilot figure shown in the photo.
