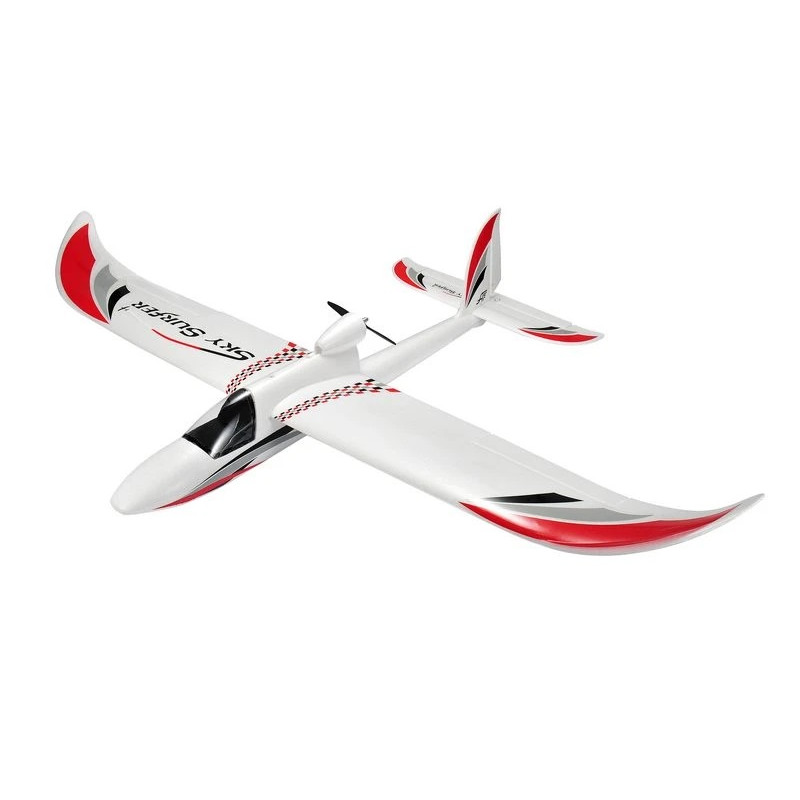

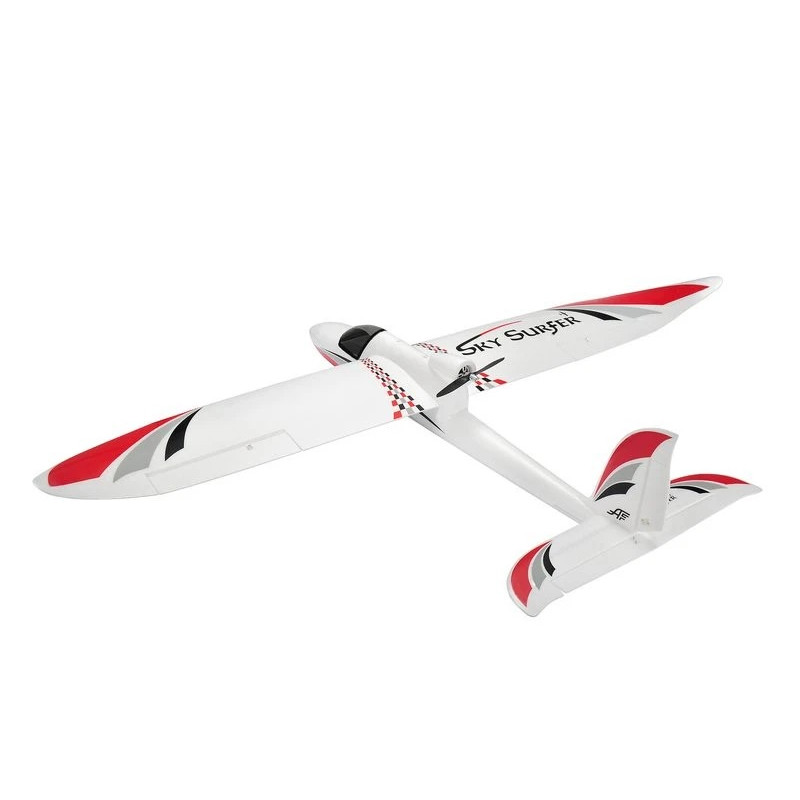

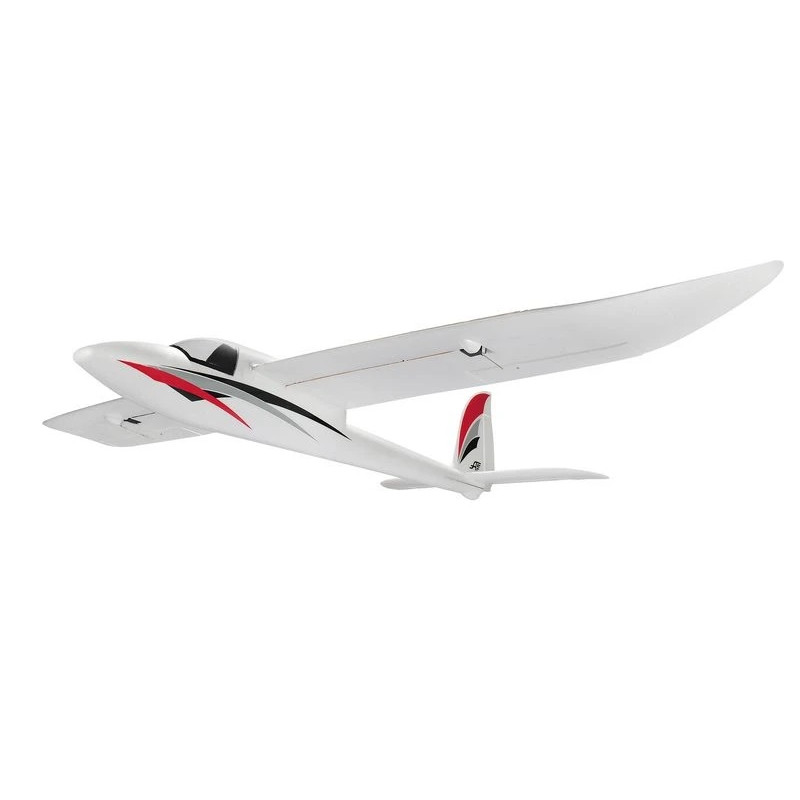

SKY SURFER KIT
motor glider with electric propulsion.
The most important feature of the SKY SURFER is its very good flying qualities. The model is very stable and at the same time easy to control. It is characterized by optimal gliding flight and stability of motorized flight.
Located above the wing, the propulsion system is safe during possible hard landings in adventurous terrain.
The model is made with EPP technology and is designed for flight instruction and recreational flying.
SKY SURFER is propelled by a push propeller, placed above the wing.
This arrangement allows for easy installation of a camera located at the front of the fuselage.

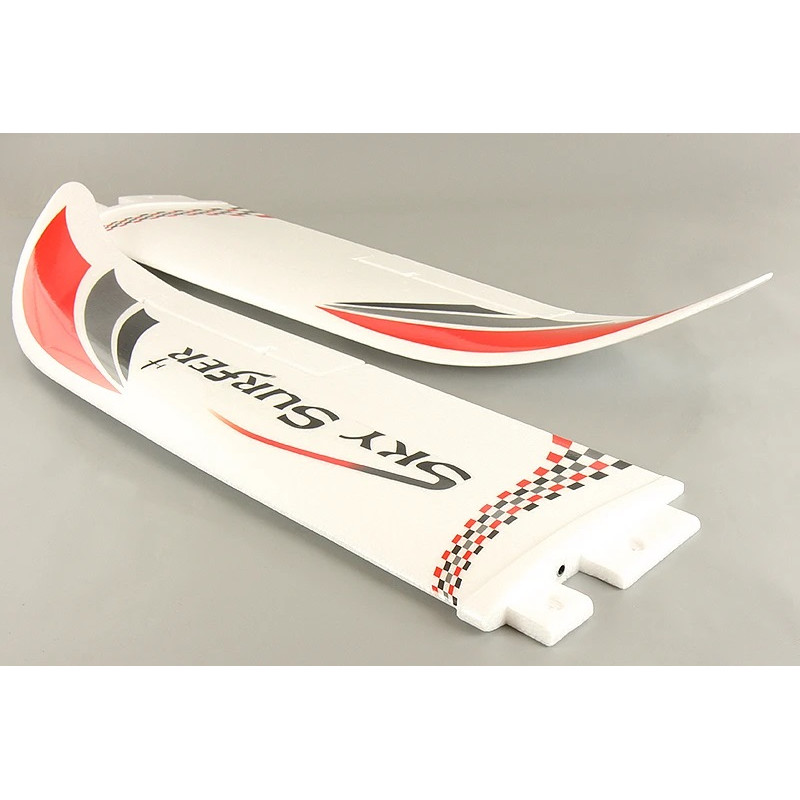

The SKY SURFER has jointed wings, which makes it very convenient to transport.
The wings are mounted to the fuselage through a connector in the form of a carbon tube, clamped in the wing drawers with screws.
This prevents accidental disconnection of the wing halves.
Technical data:
- span: 1400 mm
- length: 915 mm
- carrying area: 26 dm2
- flight weight: 650 g
- wing surface load: 25 g/dm2
- r/C functions: ailerons, altitude rudder, directional rudder, engine
Design improvements over previous version:
- Added PVC fuselage skid
- Reinforced wings
- Improved attachment of the wing to the fuselage
- Ventilation holes in the fuselage
- Elements of the airframe are already covered with decorative film
Contents of the SKY SURFER KIT version:

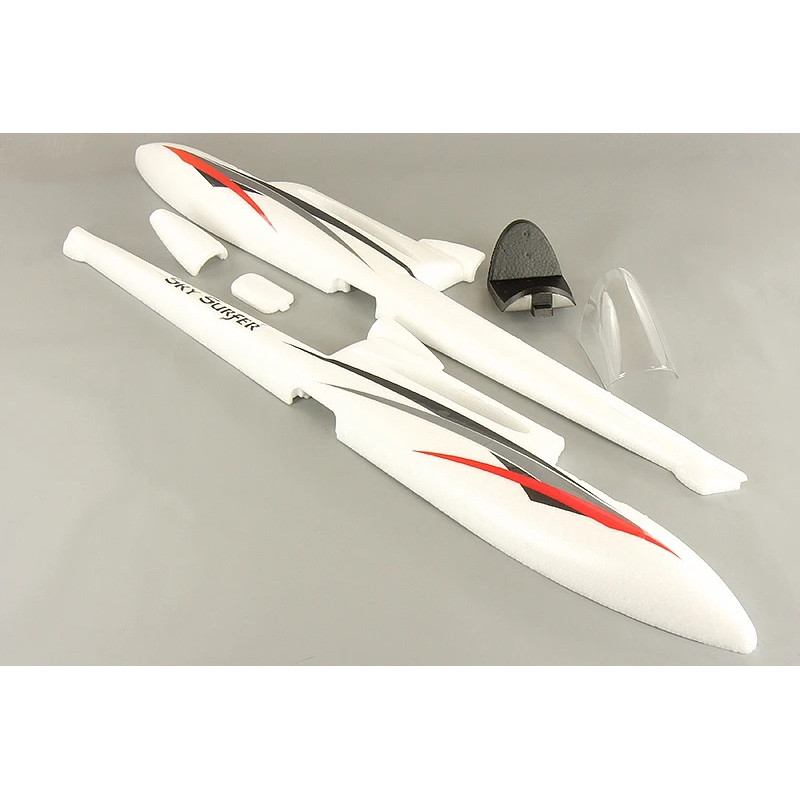

- Airframe elements (fuselage, wings, empennage) - to be glued together
- Set of small parts
- Assembly instructions
Required for flight:
- 4 channel apparatus (transmitter, receiver)
- 9g servos; 1.3-1.8kg/cm; 0.12s/60 x 4pcs
- brushless drive motor (GT22xx / GS C28xx)
- electronic speed controller
- liPo 11.1V / ~1300mAh drive pack
- drive package charger
- 6" x 4" drive propeller with cap
Assembling and preparing the model for flight:
- Gluing together the fuselage halves with bowdens, servo racks and engine bed installed
- Gluing in the horizontal stabilizer
- Gluing in the vertical stabilizer
- Gluing in the wing mounts
- Gluing in the rudder levers (ailerons, elevator, rudder)
- Gluing in the cabin magnets
- Installing the aileron servos
- Connecting the levers to the pushrods
- Gluing in the cabin cover
- Covering with decorative foil
- Installing the R/C receiver
- Installing the propulsion package
- Installing the drive propeller
Instructions: TU
