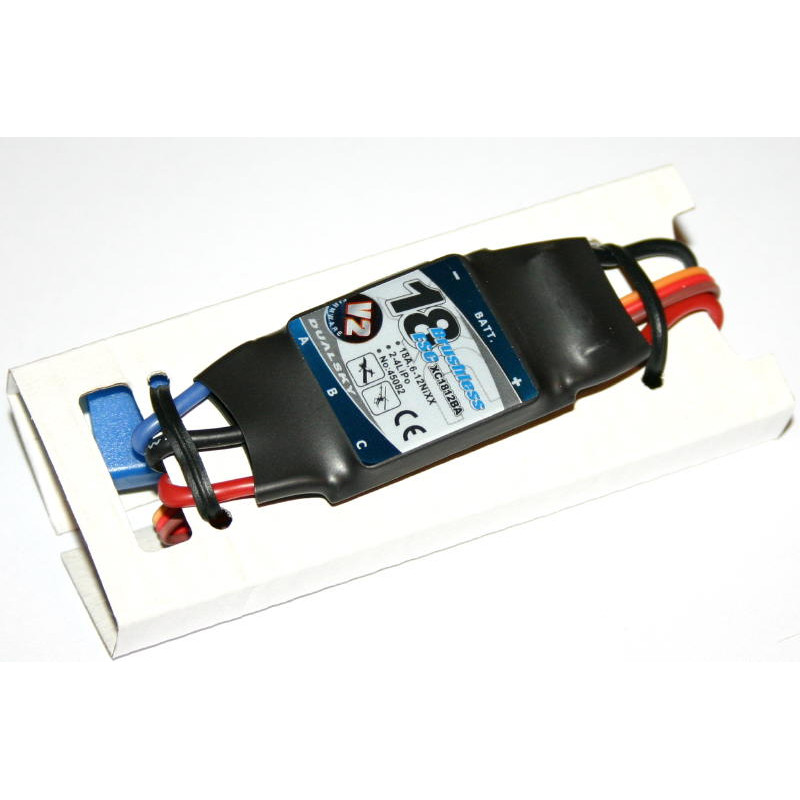

DUALSKY REG.RPM 18A V2

DUALSKY's 18A, 15V speed controller for 3-phase motors.

The regulator has firmware (software) version V.2 where:

• lINEAR BRAKE has been introduced
• the possibility of programming from a PC has been introduced; connection with a computer is possible thanks to the optional DUALSKY USB Link card
• the regulator on the package side is equipped with a DC3-A connector and on the motor side with DB3 connectors

Basic parameters:

• 18A continuous current (maximum momentary 25A)
• 2-4 Li-Ion/Li-pol cells (7.4-14.8V), 6-12 Ni-Cd/Ni-Mh cells (7.2-14.4V)
• BEC 5V/2A; (for 3 servos); for more servos it is recommended to use DUALSKY VR-3 voltage regulator
• motor operation: up to 210000 rpm (2-field), 70000 rpm (6-field) and 35000 rpm (12-field)
• programmable timing: normal, soft and super-soft
• programmable cut-off with setting: motor shutdown/power reduction
• programmable brake: on/off
• dimensions: 47x26x7 mm
• weight: 19 g
• power cables: 16AWG
• motor cables: 16AWG

*Follow the enclosed instruction manual.
