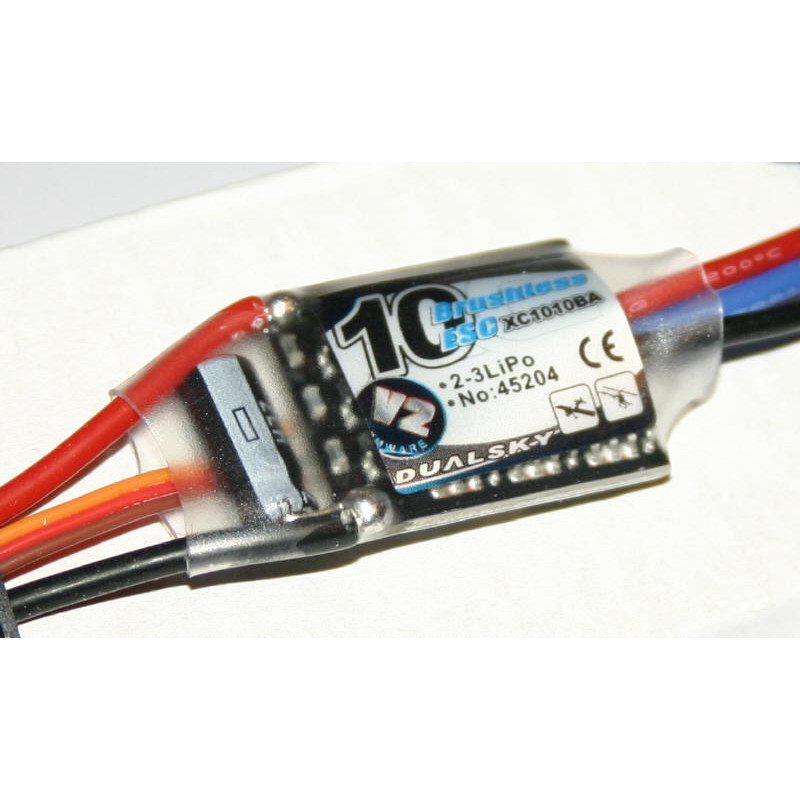

DUALSKY REG.ROTATION 10A V2

Speed controller 10A, 12V by DUALSKY for 3-phase motors

The regulator has firmware (software) version V.2 where:

• lINEAR BRAKE has been introduced
• the possibility of programming from a PC has been introduced; connection with a computer is possible thanks to the optional DUALSKY USB Link card

Basic features:

• 10A continuous current (maximum momentary 15A)
• 2-3 Li-Ion/Li-pol cells (7.4-11.1V), 5-10 Ni-Cd/Ni-Mh cells (6.0-12.0V)
• BEC 5V/1A; (for 3 micro servos); for more servos it is recommended to use DUALSKY VR-3 voltage regulator
• motor handling: up to 210000 rpm (2-field), 70000 rpm (6-field) and 35000 rpm (12-field)
• programmable timing: normal, soft and super-soft
• programmable cut-off with setting: motor shutdown/power reduction
• programmable brake: on/off
• dimensions: 28x18x6 mm
• weight: 7.3 g

*Follow the instruction manual included with the product.
