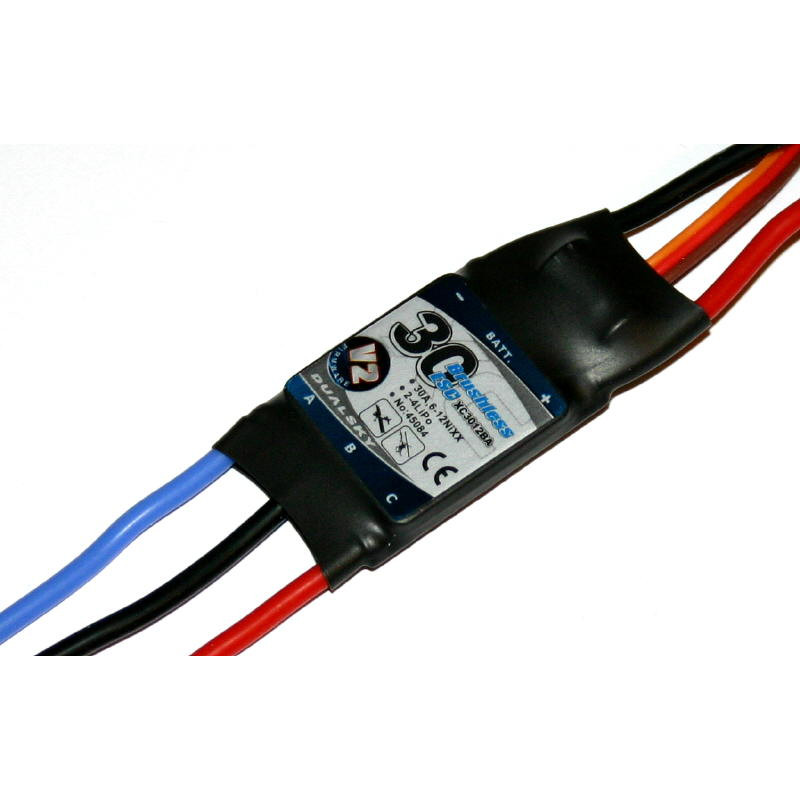

DUALSKY REG.RPM 30A V2

30A, 15V speed controller from DUALSKY for 3-phase motors.

The regulator has firmware (software) version V.2 where:

• lINEAR BRAKE has been introduced
• the possibility of programming from a PC has been introduced; connection with a computer is possible thanks to the optional DUALSKY USB Link card
• the regulator on the package side is equipped with a DC3-A connector and on the motor side with DB3 connectors

Basic parameters:

• 30A continuous current (maximum momentary 40A)
• 2-4 Li-Ion/Li-pol cells (7.4-14.8V), 6-12 Ni-Cd/Ni-Mh cells (7.2-14.4V)
• BEC 5V/2A; (for 3 servos); for more servos, it is recommended to use a voltage regulator such as Dualsky VR-3
• motor handling: up to 210000 rpm (2-field), 70000 rpm (6-field) and 35000 rpm (12-field)
• programmable timing: normal, soft and super-soft programmable cut-off with setting: motor shutdown/power reduction
• programmable brake: on/off
• dimensions: 47x26x7mm
• weight: 22g power cables: 16AWG
• cables to motor: 16AWG

*Follow the instruction manual included with the product.
