DUALSKY USB Link Card V2

USB Link V2 interface for programming and updating Dualsky Summit three-phase controllers.

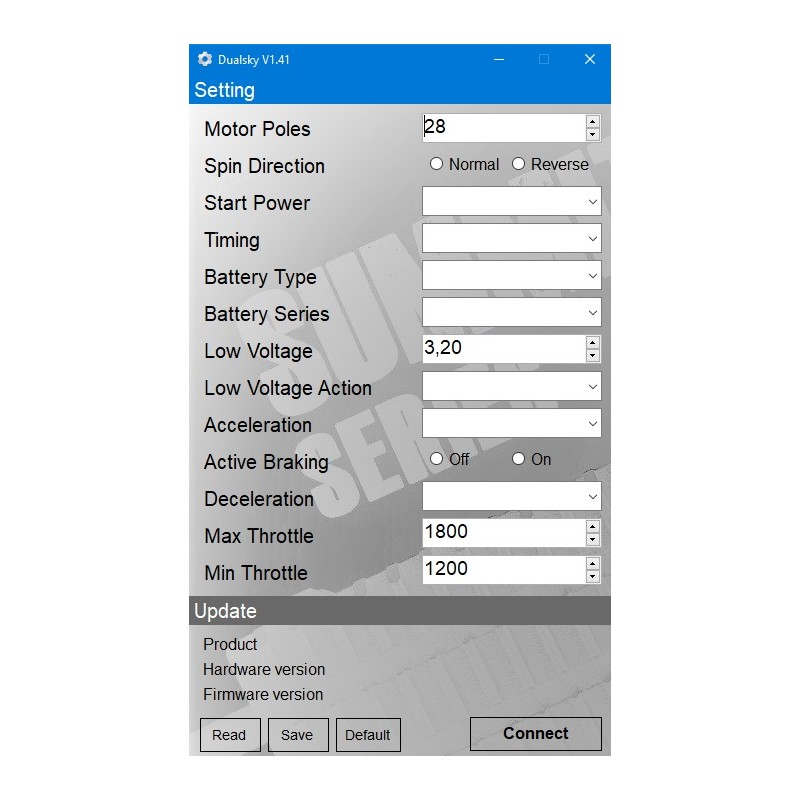

Programmable settings:

• number of fields
• direction of rotation
• starting power: from 1 (low) to 9 (high)
• timing in steps: AUTO, and 7, 9, 11, 13, 15, 17, 19, 21, 23
• pack type: Li-Po/Li-Po HV
• number of cells in the pack
• cutoff voltage
• type of cutoff: NONE or reduced rpm or full cutoff
• acceleration (gas response): 1 (low) to 9 (high)
• Active Braking: on/off
• reduce RPM: 1 (slow) to 9 (fast)
• maximum thrust
• minimum thrust

Download the software from: http://www.nastik.pl/dualsky-link-p-9077.html

Connects to a PC via a USB-C output. USB cable is not included.

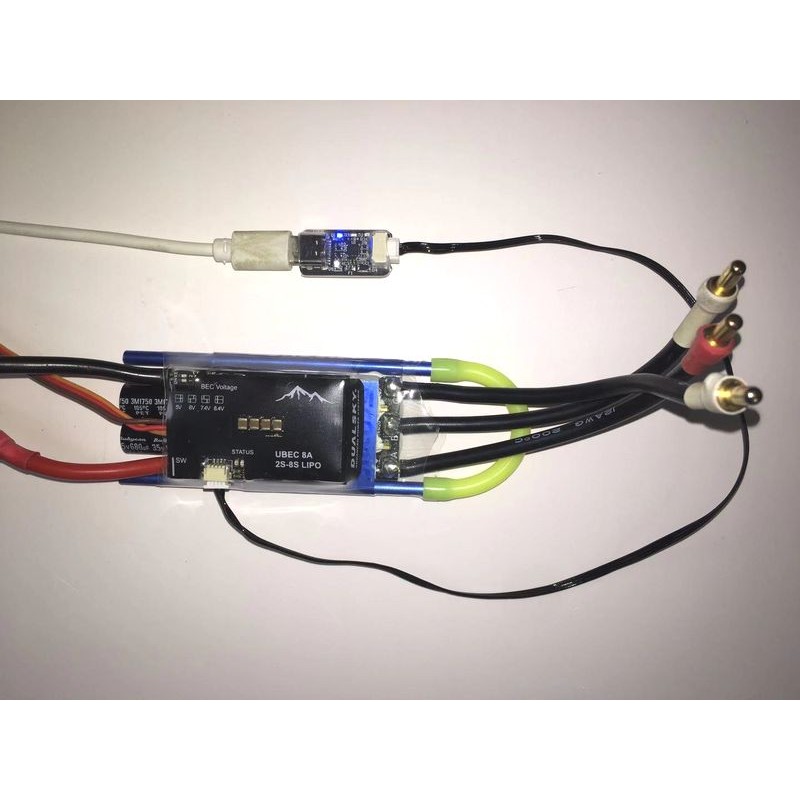

Two connection cables with Summit controller are supplied with the interface. Which one to use is determined by the set BEC voltage on the LOW or HIGH VOLTAGE regulator.

The BEC voltage is set to LOW or HIGH VOLTAGE
