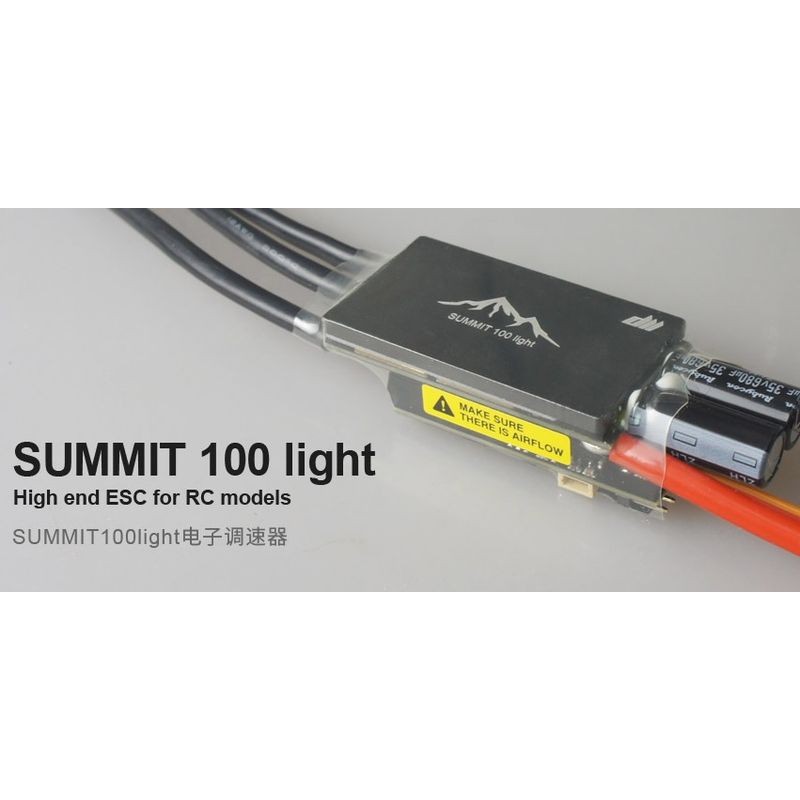

DUALSKY 100A SUMMIT LIGHT SPEED ADJUST

Top-class 100A speed controller with an integrated powerful 8A BEC with adjustable output voltage in the range of 5-8.4V. The LIGHT version has a reduced weight of 91g. Dedicated to 110E 3D / freestyle and F3A class models as well as UAV models.

Additional Features:

• 32-bit ARM processor, engine support up to 300,000 rpm.
• automatic programming or individual via PC software (communication via Dualsky USB Link V2 programmer)
• Controller Friendly
• Energy Recovery
• LED indicator
• linear, smooth gas regulation in the entire range of movement of the stick
• the ability to calibrate the gas control range for full compatibility with each transmitter
• FSS-4 switch
• extCAP capacitor 10V 5600uF
• temperature protection
• voltage protection

Basic parameters:

• maximum continuous current 100 A (up to 2500 W)
• maximum instantaneous current 130 A
• 2-8 Li-pol cells (7.4-29.6 V)
• internal resistance: 1.2 mOhm
• BEC type UBEC with continuous current efficiency of 8A, adjustable with DIP switches in the range: 5V, 6V, 7.4V 8.4V
• engine support: Dualsky GA1500, GA2000, GA3000, the whole family of EA, ECO and HD engines
• control of PWM signals up to 450Hz
• timing: autmatic
• brake: YES, programmable
• dimensions: 78 x 30 x 17.5 mm
• weight: 91g
• power cables: 12AWG, length 220mm
• motor cables: 12AWG, length 100mm, DB4 female connectors
• 300mm long signal cable with JR plug
