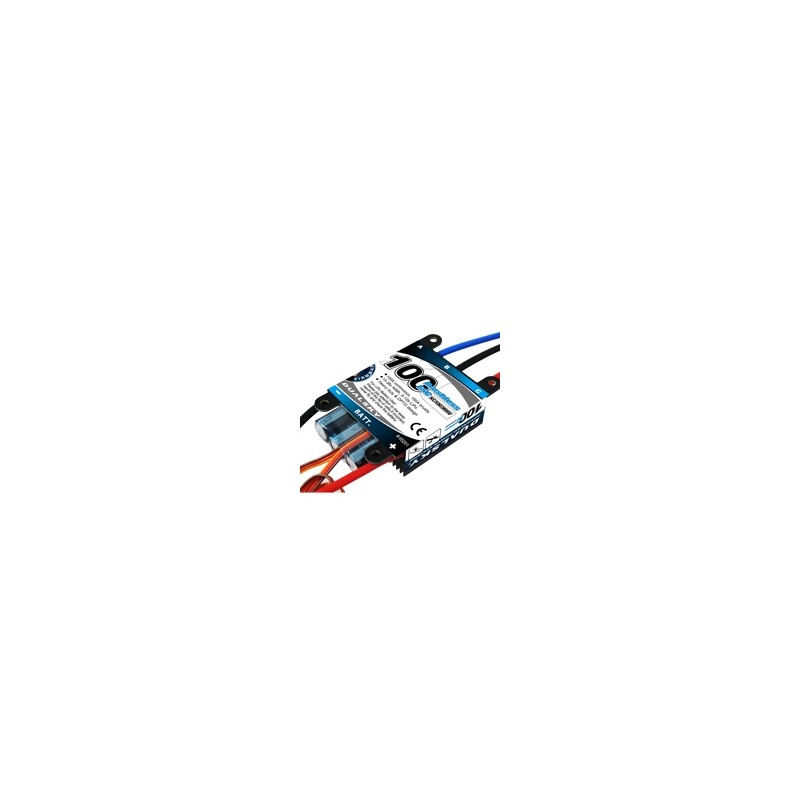

DUALSKY 100A V2 HIGH VOLTAGE

DUALSKY 100A, 44V speed controller for 3-phase motors.

The controller has the firmware (software) in version V.2 where:

• LINEAR BRAKE was introduced
• the possibility of programming from a PC was introduced; connection with a computer is possible thanks to the optional DUALSKY USB Link card
• field programming possible with Dualsky ProgCARD
• The controller from the package side is equipped with a DC3-A connector and from the motor side with DB4 connectors (gold 4mm sockets)
• OPTO isolation of the power section from the control section - prevents interference
• a set of protections: against low voltage, overheating, cut-off when signal loss
• linear, smooth gas regulation in the entire range of movement of the stick
• 14ms (normal mode) and 7ms (high speed) control signals support
• the ability to calibrate the gas control range for full compatibility with each transmitter

Basic Features:

• maximum continuous current 100 A (3780 W)
• maximum instantaneous current 120 A (4896 W)
• 5-12 cells Li-Ion / Li-pol (18.5-44.4 V), 15-36 cells Ni-Cd / Ni-MH (18-43.2 V)
• internal resistance: 0.0023 Ohm
• BEC - NONE (use DUALSKY VR-3 voltage regulator (Eng.). [PDF, 32kB])
• engine support: up to 210,000 rpm (2-pole), 70,000 rpm (6-pole) and 35,000 rpm (12-pole)
• programmable timing: normal, soft and super-soft
• programmable cut-off with the setting: engine shutdown / power reduction
• programmable cut-off voltage (e.g. 2.5 / 2.75 / 3.0 V / cell)
• programmed governor mode: enabled / disabled
• programmed type of cells: Li-xxx / Ni-xx
• programmable brake: on / off
• dimensions: 90x55x20 mm
• weight: 140g
• power cables: 12AWG, DC3 connector
• motor cables: 12AWG, DB4 connectors

  User manual of speed governors for DUALSKY brushless motors (Eng.). [JPG, 269kB]
  User manual for speed governors for DUALSKY brushless motors (translated by Nastik). [PDF]
