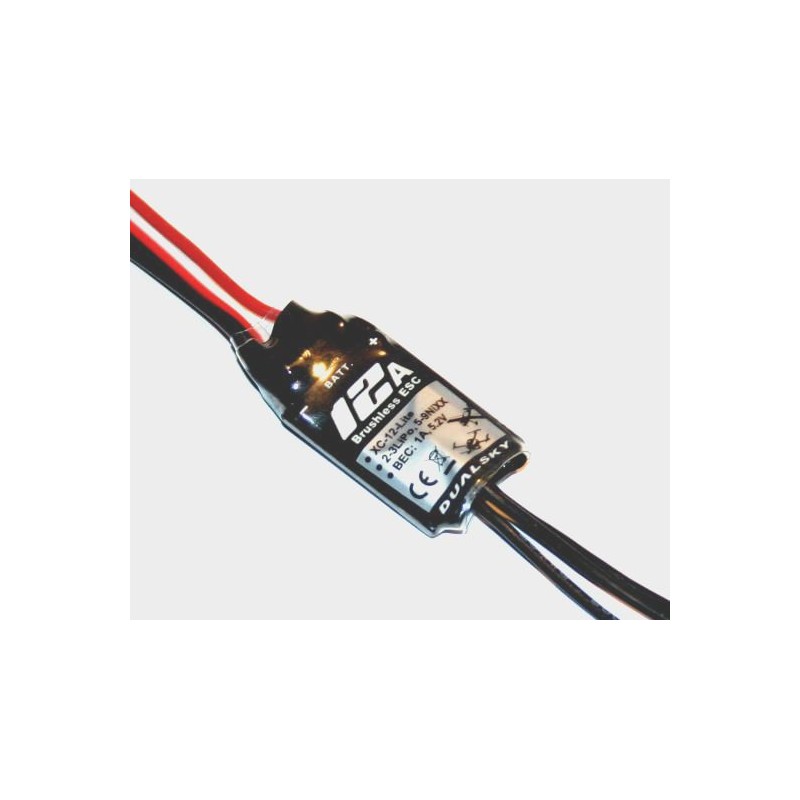

DUALSKY REG.SPEED 12A XC-12 LITE

Lite series 12A speed regulator, very wallet-friendly but superior in quality and features to low-budget regulators from other manufacturers. In the development of these regulators, user feedback and expectations were taken into account, so that very good and reliable Dualsky solutions are now available to a wider range of customers.

Because of the high precision of power control recommended for 3D models and smaller multicopters.

Basic parameters:

• continuous current 12A
• momentary current
• 2-3 Li-Ion/Li-pol cells (7.4-11.1V)
• BEC 5.2V/1A linear
• programmable timing: normal, soft
• programmable power supply type: Ni-xx/Li-xxx
• programmable cut-off with setting: motor shutdown/power reduction
• programmable cut-off voltage: low/middle/high
• programmable brake: on/off
• governor mode
• possibility to program from the transmitter (gas stick) or using the Dualsky V2 programming card
• supports signals up to 433MHz
• dimensions: 35x15x5mm
• weight: 8g (with cables)
• length of signal cable: 18 cm
• wire diameter: 20AWG
• regulator is not equipped with current connectors

Instruction manual for DUALSKY brushless motor speed controllers (English). [JPG, 269kB]
Instruction manual for DUALSKY brushless motor speed controllers (Nastik translation). [PDF]
