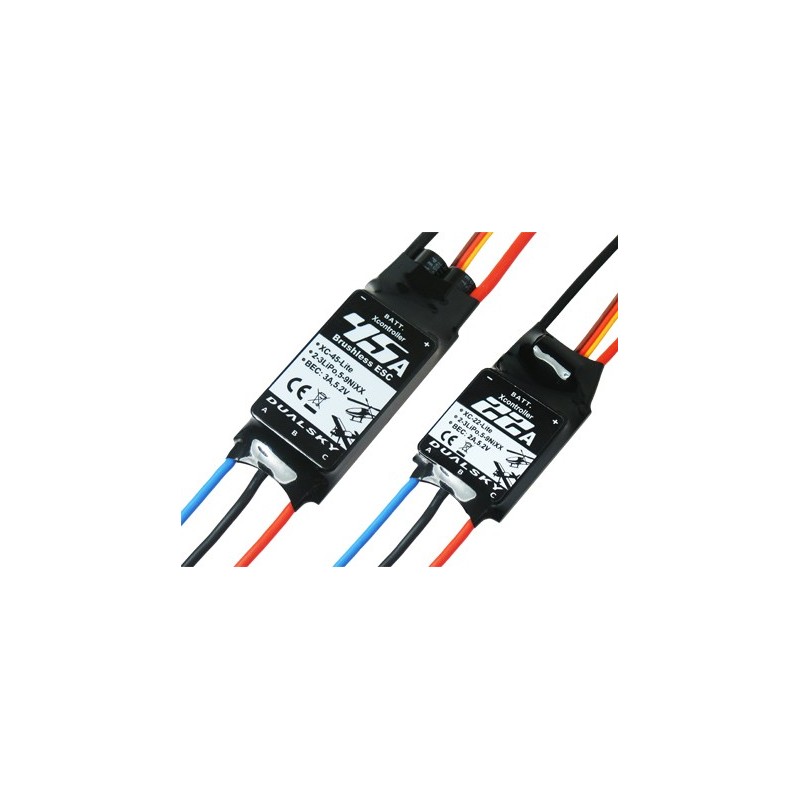

DUALSKY REG.SPEED 22A XC-22 LITE

Lite series 22A speed controller, very wallet-friendly but superior in quality and features to low-budget controllers from other manufacturers. In the development of these regulators took into account the feedback and expectations of users, so that very good and reliable Dualsky solutions are now available to a wider range of customers.

Because of the high precision of power control recommended for 3D models.

Basic parameters:

• continuous current 22A (maximum power 244W)
• momentary current 30A (maximum instantaneous power 333W)
• 2-3 Li-Ion/Li-pol cells (7.4-11.1V), 5-9 Ni-Cd/Ni-Mh cells (6.0-10.8V)
• BEC 5.2V/2A; (for 3-4 micro-servers); for more servos, it is recommended to use DUALSKY VR-3 voltage regulator (English). [PDF, 32kB]
• motor support: up to 210000 rpm (2-field), 70000 rpm (6-field) and 35000 rpm. (12-field)
• programmable timing: normal, soft
• programmable power supply type: Ni-xx/Li-xxx
• programmable cut-off with setting: motor shutdown/power reduction
• programmable cut-off voltage: low/middle/high
• programmable brake: on/off
• governor mode
• possible to program from the transmitter (gas stick) or with the Dualsky V2 programming card
• purposedestination: 450-class aircraft models, 350g 3D aerobatics, sport aircraft up to 600g
• internal resistance: 0.0082 Ohms
• dimensions: 47x26x7 mm
• weight: 22 g (with cables)
• length of signal cable: 18 cm
• the regulator is not equipped with connectors, we recommend using 3.5mm DB3 or XT60 connectors

Instruction manual in Polish:

• Instruction manual for DUALSKY brushless motor speed controllers (Nastik translation). [PDF]
