Dualsky engines

DUALSKY ENGINE GA 800.15 MkII 810kv / 770W

€64.88
13-0604
Dualsky
In stock

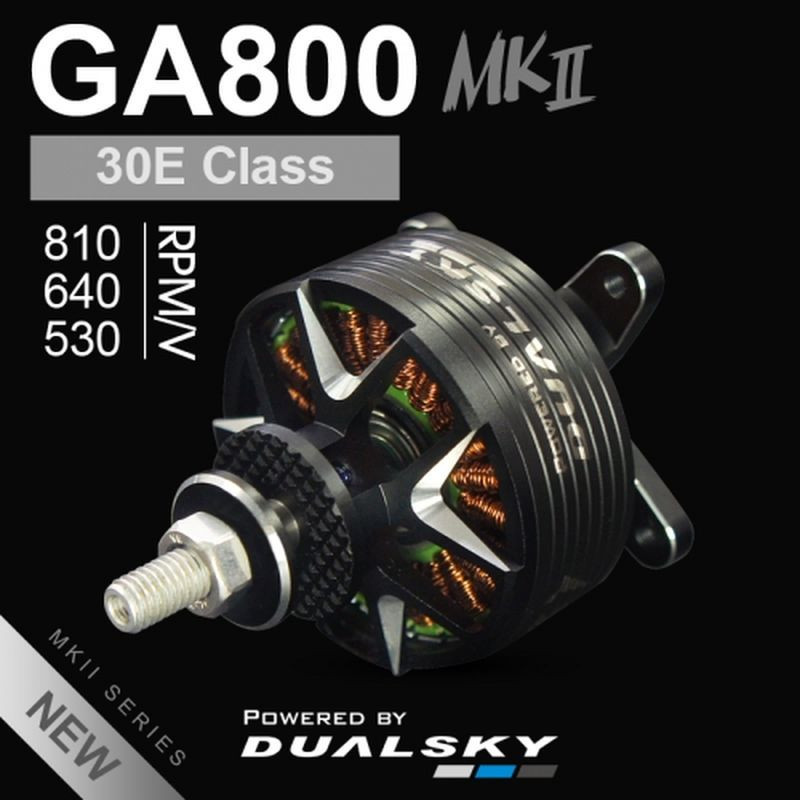

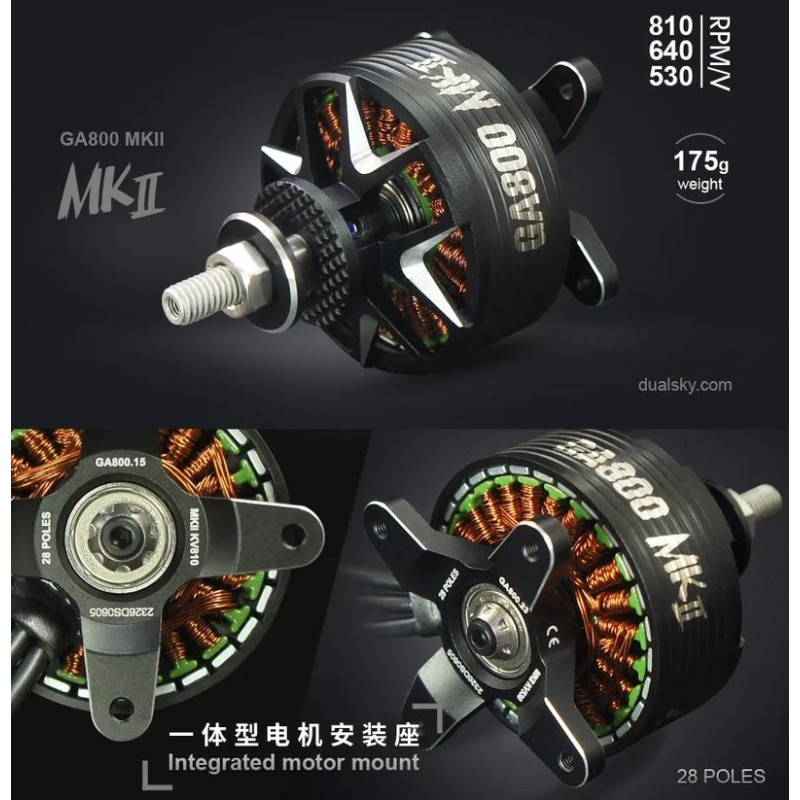

Dualsky's top line of electric motors. The GA800.19 MkII is designed for 30E/40E F3A and F2B class models weighing up to 2.1kg or 3D aerobatic models weighing up to 1.5 to 1.7kg.

Basic data:

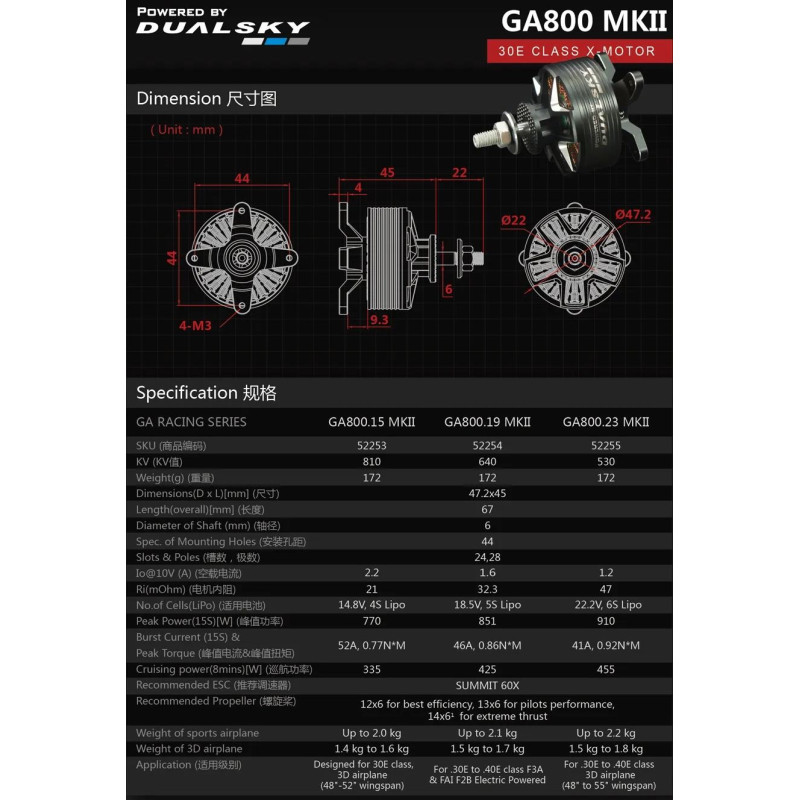

  • dimensions: diameter: 47.2mm, motor length: 45mm, total length including bed: 67mm
  • axle diameter: 6 mm
  • mounting screw spacing: 44 mm
  • power supply: 4 Li-pol cells (14.8V)
  • weight: 172 g
  • KV: 810 rpm
  • recommended propellers: 12×6 (highest efficiency), 13×6 (optimum performance), 14×6 (maximum thrust)
  • continuous power (8 minutes): 355W
  • maximum power (15 seconds): 770W
  • maximum current (15 seconds): 52A
  • no-load current consumption (10V): 2.2A
  • internal resistance: 21 mOhm

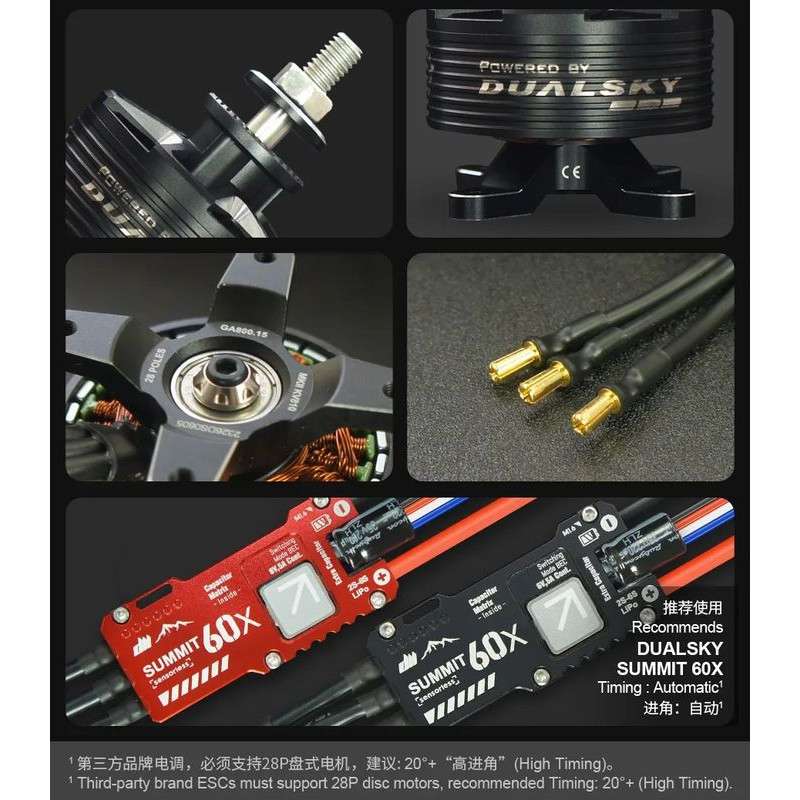

  • recommended regulator: 50-60A e.g. Dualsky SUMMIT 60X
  • application: aircraft models with a wingspan of 48-52″, 30E and 40E F3A and F2B classes weighing up to 2kg and 3D aerobatics up to 1.6kg
  • included: motor, gold DB3 3.5mm connectors and heat shrink tubing

*Follow the instructions included with the product.
