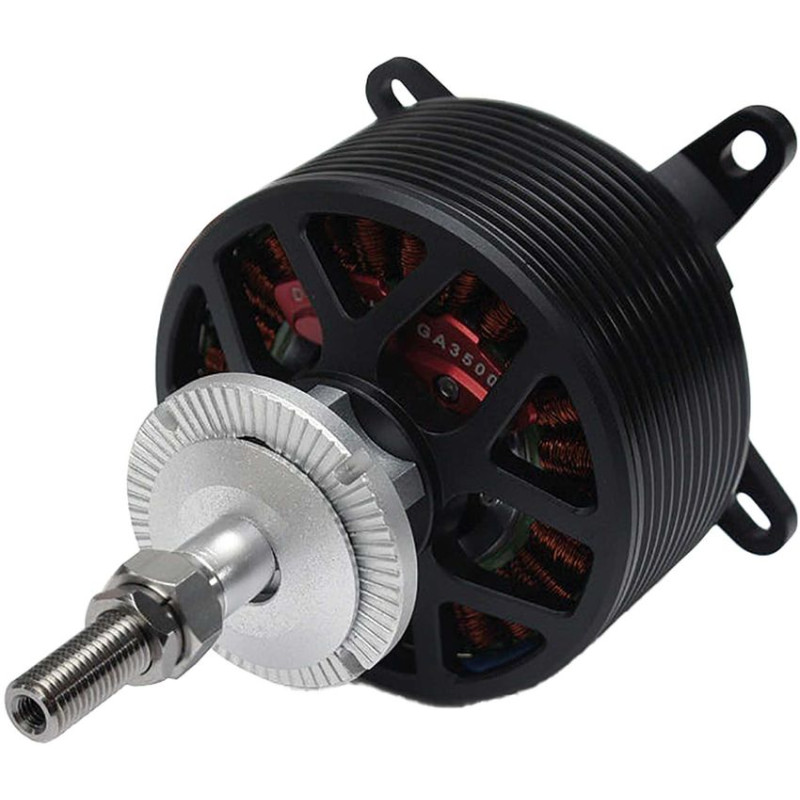

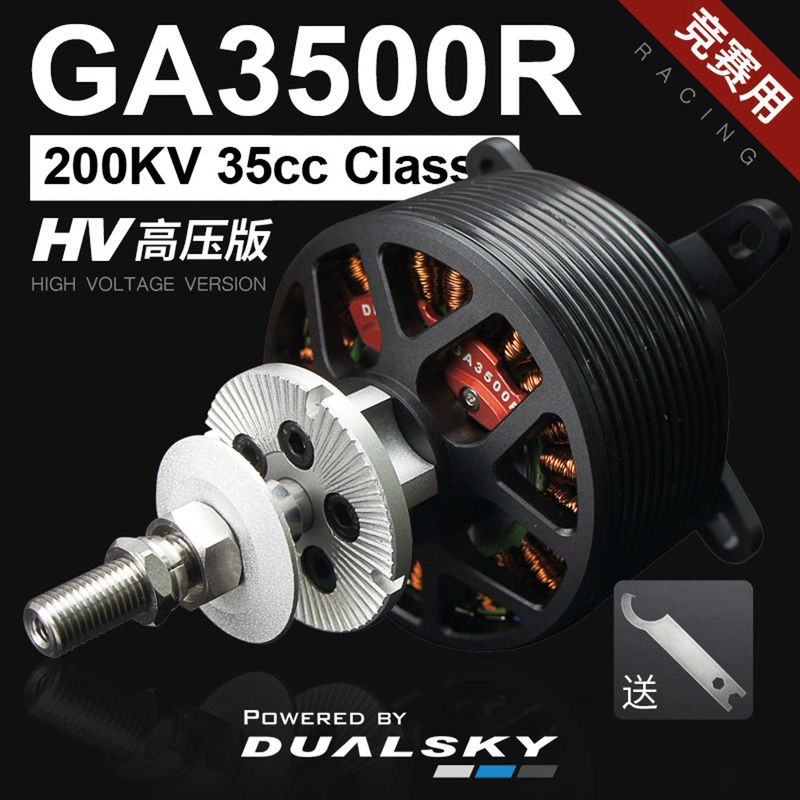

Dualsky's top line of electric motors designed for large models. GA3500R Racing Edition is an upgraded motor based on the standard GA Series motor line designed for 170E class models , 74-78″ span and up to 12kg weight or 3D aerobatic models up to 5.5kg. Replacement for 35cc gasoline engines

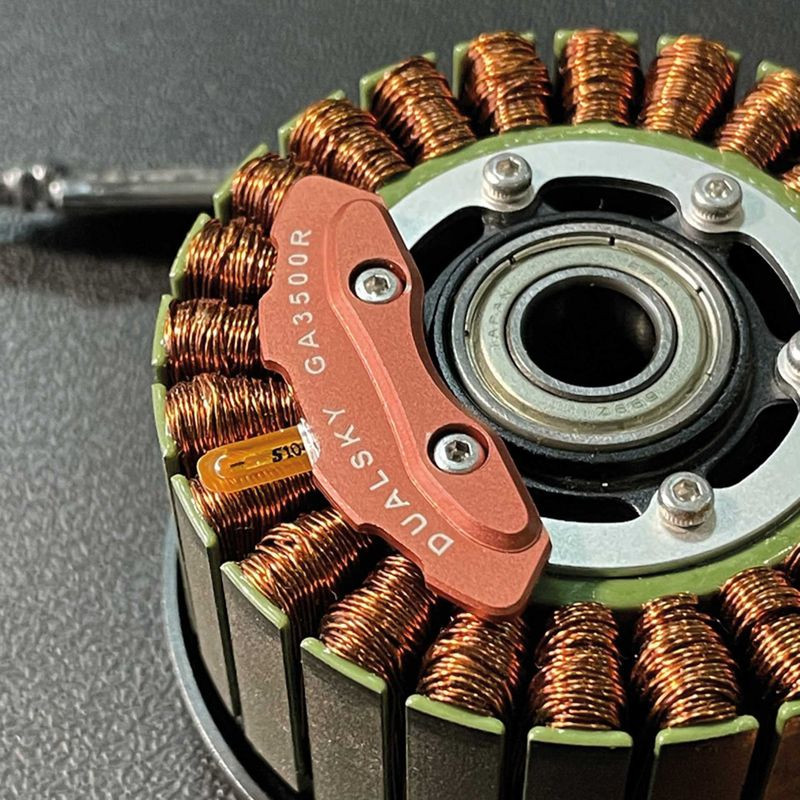

Appearance of the engine is modeled on the wheel of a sports car so its elements resemble a car rim, brake disc there is also a red element resembling a brake pad clamp which can be used to attach the temperature sensor (see description below).
Top quality components: stator, magnets, winding wire, EZO bearings. Great workmanship!
Dualsky GA series motors are recommended by Pilot RC!

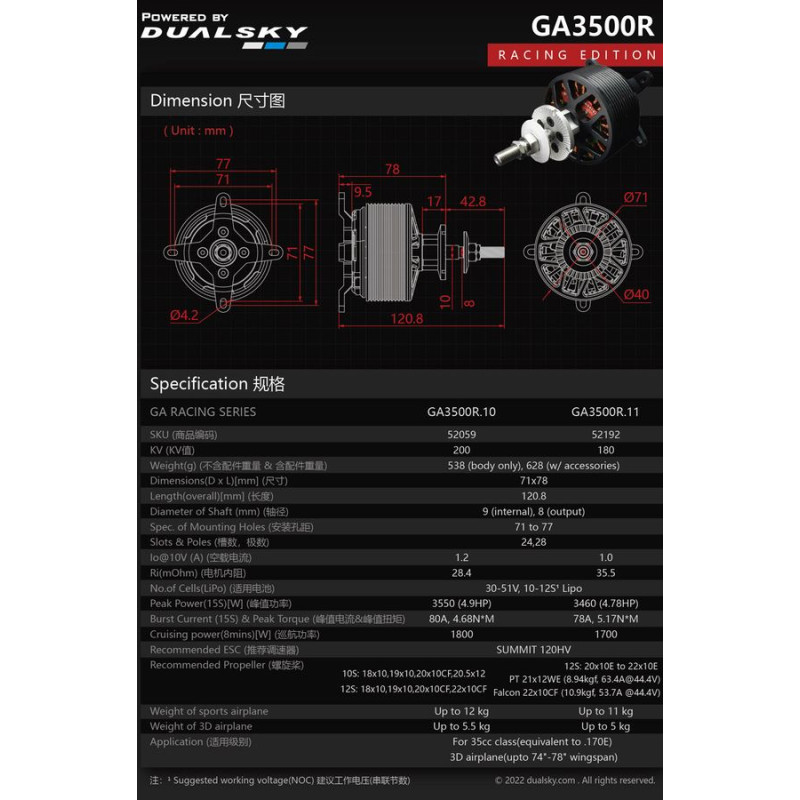

Basic data:
- external dimensions: diameter 71 mm, motor length 78 mm (total length 120mm)
- axle diameter: 9 mm (inner axis), 8 mm (outer axis)
- mounting screw spacing: 71-77 mm
- power supply: 10-12 Li-pol cells
- weight: 538g (motor alone), 628g (with accessories)
- KV: 200 rpm

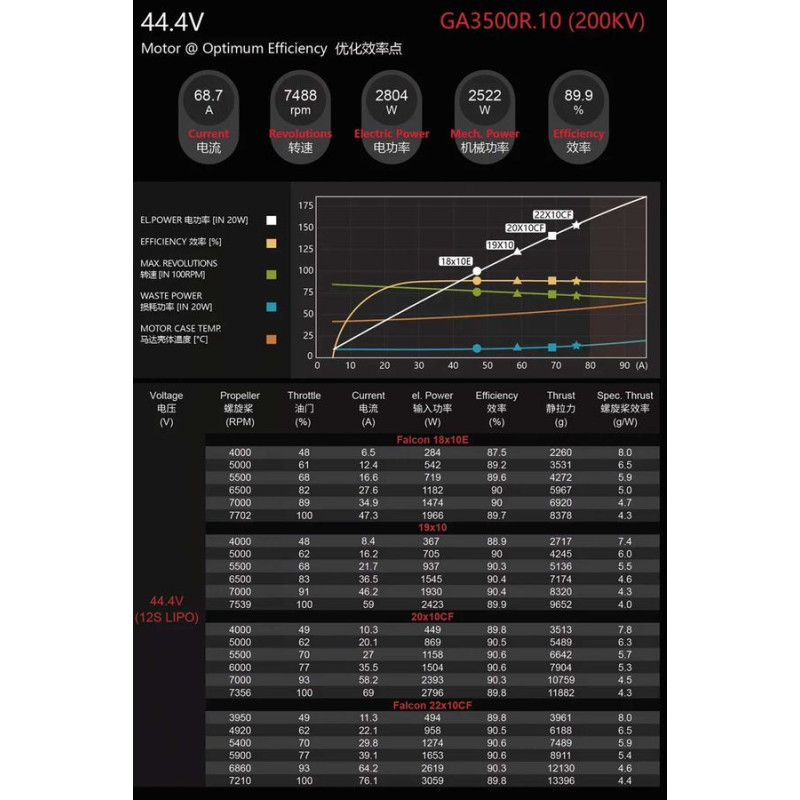

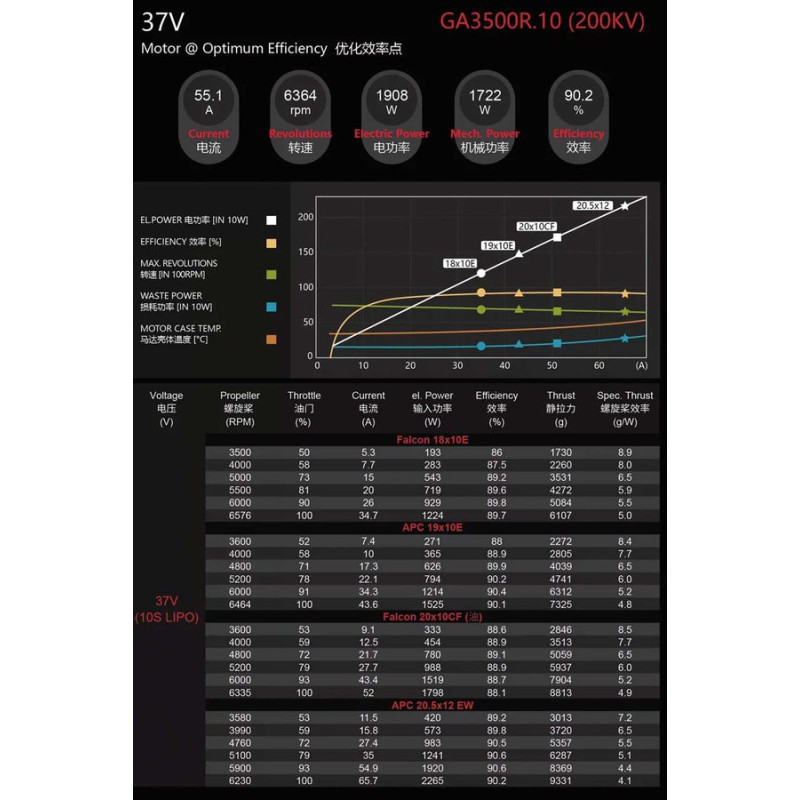

- recommended propellers: as in the specifications in the appendix
- maximum power (15 seconds): 3550W (4.9HP)
- maximum current (15 seconds): 80A
- no-load current consumption (10V): 1.2A
- internal resistance: 28.4 mOhm
- recommended regulator: 120A e.g. Dualsky Summit 120 HV
- application: 170E class aerobatic aircraft models weighing up to 12kg (3D up to 5.5kg)
- included: motor with bed, gold DB4 4mm connectors and heat shrink tubing, hub nut wrench
*Follow the instruction manual included with the product.
