DUALSKY ENGINE GA 800.23 MkII - 530kv / 910W

Dualsky's top line of electric motors. The GA800.23 MkII is designed for 30E and 40E class models, spanning 1.2 to 1.4m (48-55″) and weighing up to 2.2kg or 3D aerobatic models weighing up to 1.5 to 1.8kg.

Basic data:

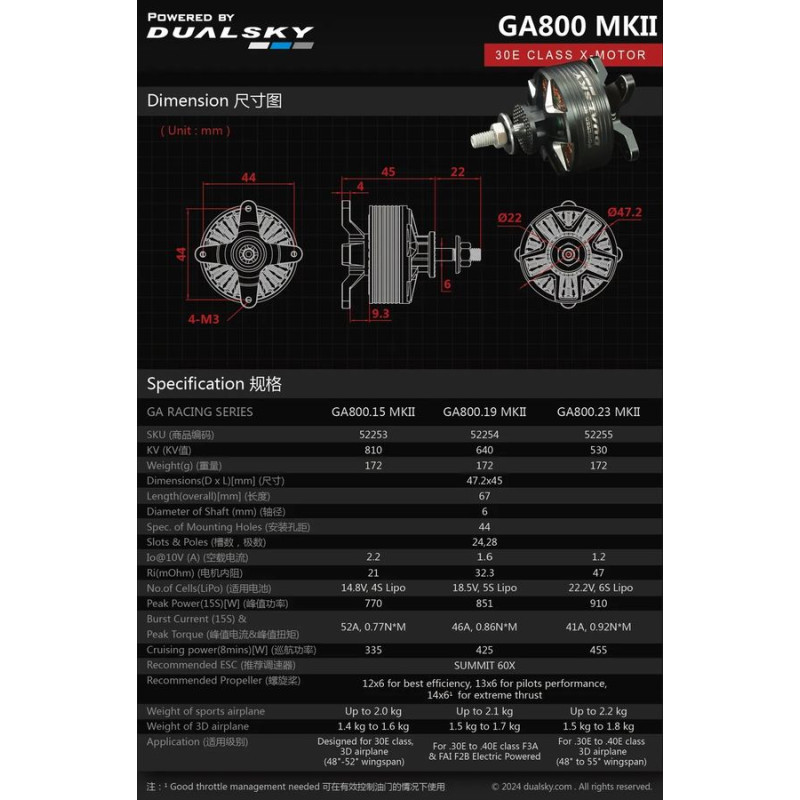

• diameter: 47.2mm, motor length: 45mm, overall length including bed: 67mm
• axle diameter: 6 mm
• mounting screw spacing: 44 mm
• power supply: 6 Li-pol cells (22.2V)
• weight: 172 g
• KV: 530 rpm

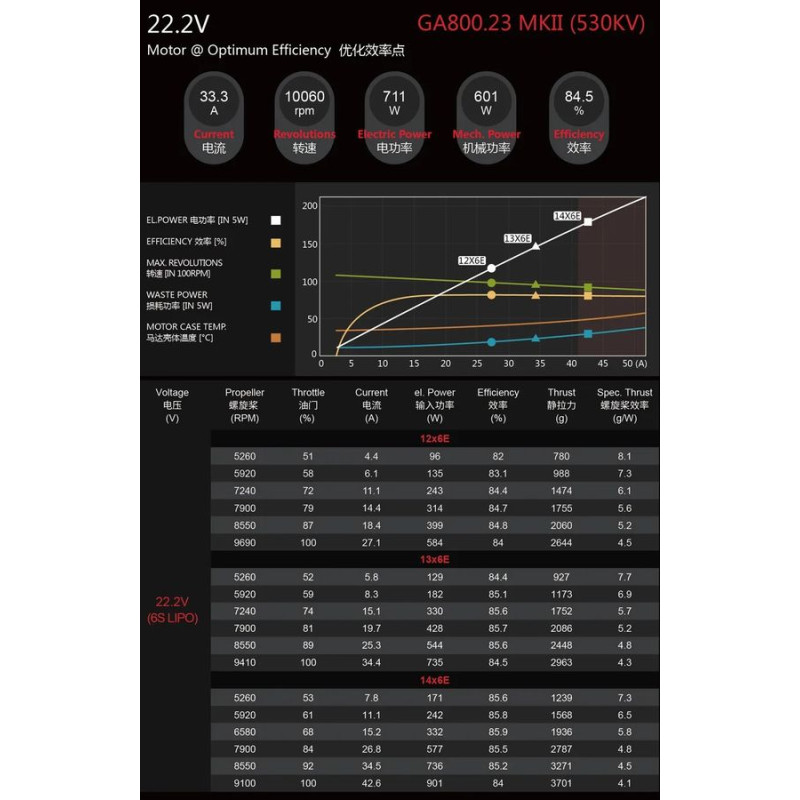

• recommended propellers: 12×6 (highest efficiency), 13×6 (optimum performance), 14×6 (maximum thrust)
• continuous power (8 minutes): 455W
• maximum power (15 seconds): 910W
• maximum current (15 seconds): 41A
• no-load current consumption (10V): 1.2A
• internal resistance: 47 mOhm
• recommended regulator: 50-60A e.g. Dualsky SUMMIT 60X
• application: aircraft models with a wingspan of 48-55″, 30E and 40E class with a weight of up to 2.2kg and 3D aerobatics up to 1.8kg
• included: motor, gold DB3 3.5mm connectors and heat shrink tubing

*Follow the instruction manual included with the product.
