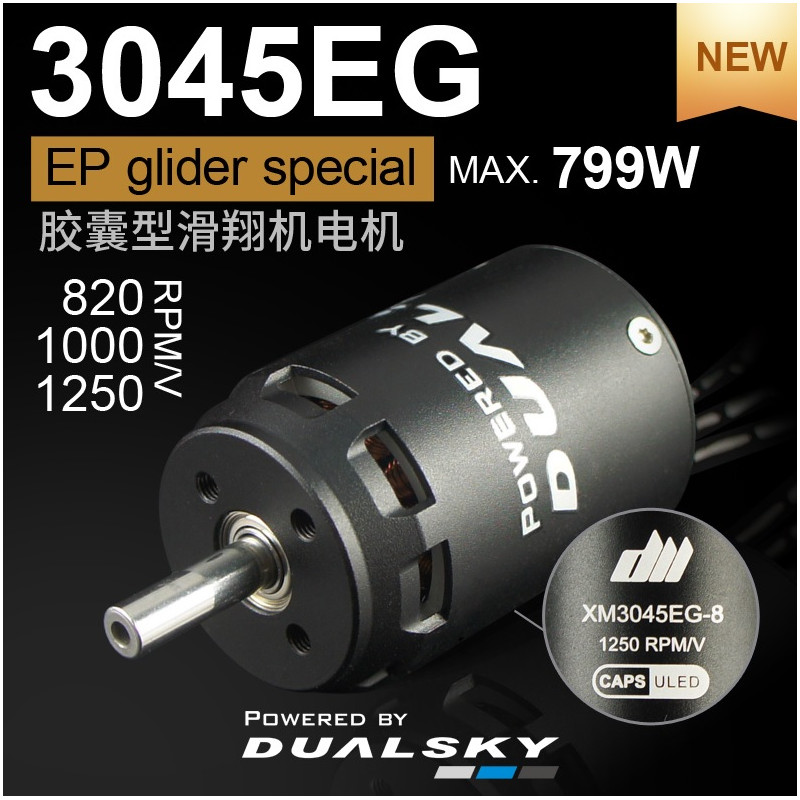

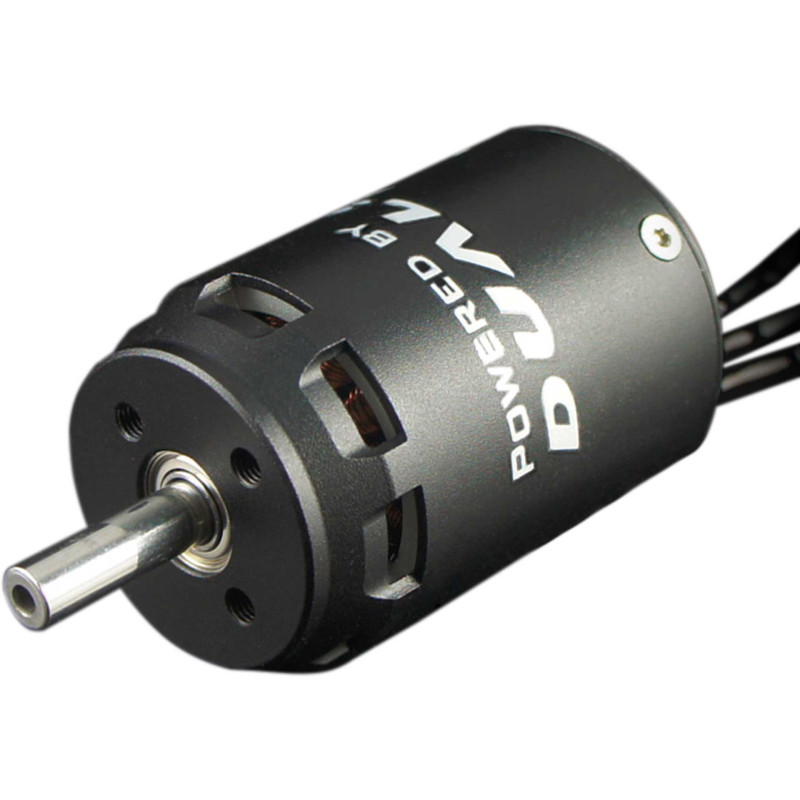

DUALSKY MOTOR XM3045EG-10 GLIDER

The XM3045EG is Dualsky's line of 12-pole electric motors designed for narrow-fuselage glider models such as the F5J, featuring high torque and performance. The lack of a rotating rotor and the cables leading out of the rear of the motor allow for easy and safe installation in a tight fuselage without the risk of cutting the wires. The motor features a robust yet lightweight 5mm diameter hollow shaft. Large, heavy-duty and impact-resistant NMB bearings are used to maximize durability.

Key features:

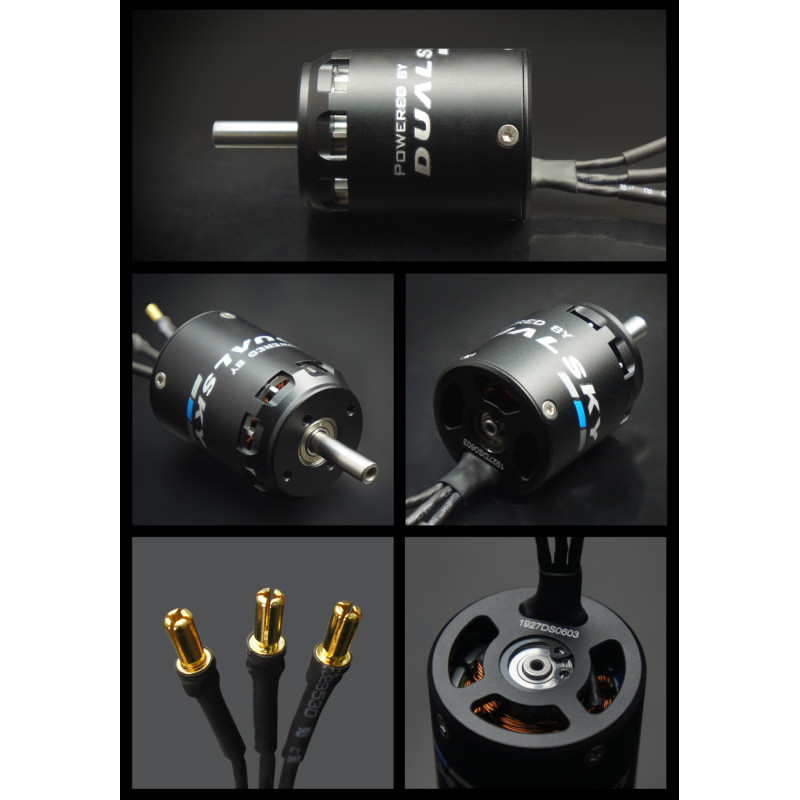

• precision CNC machined aluminum housing
• built-in fan
• cables routed out the back
• pre-installed G3.5 connectors
• long life NMB bearings
• excellent power to weight and price to quality ratio
• performance and power comparable to recognized brands like AXI or MEGA MOTOR
• cooperates with most of the modeling speed controllers
• spare parts such as shaft or bearings available on request

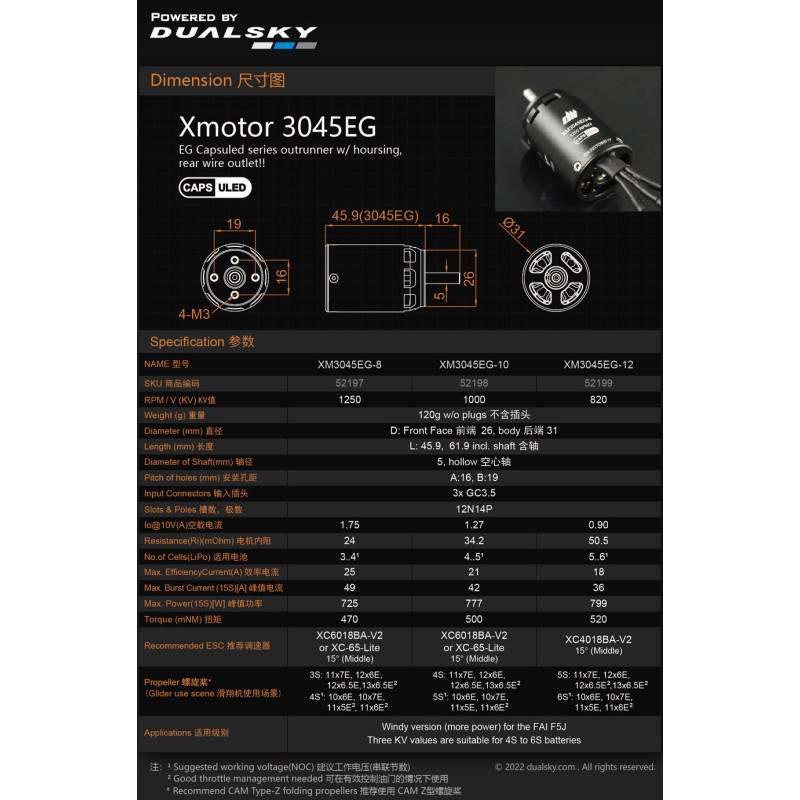

Basic data:

• dimensions: diameter 31 mm, motor length 45.9 mm
• axle diameter: 5 mm
• mounting screw spacing: 19/16 mm
• power supply: 4-5 Li-pol cells
• weight: 120 g
• KV: 1000 rpm
• recommended propellers: 4S 11×7 to 13×6.5 / 5S 10×6 to 11×6
• maximum power (15 seconds): 777W
• maximum current (15 seconds): 42A
• maximum thrust: 0.5 n*m
• no-load current consumption (10V): 1.27A
• internal resistance: 34.2 mOhm
• application: FAI F5J thermal gliders
• included: motor, gold DB3 3.5mm connectors and heat shrink tubing
• recommended regulator: 60A e.g. Dualsky 60A V2 or 65A e.g. Dualsky XC-65-Lite

*Follow the instructions included with the product.
