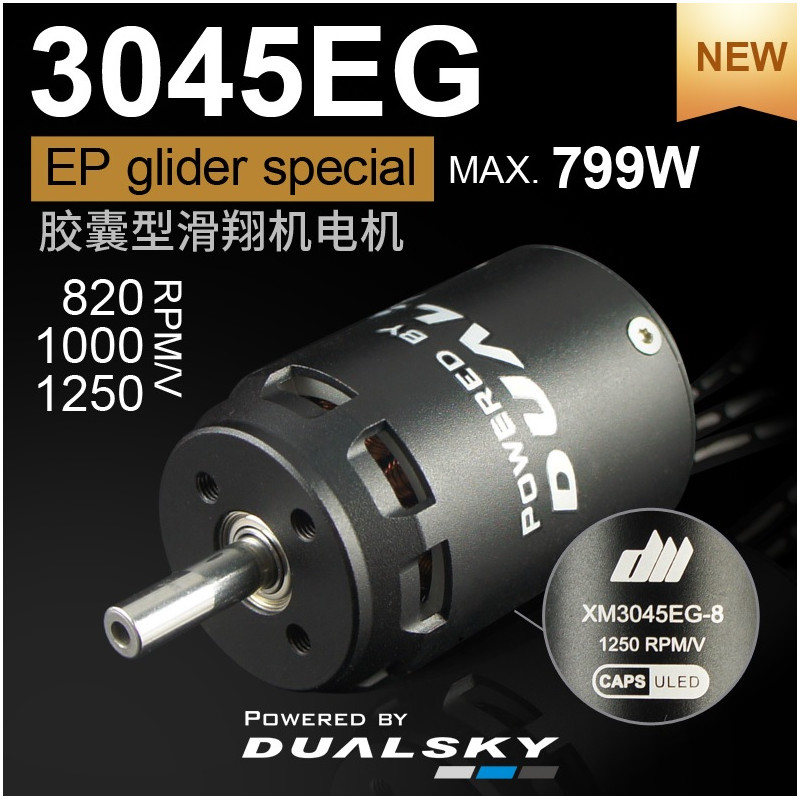

DUALSKY MOTOR XM3045EG- 8 GLIDER

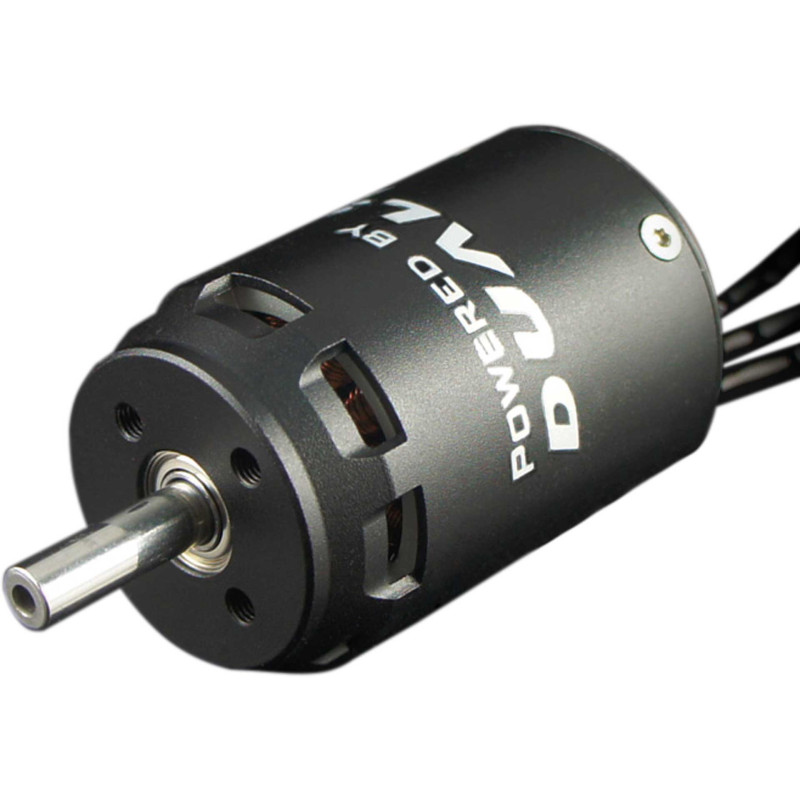

The XM3045EG is Dualsky's line of 12-pole electric motors designed for narrow-fuselage glider models such as the F5J, featuring high torque and performance. The lack of a rotating rotor and the cables leading out of the rear of the motor allow for easy and safe installation in a tight fuselage without the risk of cutting the wires. The motor features a robust yet lightweight 5mm diameter hollow shaft. Large, heavy-duty and impact-resistant NMB bearings are used to maximize durability.

Key features:

• precision CNC machined aluminum housing
• built-in fan

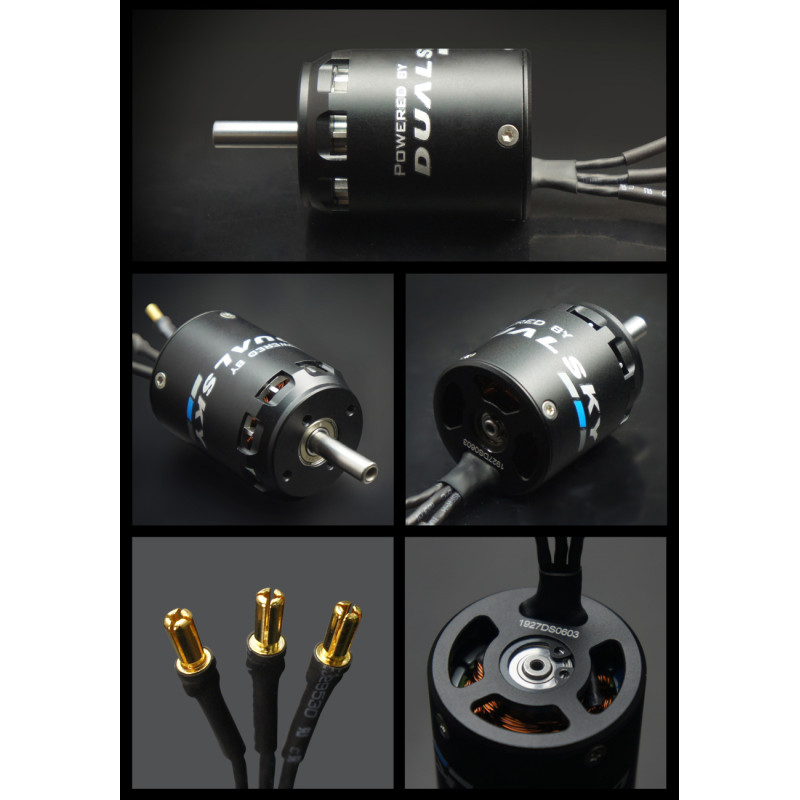

• cables routed out the back
• pre-installed G3.5 connectors
• long life NMB bearings
• excellent power to weight and price to quality ratio
• performance and power comparable to recognized brands like AXI or MEGA MOTOR
• cooperates with most of the modeling speed controllers
• spare parts such as shaft or bearings available on request

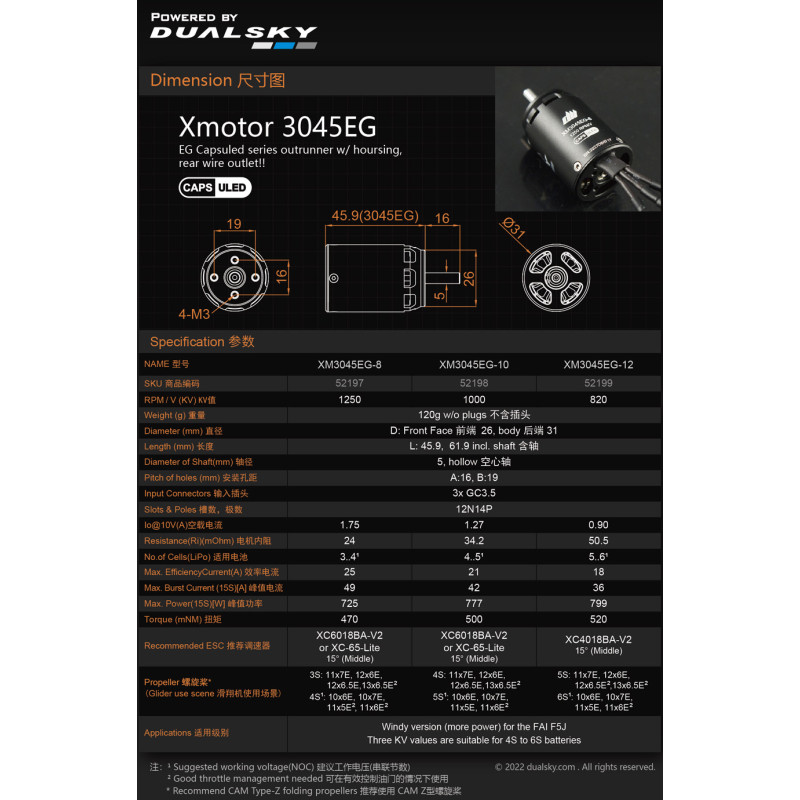

Basic data:

• dimensions: diameter 31 mm, motor length 45.9 mm
• axle diameter: 5 mm
• mounting screw spacing: 19/16 mm
• power supply: 3-4 Li-pol cells
• weight: 120 g
• KV: 1250 rpm
• recommended propellers: 3S 11×7 to 13×6.5, 4S 10×6 to 11×6
• maximum power (15 seconds): 725W
• maximum current (15 seconds): 49A
• maximum thrust: 0.47 n*m
• no-load current consumption (10V): 1.75A
• internal resistance: 24 mOhm
• application: FAI F5J thermal gliders
• included: motor, gold DB3 3.5mm connectors and heat shrink tubing
• recommended regulator: 60A e.g. Dualsky 60A V2 or 65A e.g. Dualsky XC-65-Lite

*Follow the instructions included with the product.
