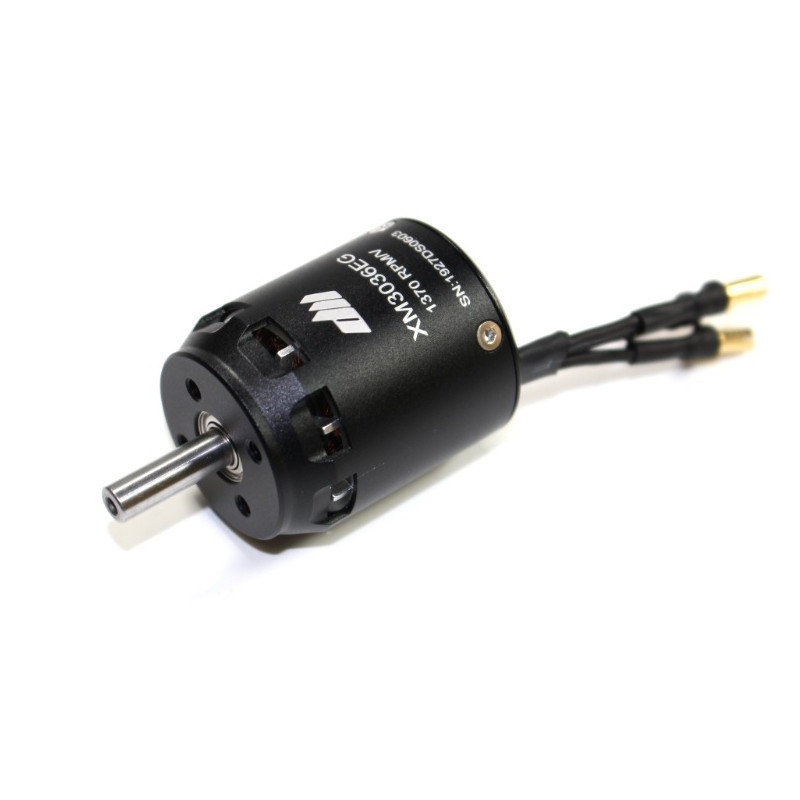

DUALSKY MOTOR XM3036EG- 6SE GLIDER

The XM3040EG is Dualsky's line of 12-pole electric motors designed for narrow-fuselage glider models such as the F5J, featuring high torque and performance. The lack of a rotating rotor and the cables leading out of the rear of the motor allow easy and safe installation in a tight fuselage without the risk of cutting the wires. The motor features a robust yet lightweight 5mm diameter hollow shaft. Large, heavy-duty and impact-resistant NMB bearings are used to maximize durability.

Key features:

• precision CNC machined aluminum housing
• built-in fan
• cables routed out the back
• pre-installed G3.5 connectors
• long-life NMB bearings
• excellent power to weight and price to quality ratio
• performance and power comparable to recognized brands like AXI or MEGA MOTOR
• compatible with most of the modeling speed controllers
• spare parts such as shaft or bearings available on request

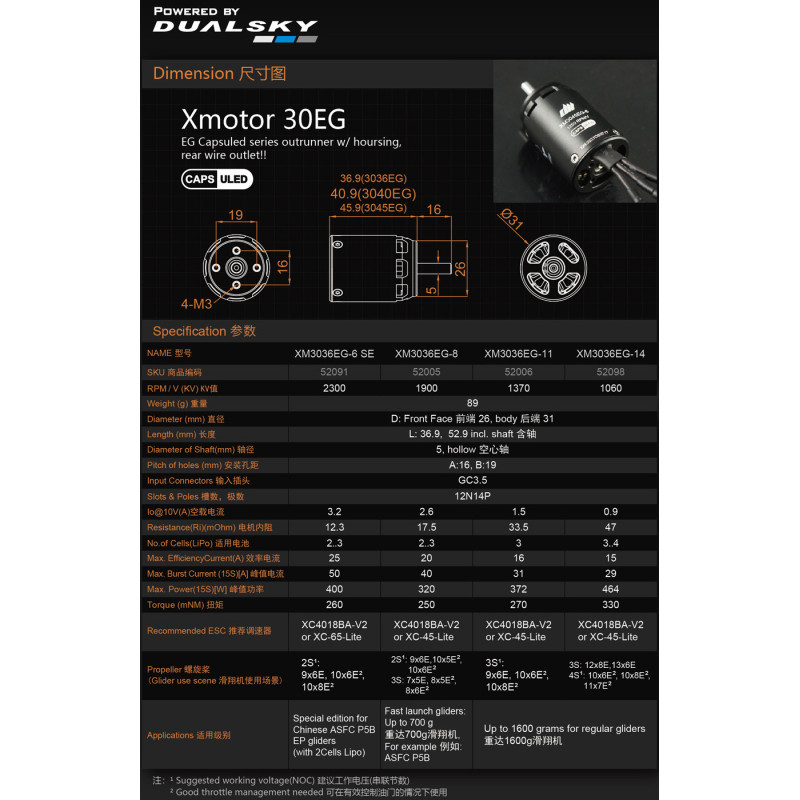

Basic data:

• dimensions: diameter 31 mm, motor length 37 mm
• axle diameter: 5 mm
• mounting screw spacing: 19/16 mm
• power supply: 2-3 Li-pol cells
• weight: 89 g
• KV: 2300 rpm
• recommended propellers: 2S 9×6 to 10×8
• maximum power (15 seconds): 400W
• maximum current (15 seconds): 50A
• maximum thrust: 0.26 n*m
• no-load current consumption (10V): 3.2
• internal resistance: 12.3 mOhm
• application: high-speed gliders up to 700g, e.g. ASFC F5B
• included: motor, gold DB3 3.5mm connectors and heat shrink tubing
• recommended regulator: 40A e.g. Dualsky XC-45-Lite or Dualsky XC-65-Lite

*Follow the enclosed instruction manual.
