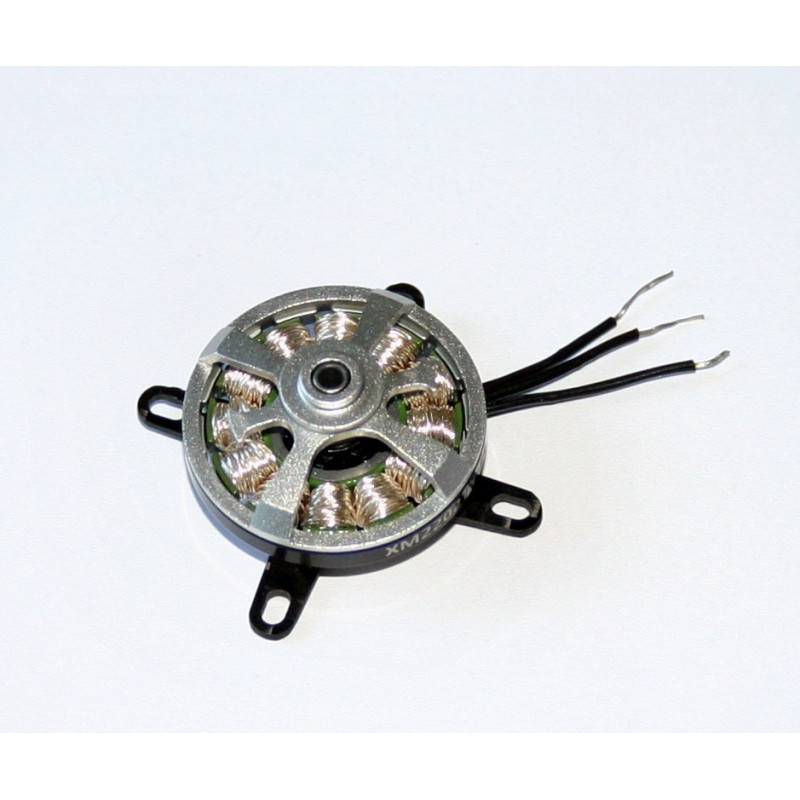

DUALSKY MOTOR XM2202TY-24S - Special Edition

SPECIAL EDITION version in which the rotor with which the propeller mounting rubber holders have been integrated has been improved, both beds (cross-bars) have been changed to carbon, which are lighter and thinner than the standard ones made of glass laminate. Silver wire was used for the winding, which has a lower resistance.

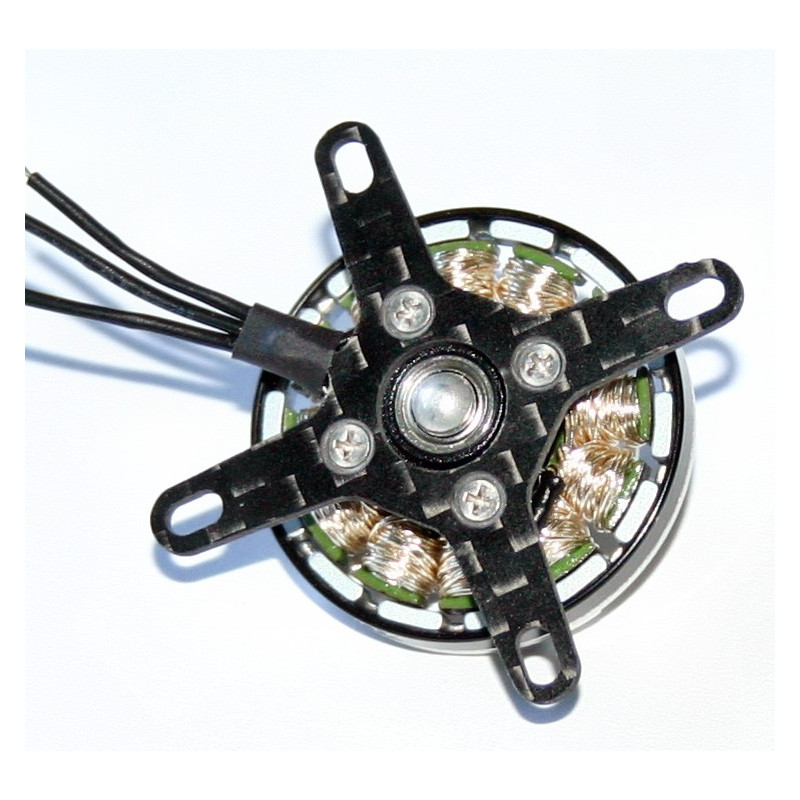

Motor winding aimed at achieving maximum thrust and optimized for PT propellers. The motor axle is hollow inside (weight reduction). Two different carbon beds (mounting crossbars) are supplied with the motor.

Basic data:

• rotor outer diameter: 27 mm
• prop-saver hub integrated with the motor
• power supply: 2 Li-xxx cells
• weight (with cables): 10.2 g
• KV: 1500 rpm
• propellers offered: PT9x2.3i thrust 164g current 3.7A, PT10x3i
• application: F3P competition models up to 90g
• included: hub rubbers, mounting screws and two different carbon beds
