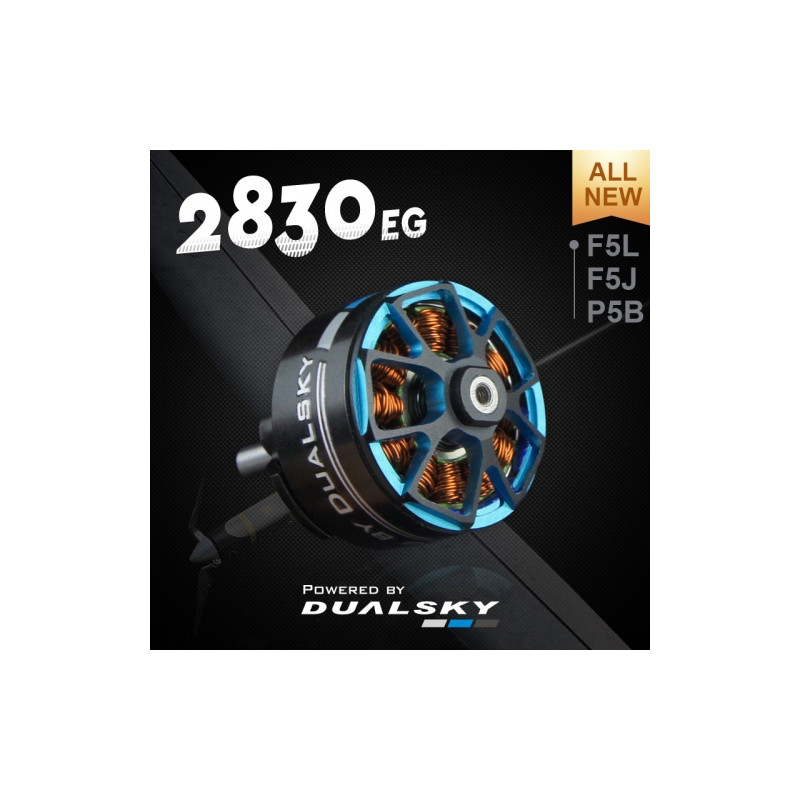

DUALSKY MOTOR XM2830EG- 8 GLIDER

The XM2830EG is Dualsky's 28.6mm diameter line of 14-field electric motors, designed for small glider models with narrow fuselages, such as the F5J, with a 30-32mm cap-trimmed bow, small aircraft, flying wings, and small UAVs. The engine has a 4.0mm diameter hollow shaft. The motor uses heavy-duty NMB bearings.

For optimum operation, it is recommended to set the regulator timings to middle (15 degrees) or extremely high (20 degrees) to achieve fast takeoff/climb.

Key features:

• nMB bearings with long life
• excellent power-to-weight and price-to-quality ratio
• performance and power comparable to established brands like AXI or MEGA MOTOR
• cooperates with most modeling speed controllers
• spare parts such as shaft or bearings available on request

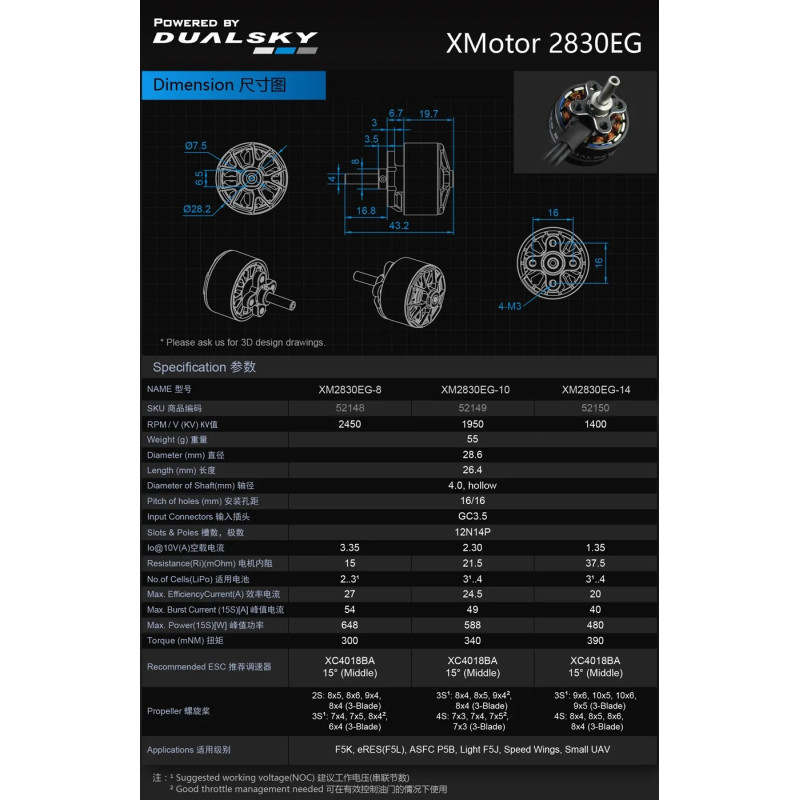

Basic data:

• diameter 28.6 mm (22 mm in the front part)
• motor length 26.4 mm
• axle diameter: 4.0 mm
• mounting screw spacing: 16/16 mm
• power supply: 3-4 Li-pol cells
• weight: 55 g
• KV: 2450 rpm
• recommended propellers: 2S 8×5, 8×6, 9×4, 8×4 (3-blade) 3S: 7×5, 7×5, (8×4 with careful gas handling), 6×4 (3-blade)
• maximum power (15 seconds): 648W
• maximum current (15 seconds): 54A
• maximum thrust: 300 mNM
• no-load current consumption (10V): 3.35A
• internal resistance: 15 mOhm
• applications: F5K, eRES (F5L), ASFC F5B, lightweight F5J, fast flying wings, small UAV models
• included: motor, gold G3.5mm connectors, heat shrink tubing, mounting screws
• recommended regulator: 40A, e.g. Dualsky 40A V2

*Follow the instructions included with the product.
