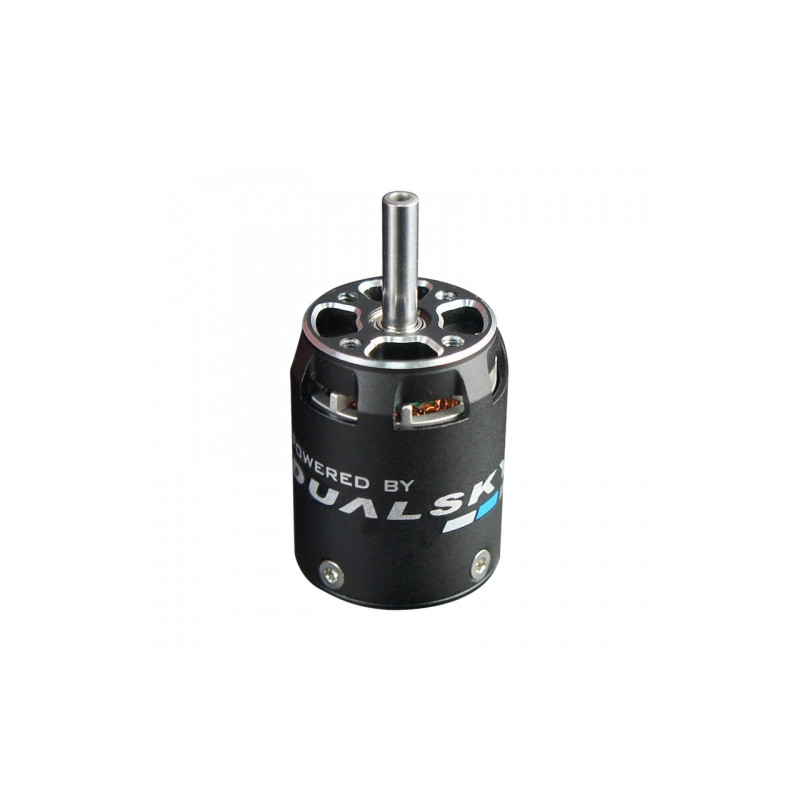

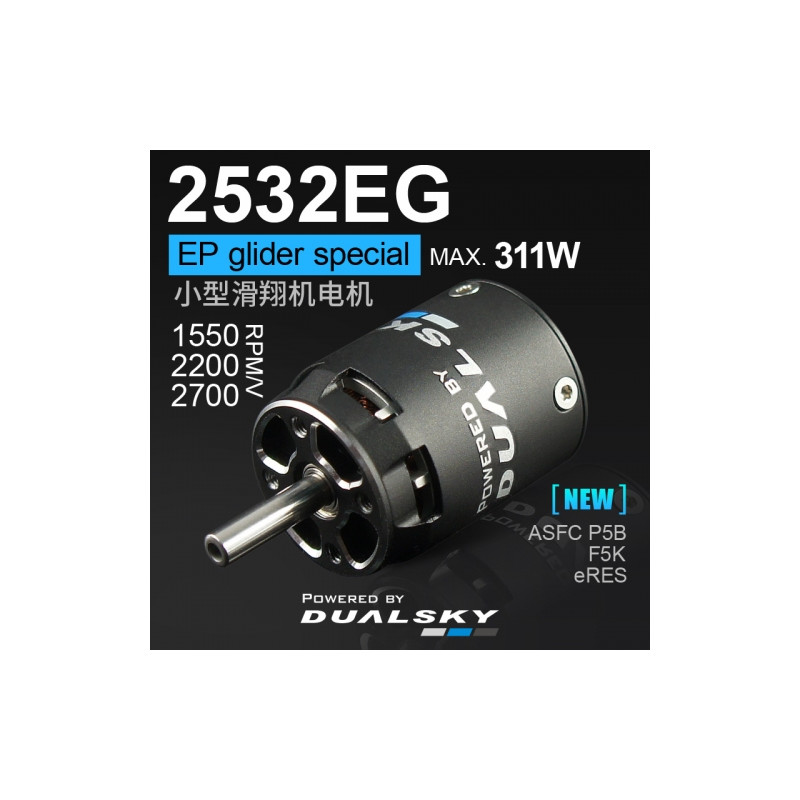

DUALSKY MOTOR XM2532EG-11 GLIDER

The XM2532EG is Dualsky's line of 14-field 25mm diameter electric motors, designed for small glider models with narrow fuselages, such as the F5J, with a 25-32mm cap-trimmed bow. Strongly openwork front of the motor and rotor with a fan using a "turbo" cap provide excellent cooling. The lack of a rotating rotor and the cables leading out of the rear of the motor allow easy and safe installation in a tight fuselage without the risk of cutting the wires. The motor features a 4mm diameter hollow shaft. The motor uses heavy-duty, high-speed NMB bearings.

For optimum operation, it is recommended to set the regulator's timings to middle (15 degrees) or exceptionally high (20 degrees) to achieve fast takeoff/rise.

Key features:

• precision CNC machined aluminum housing
• rotor with active cooling

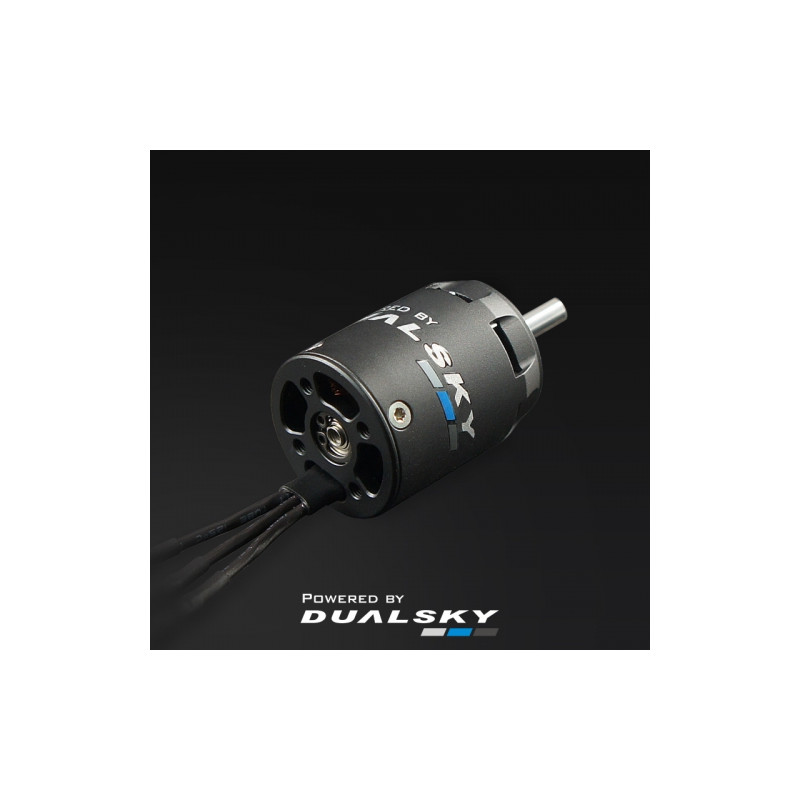

• cables routed out the back
• pre-installed G2.0 connectors

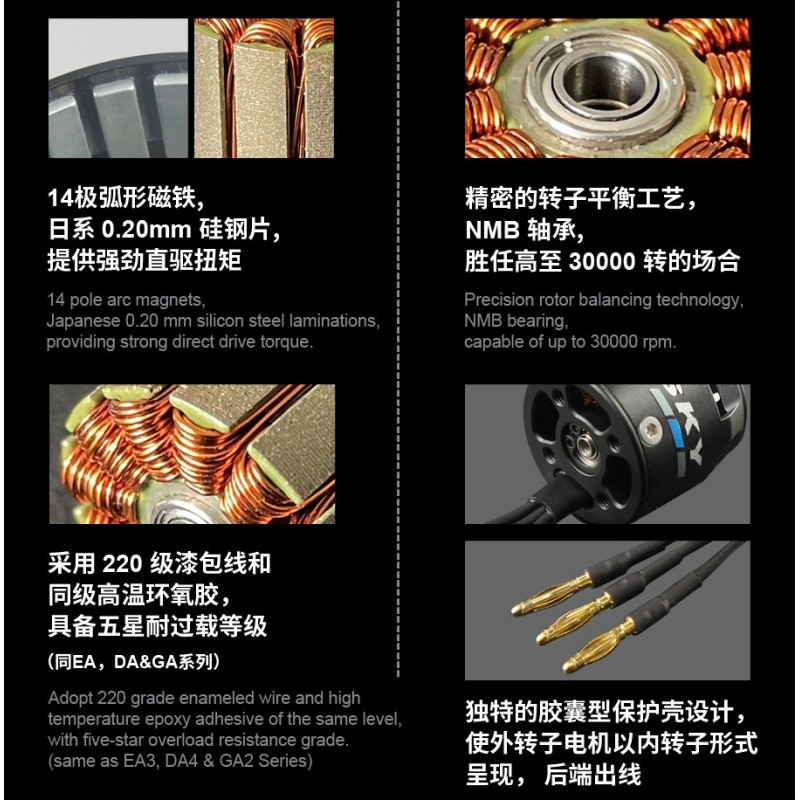

• high speed NMB bearings for long life
• excellent power to weight and price to quality ratio
• performance and power comparable to established brands like AXI or MEGA MOTOR
• cooperates with most of the modeling speed controllers
• spare parts such as shaft or bearings available on request

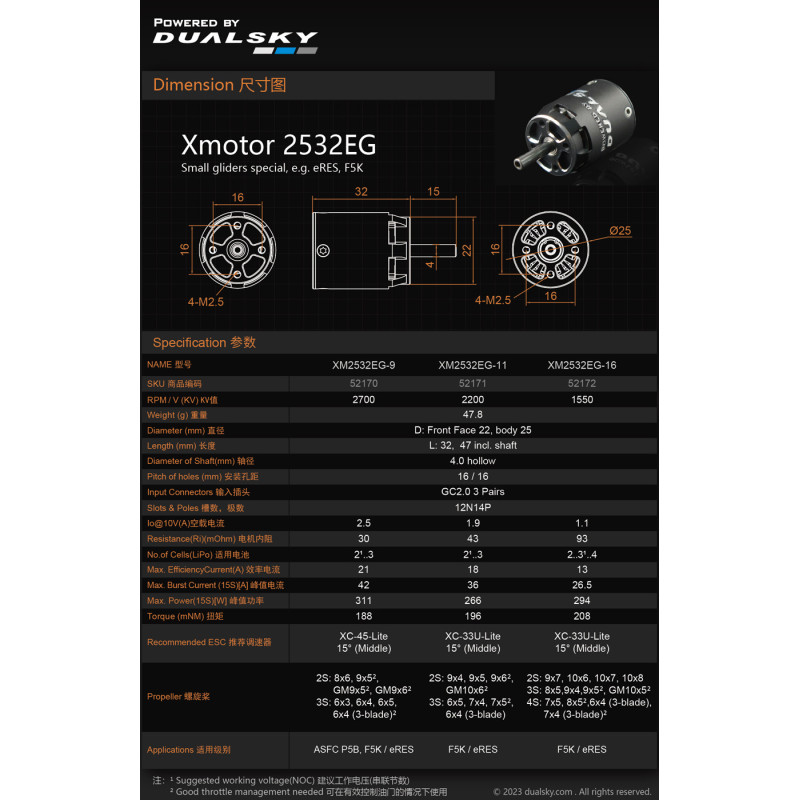

Basic data:

• diameter 25 mm (22 mm in the front part)
• motor length 32 mm
• axle (shaft) diameter: 4 mm
• mounting screw spacing: 16/16 mm
• power supply: 2-3 Li-pol cells
• weight: 47.8 g
• KV: 2200 rpm
• recommended propellers: 2S: 9x4 / 9x5 (9x6, GM10x6 with careful gas handling) 3S: 6x5 / 7x4 (7x5 with careful gas handling) 6x4 (3-blade)
• maximum power (15 seconds): 266W
• maximum current (15 seconds): 36A
• maximum thrust: 196 mNM
• no-load current consumption (10V): 1.9A
• internal resistance: 43 mOhm
• application: gliders F5K, eRES
• included: motor, gold G2.0 mm connectors, heat shrink tubing, mounting screws
• recommended regulator: 33A

*Follow the instructions included with the product.
