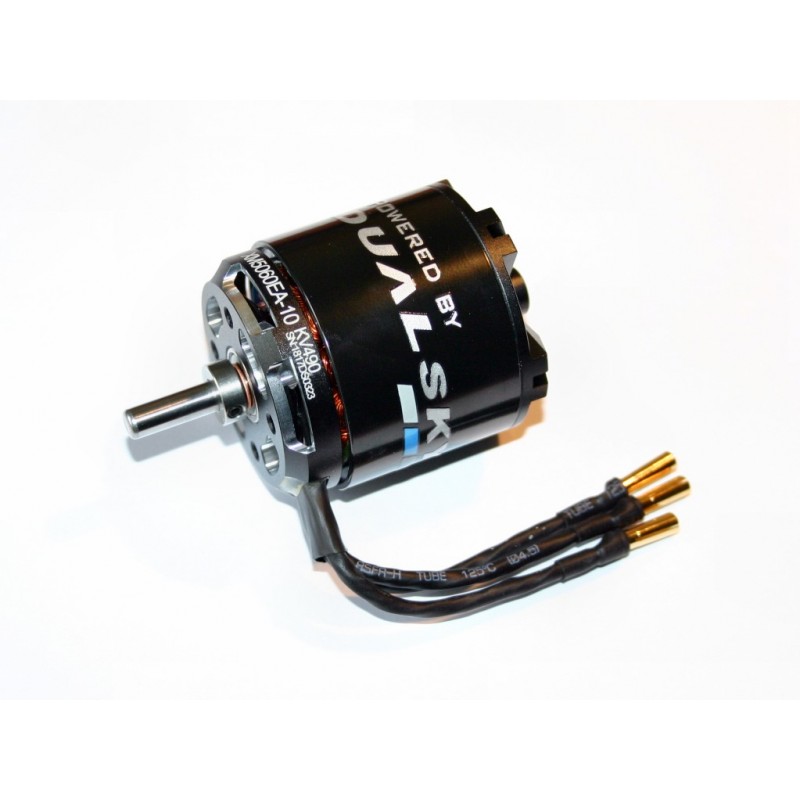

DUALSKY MOTOR XM5060EA- 9 V3

Dualsky EA series 3rd generation motor with improved DUROTATE rotor. A line for the most demanding users.

Features of EA DUROTATE motors compared to CA series:

• dUROTATE rotor - changed shape of the rear part of the rotor, improved motor efficiency in the middle speed range, reduced air noise (DUROTATE rotor is not compatible with the earlier version of the motor),
• improved stator base (front part of the motor) for better heat dissipation,
• increased the efficiency of the motor by making the stator and rotor fit more precisely (smaller gap between the stator and rotor),
• the possibility of vibration has been minimized so that EA series motors can endure higher loads,
• the winding is thinner, covered with higher temperature resistant varnish (insulation), so the insulation is better and the internal resistance is reduced at the same time,
• a different profile and shape of the stator base makes it easier to mount the motor in tight hulls and provides better cooling,
• a wider selection of EA series motors with optimally tuned KV (revolutions per volt) allow the most suitable motor selection for a given application,
• eA series motors, compared to CA series in the same size class, provide 10-20% more power and at the same time efficiency increases by 3-5%.

Basic data:

• 14 field motor
• dimensions: fi 49.5 x 58.2mm
• axle diameter: 6mm
• mounting screw spacing: 30/30mm
• power supply: 5-6 Li-pol cells
• weight: 391g
• KV: 550 rpm
• recommended propellers: 5S/16×8 17×10, 6S/15×6 16×8
• current: max 100A (instantaneous up to 15 seconds)
• max power (15s): 2000W
• no-load current consumption (10V): 1.4A
• internal resistance: 18.5 mOhm
• recommended regulator: Summit 120
• application: models under internal combustion engines 2-takt 13-15cm3 or 4-takt 20cm3

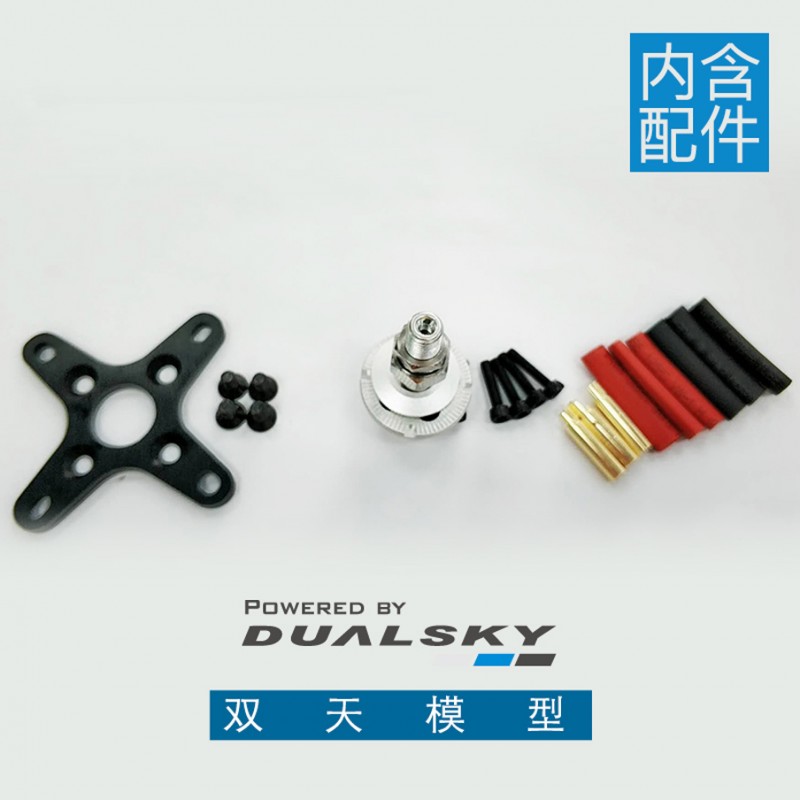

• included: cross mounting, M8 propeller hub for reverse mounting, DB4 type 4mm male connectors soldered on cables
