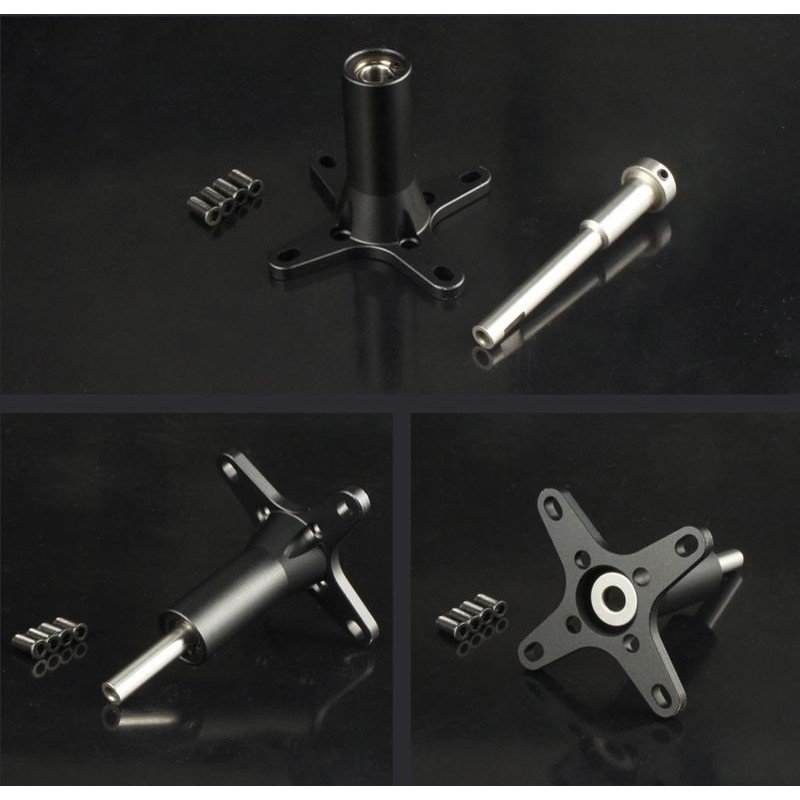

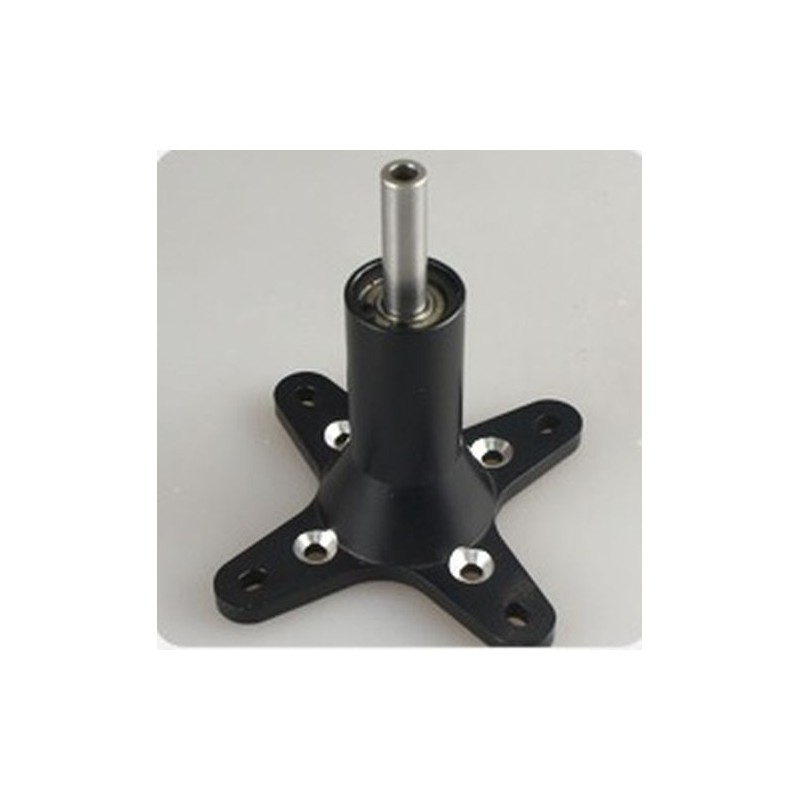

DUALSKY EXTENSION BED MFE-35 G2

Dedicated for Dualsky XM35xx engines of the EA V3, ECO V2 series and as a spare part for 35EGL engines.

The cradle with built-in bearing allows the use of Dualsky Dualsky (as well as outrunners from other manufacturers with a shaft with a diameter of 5mm and spacing of mounting holes 19 / 19mm) in tight and narrow hulls, e.g. gliders. The length of the stock in most cases allows the engine to be mounted far enough from the narrow bow of the model that there is enough space for it to be securely attached and cables can be routed freely.

Characteristics:

• easy to install in tight and narrow bows of sailplane hulls
• front section with ball bearing
• 6mm shaft (the motor must also have a 6mm shaft)

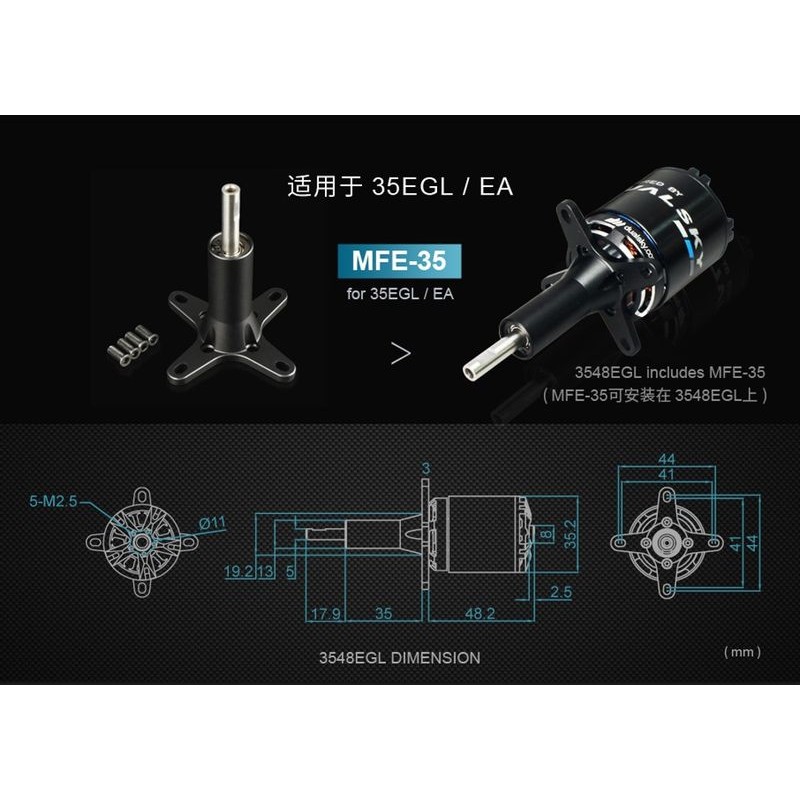

• dimensions as in the diagram
• light structure 26g
• 4 M2.5 mounting screws included
