DUALSKY DRIVE UNIT 70E (TC.6A.70E)

Drive kit designed for 70E class electric models.

Included:

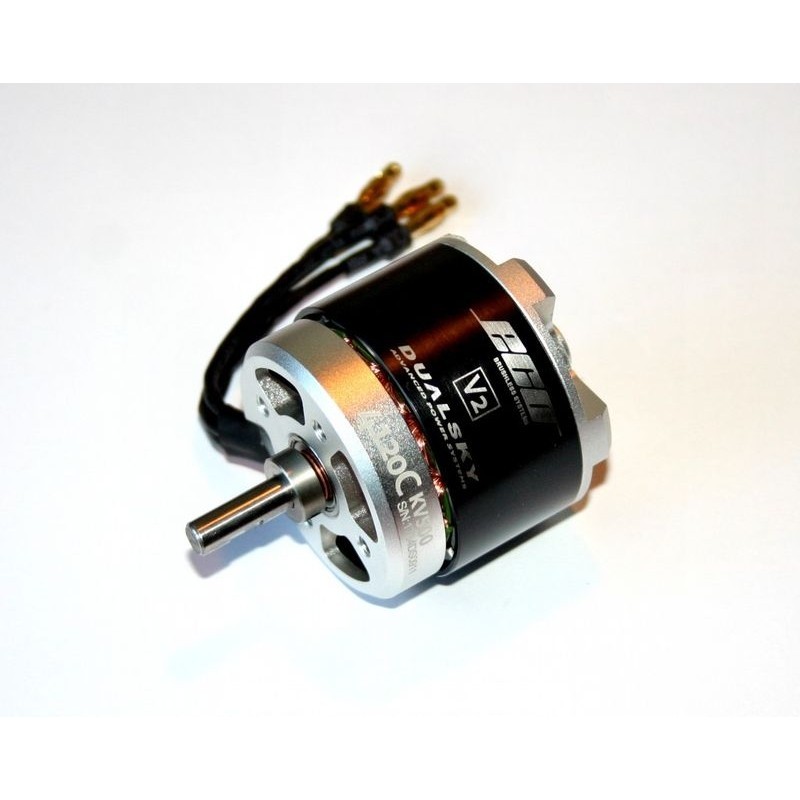

• Dualsky ECO 4120C kv500 motor
• Dualsky 80A V2 regulator

V2 version ECO-C engine dedicated to aircraft models. Attractive price with Dualsky brand quality.

The ECO series engines have changed their model designations making them similar to that of other popular engines like AXi, EMAX, RAY, FOXXY etc. Now the motor model name is based on the diameter and length of the stator and KV.

The Dualsky ECO Series motor family covers the range of the most common drive units: from the smallest to the 900W. A wide selection of KVs allows for precise selection of a motor for a specific application. A part of them is also suitable for use in multicopter platforms (ECO-X line).

Features of ECO V2 engines:

• 25% more powerful design compared to the ECO series while maintaining the same weight
• engine life increased by 50% compared to the previous ECO series
• reinforced axles
• dynamically balanced rotor
• optimized heat dissipation
• waterproof controller - ready for rain and humidity - NOTE bearings are not waterproof!
• NEW DETERMINATION RULES based on stator diameter and length and KV (revolutions per volt of no-load voltage)
• a wide selection of models in the most popular sizes up to over 2000W and optimally matched KV parameters
• standard length wiring with factory soldered connectors (connector sockets for soldering on regulator cables are included)
• motor shaft extending on stator side
• reversible mounting option, hub to bolt onto rotor included
• mounting cross member and screws included
• aluminum alloy motor housing, CNC-machined and anodized
• NMB bearings
• N4SH magnets
• model markings are laser-engraved onto the rotor so any impact on balance is eliminated
• product aimed at intermediate aircraft and multicopter pilots guaranteeing high quality at a low cost of purchase
• product packaged in an aesthetic box

Basic data:

• dimensions: 49.5x45.2mm
• axis diameter: 6mm
• mounting screw spacing: 30/30 mm
• power supply: 5-6 Li-pol cells
• weight: 280 g
• KV: 500 rpm
• recommended propellers: 5S 16x9, 15x8 6S 14x7, 15x8
• highest efficiency at load: 36A
• maximum instantaneous load: 60A (up to 15 seconds)
• maximum power (15 seconds): 1440W
• no-load current consumption (10V): 1.1A
• internal resistance: 25 mOhm
• recommended regulator: 60-65A e.g. Dualsky XC-65-Lite
• application: 70E 3A and 3D class aircraft models or equivalent combustion 2-stroke 7.5-9cm or 4-stroke 10-12cm
• complete with: cross-brace for mounting, propeller hub for reverse mounting, 4mm DB4 type male connectors soldered on cables + connector sockets and heat shrink tubing

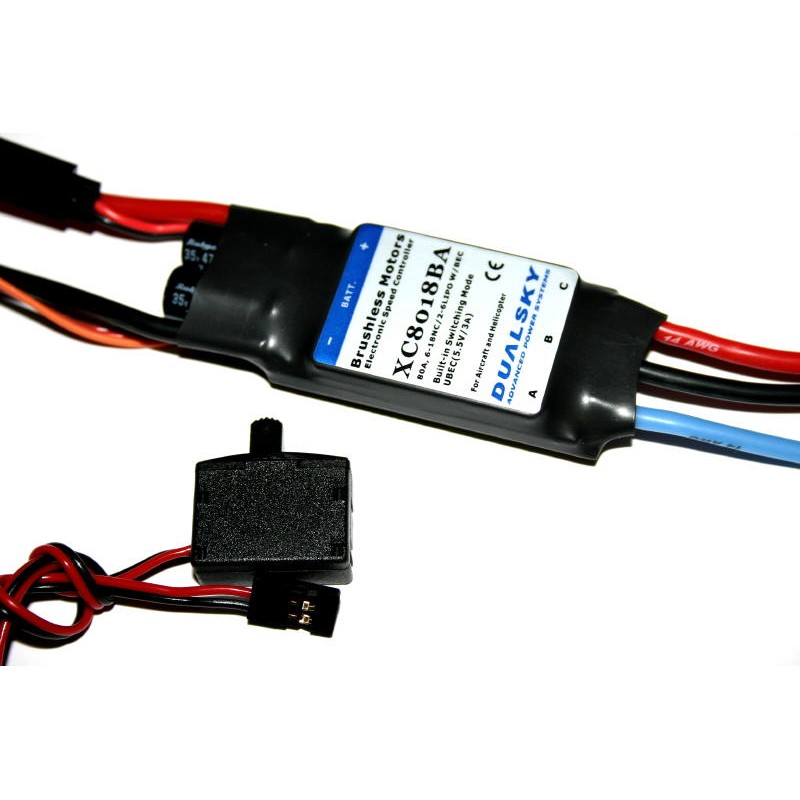

DUALSKY's 80A, 22V speed controller for 3-phase motors.

DUALSKY's 80A, 22V speed regulator for 3-phase motors.

The regulator has firmware (software) version V.2 where:

• LINEAR BRAKE has been introduced
• the possibility of programming from a PC has been introduced; connection to a PC is possible through an optional DUALSKY USB Link card
• the controller on the package side is equipped with DC3-A connectors and on the motor side with DB3 connectors

Basic features:

• 80A continuous current (maximum temporary 100A)
• 2-6 Li-Ion/Li-pol cells (7.4-22.2V), 6-18 Ni-Cd/Ni-Mh cells (7.2-21.6V)
• switching BEC 5.5V/3A
• motor support: up to 210000 rpm (2-field), 70000 rpm (6-field) and 35000 rpm. (12-field)
• programmable timing: normal, soft and super-soft
• programmable cut-off with setting: engine shutdown/power reduction
• programmable brake: on/off
• dimensions: 75x30x14 mm
• weight: 66g
• includes optional switch that can be plugged into the socket coming out of the regulator
• power cables: 14AWG
• cables to motor: 14AWG

For this set, the recommended prop: 6S 14×7.
