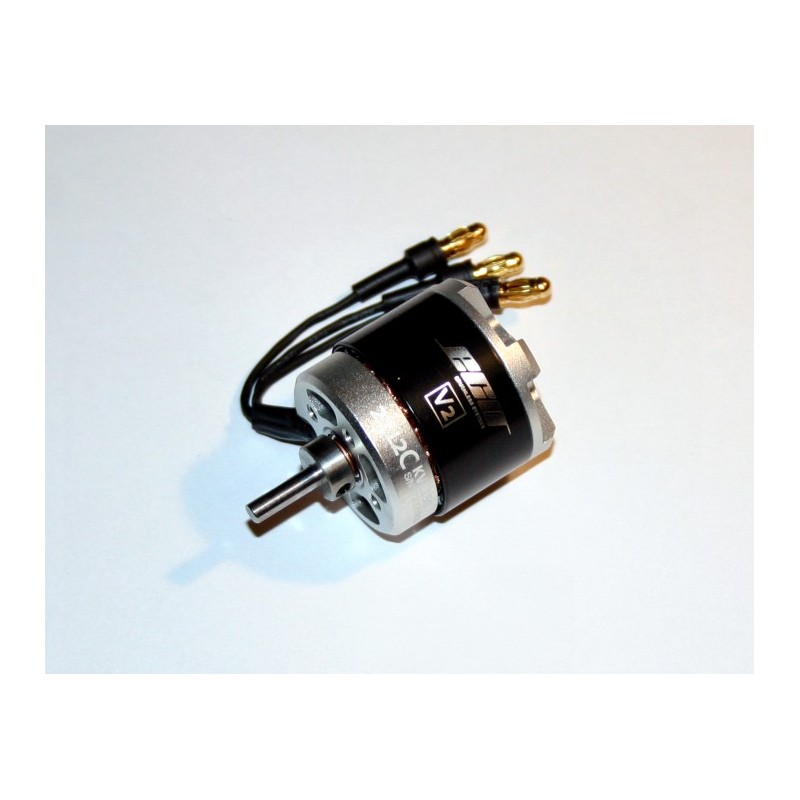

2312C V2 DUAL ENGINE - 760kv

ECO-C engine in V2 version dedicated to aircraft models. Attractive price while maintaining brand qualityDualsky.

In ECO series engines the model designations were changed making them similar to that known from other popular engines such as AXi, EMAX, RAY, FOXXY etc. Now the motor model name is based on the stator diameter and length and KV.

Engine familyDualskyECO series covers the range of the most commonly used drive units: from the smallest to those with a power of 900W. The wide range of KV allows precise selection of the motor for a specific application. Some of them are also suitable for use in multicopter platforms (ECO-X line).

Features of ECO V2 engines:

• 25% stronger structure compared to the ECO series while maintaining the same weight
• Engine life increased by 50% compared to the previous ECO series
• reinforced axles
• Dynamically balanced rotor
• optimized heat dissipation
• waterproof stator - ready for operation in rain and moisture - NOTE the bearings are not waterproof!
• NEW LABELING RULES based on stator diameter and length and KV (revolutions per volt of the no-load voltage)
• a wide range of models in the most popular sizes up to a power of over 2000W and optimally matched KV parameters
• standard length wiring with factory-soldered connectors (connector sockets for soldering on the controller cables are included in the set)
• motor shaft protruding on the stator side
• possibility of reverse assembly, hub for screwing onto the rotor is included
• Mounting cross and screws are included
• Aluminum alloy motor housing, CNC machined and anodized
• bearings NMB
• N4SH magnets
• the model markings are laser engraved on the rotor thus eliminating any influence on the balance
• a product aimed at intermediate pilots of airplanes and multicopters, guaranteeing high quality with a low purchase cost
• product packed in an aesthetic box

Basic data:

• dimensions: 28.8 x 28.9mm
• axle diameter: 3.175 mm
• distance between fastening screws: 16/16 mm
• power supply: 4-5 Li-pol cells
• weight (without cables): 58 g
• KV: 760 rpm
• recommended propellers: 4S 10x5, 11x5 5S 8x5, 9x6
• highest efficiency under load: 10A
• maximum instantaneous load: 16A (up to 15 seconds)
• maximum power (15 seconds): 256W
• no load current consumption (10V): 0.4A
• internal resistance: 164 mOhm
• recommended regulator: 22-25A e.g.DualskyXC-22-Lite
• application: 400E class aircraft models weighing 400-800g
• set includes: crosspiece for mounting, propeller hub for reverse assembly, male connectors DB3 3.5 mm soldered on the cables + connector sockets and heat shrink tubes
