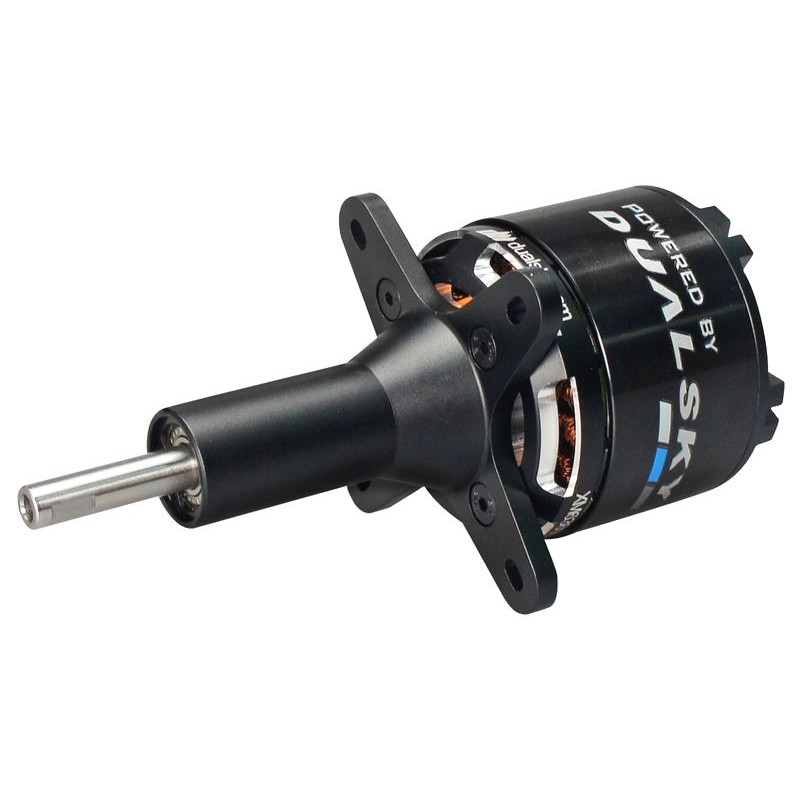

XM6360EGL-19 DUAL ENGINE

EngineDualskyThe XM6360EGL-19 is based on the 3rd generation EA engine and is offered with a dedicated MFE G2 extension for easy electrification of glider mockups and installation in tight fuselages.A line for the most demanding users.

Features of EA DUROTATE motors compared to CA series:

• DUROTATE rotor - changed shape of the rear part of the rotor, improved engine efficiency in the middle RPM range, reduced air noise
• improved stator base (front part of the motor) for better heat dissipation
• increased engine efficiency through greater precision of stator and rotor matching (smaller gap between stator and rotor)
• the possibility of vibration has been reduced to a minimum, thanks to which the EA series motors can withstand higher loads
• the winding is thinner, covered with a varnish resistant to higher temperatures (insulation), thanks to which the insulation is better and at the same time the internal resistance is reduced
• a wider selection of EA series motors with optimally tuned KV (revolutions per Volt) allow for the most appropriate engine selection for a given application
• EA series motors compared to the CA series in the same size class provide 10-20% more power and at the same time the efficiency increases by 3-5%.

Basic data:

• 14 poles engine
• dimensions: fi 63.1 x 63mm (motor only without extension), length 123mm with extension
• axle diameter: 8mm
• length of the projecting axle: 28.4mm
• stator size: 5330
• distance between fastening screws: 32 / 44mm
• spacing of cross mounting bolts: 71-75 / 71-75
• power supply: 10-12 Li-pol cells (suggested 10S, while 12S only with responsible gas handling - e.g. avoiding maximum thrust)
• weight: 725g
• KV: 220 rpm
• string (N * M): 5.4
• recommended propellers: 10S / 21x12E, 22x10E, 12S / 19x10E, 20x8E, 20x10E (with a 20x10E propeller carefully have the maximum throttle)
• current: max. 100A (momentary up to 15 seconds)
• highest efficiency at 50A
• max power (15s): 4000W
• no load current consumption (10V): 1.2A
• internal resistance: 28 mOhm
• recommended regulator: 100-120A e.g.Dualsky100A HV orDualskySummit 100HVor DualskySummit 120HV
• application: gliders weighing up to 20 kg
• the set includes: male connectors DB4 4mm soldered on the cables + female connectors and heat shrink tubes
