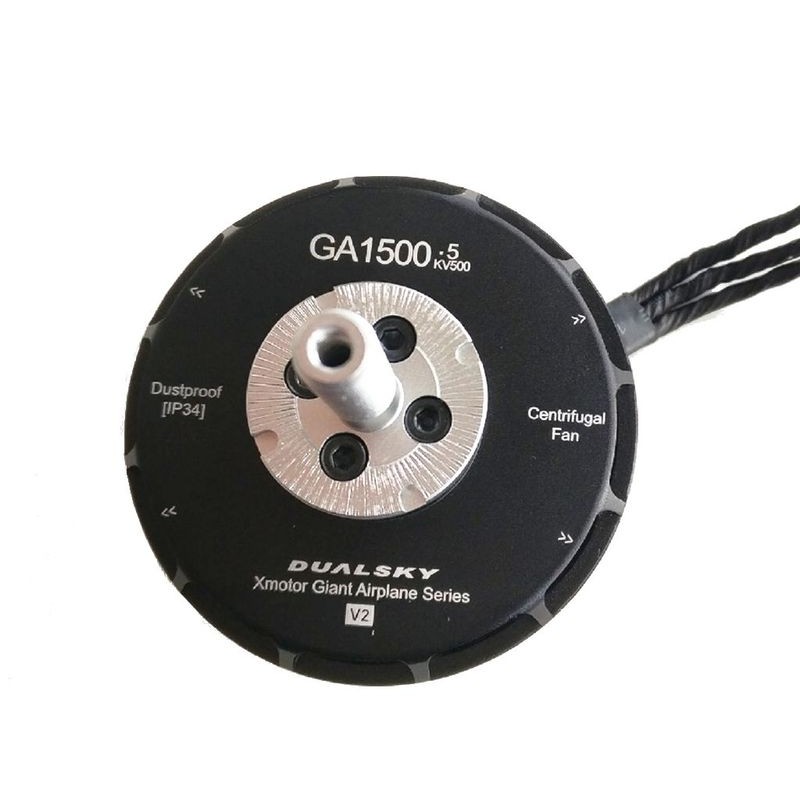

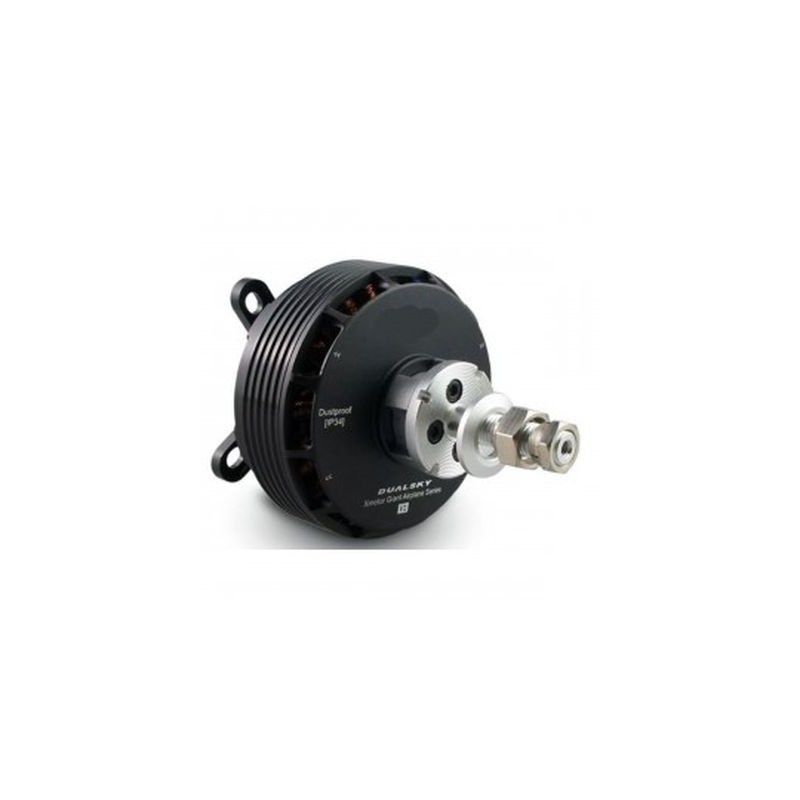

GA1500.5 DUAL MOTOR - 500kv

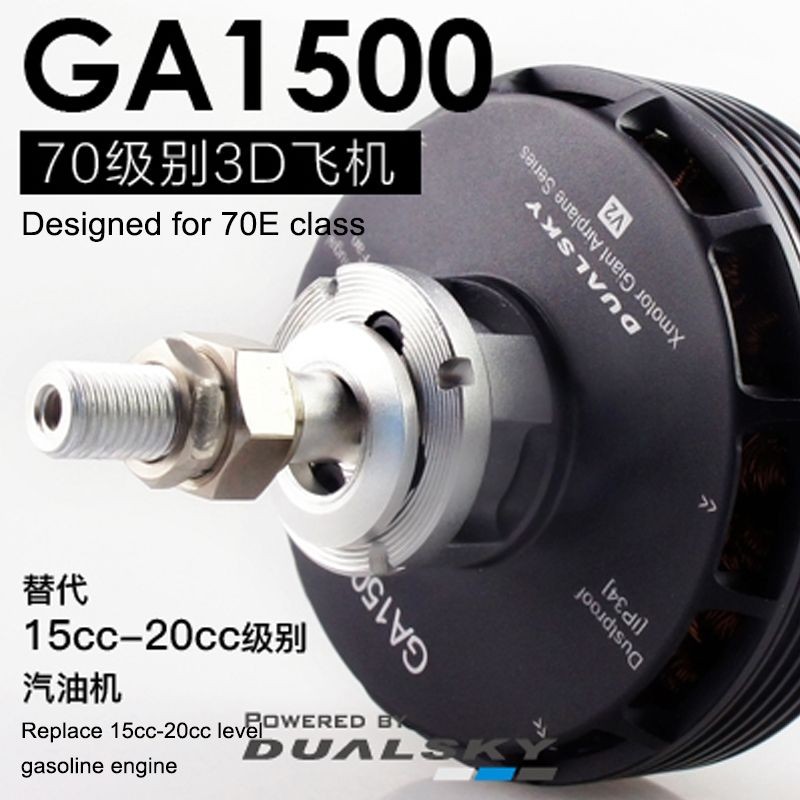

The top line of electric motors by Dualsky designed for large models. GA1500.5 is designed for models weighing up to 4.5 kg or 3D acrobat models weighing up to 3.0 kg. 15-20cm petrol engine replacement ³

Basic data:

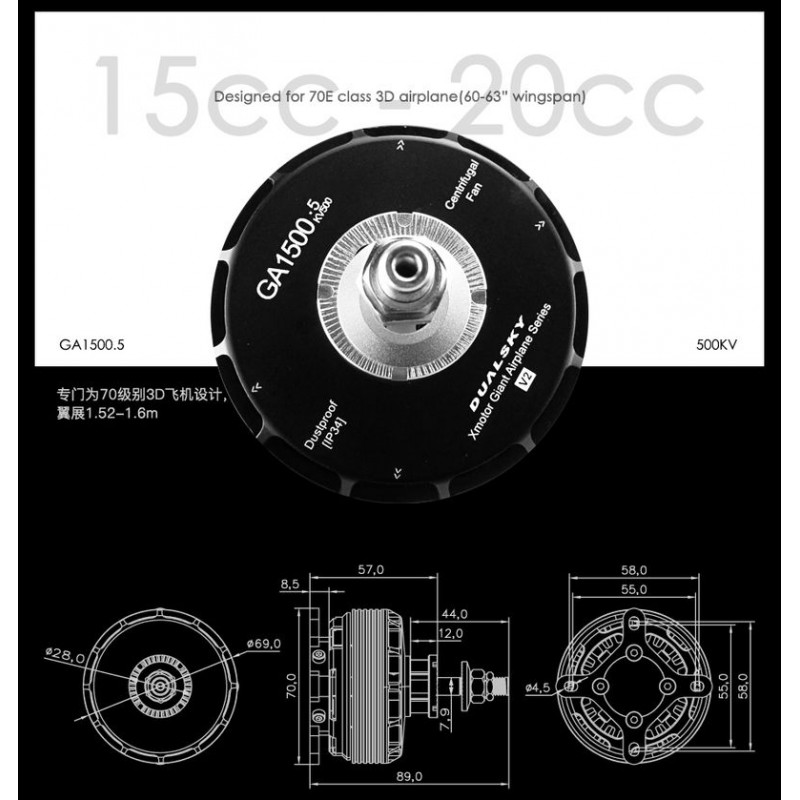

• dimensions: diameter 69 mm, motor length 57 mm, length with the bed 89 mm
• axle diameter: 8 mm (internal axis), 8 mm (external axis),
• distance between fastening screws: 55-58 mm
• power supply: 5-6 Li-pol cells (18.5-22.2V)
• weight (engine only): 280 g
• KV: 500 rpm
• recommended propellers: 15x8 (highest efficiency), 16x8 (high performance), 17x8 (maximum thrust)
• thrust: 18 kg with XOAR 24x10CF propeller (12S Lipo power supply, 125A current)
• maximum instantaneous load: 70A (up to 15 seconds)
• continuous power (8 minutes): 800W
• maximum power (15 seconds): 1500W
• no load current consumption (10V): 2A
• internal resistance: 16.2 mOhm
• recommended regulator: 80A e.g. Dualsky 80A V2 XC8018BA
• application: 3D class 70E aerobatic aircraft models (span 1.5-1.6m)
• set includes: motor with bed, gold DB4 4 mm connectors and heat shrink tubes, key for hub nuts
