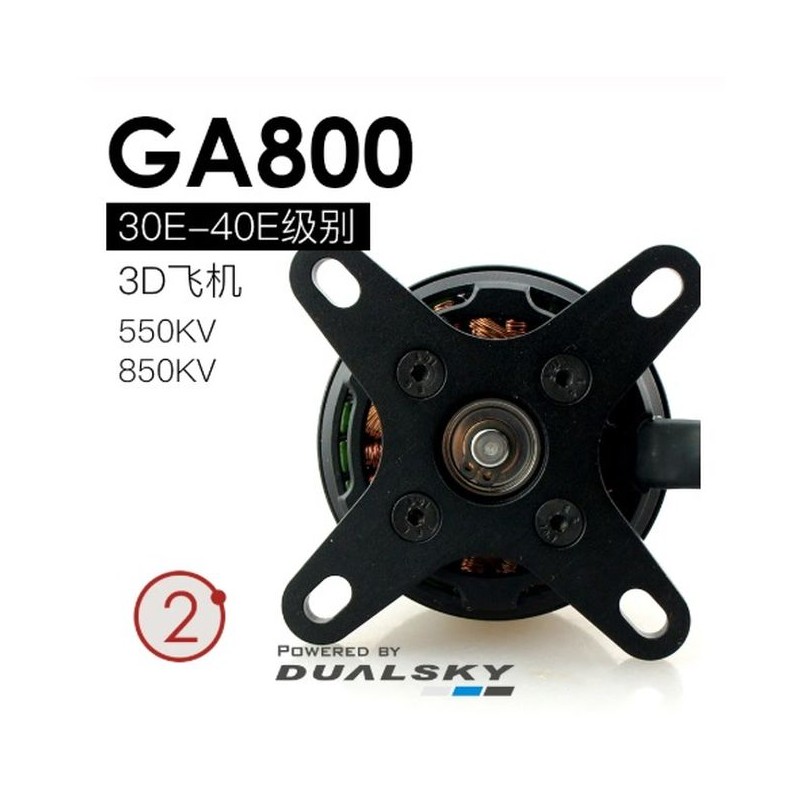

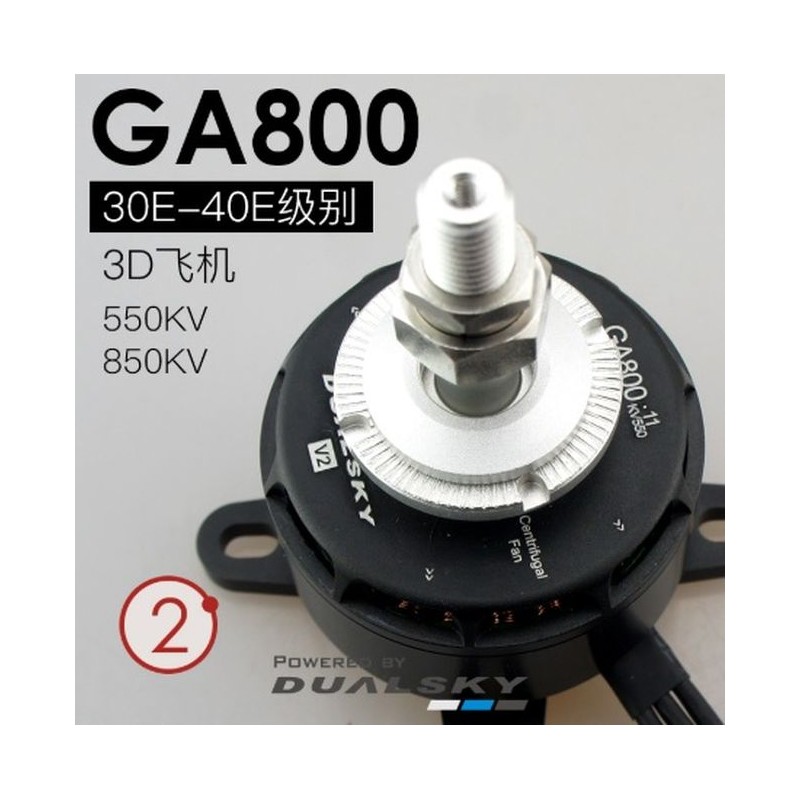

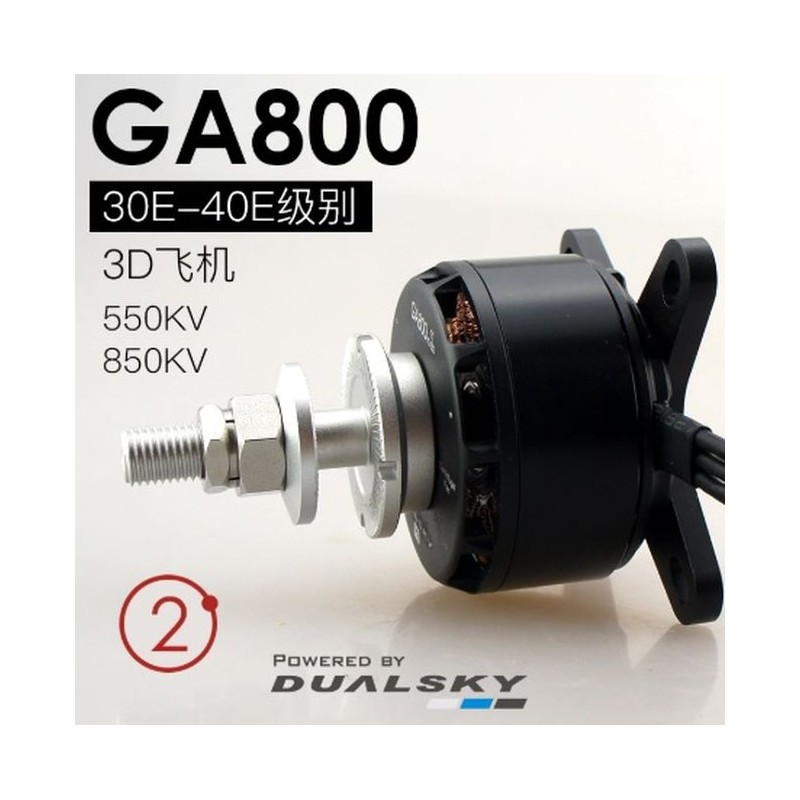

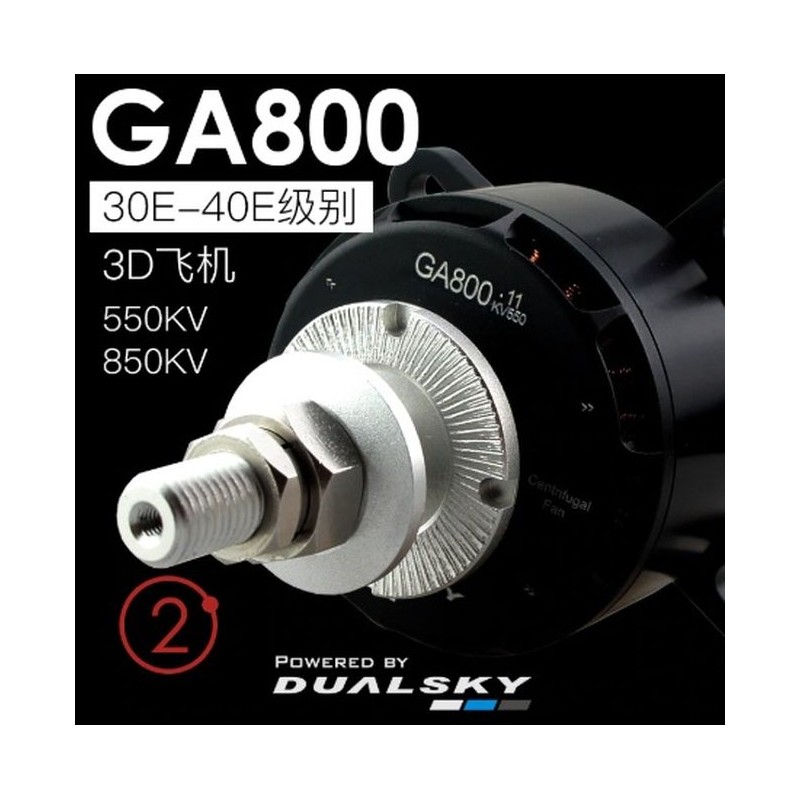

GA DUAL MOTOR 800.11 - 550kv

The top line of electric motors by Dualsky . GA800.11 is designed for 40E class models with spans up to 1.4m (55 ") and weighing up to 2.2kg or 3D acrobat models weighing up to 1.5 to 1.8kg.

Basic data:

• dimensions: diameter 46 mm, motor length 42 mm, overall length with the bed 74 mm
• axle diameter: 5 mm (internal axis), 8 mm (external axis),
• distance between fastening screws: 53-58 mm
• power supply: 6 Li-pol cells (22.2V)
• weight (engine only): 160 g
• KV: 550 rpm
• recommended propellers: 12x6 (most efficient), 13x6.5 (optimal), 14x7 (maximum thrust)
• continuous power (8 minutes): 500W
• maximum power (15 seconds): 1000W
• maximum current (15 seconds): 42A
• no load current consumption (10V): 1.3A
• internal resistance: 42.7 mOhm
• recommended regulator: 40A eg Dualsky 40A Ultra
• application: models of 40E class airplanes weighing up to 2.2 kg (3D up to 1.8 kg)
• the set includes: motor with carbon bed, gold DB3 3.5 mm connectors and heat shrinkable tubes
