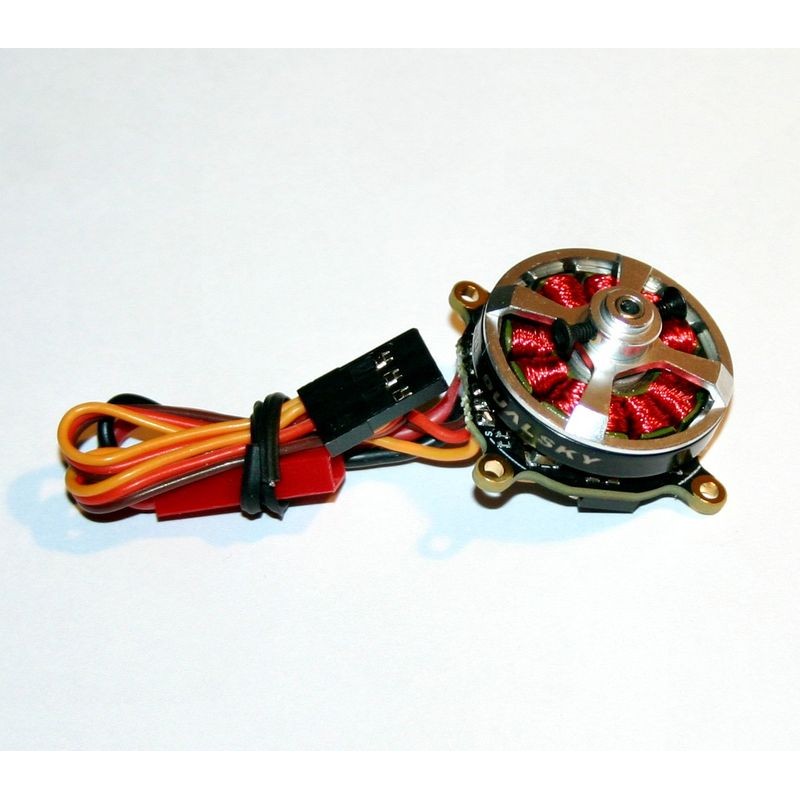

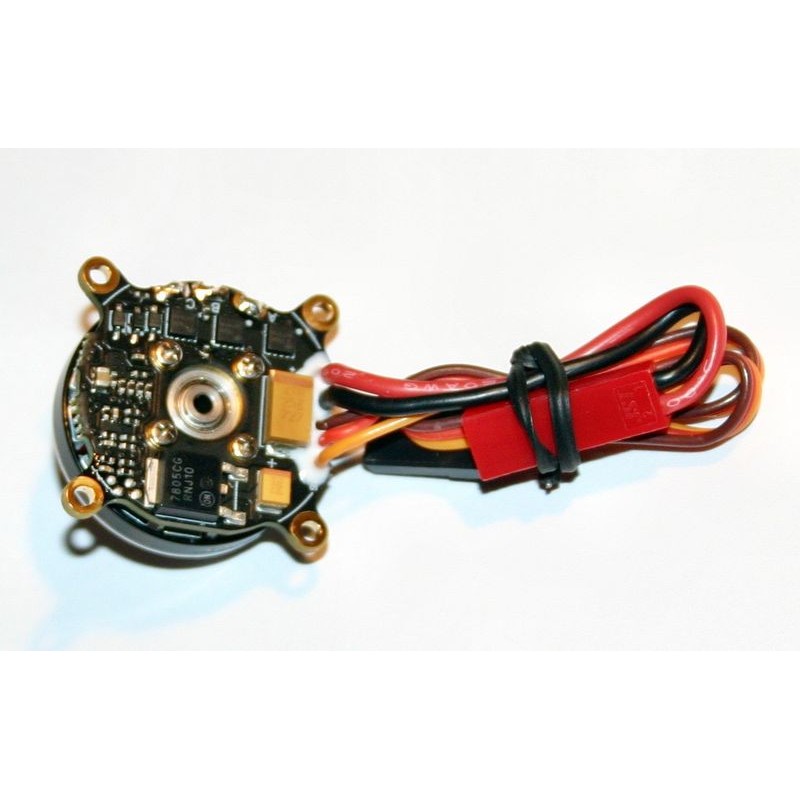

Motor with a built-in regulator based on the TYPHOON XM2202TY-24 motor (thanks to the integration of the motor with the regulator, 5g of weight was saved). The electronics board is also a mounting cross, which allows for further weight savings. Designed for small models of F3P class airplanes weighing 120g.
Basic data:
- rotor outer diameter: 27mm

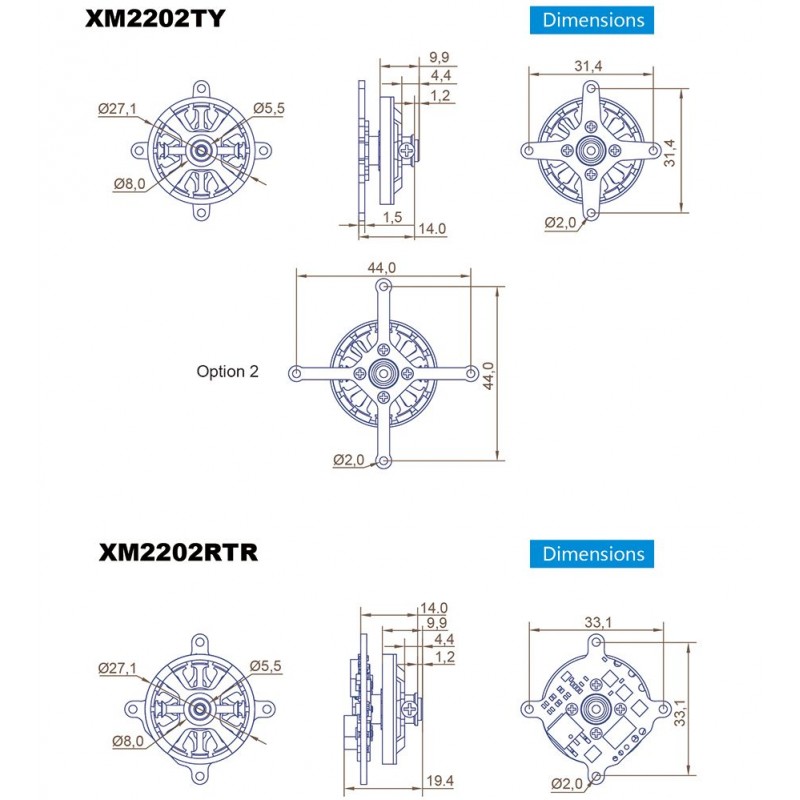

- spacing of mounting holes on the plate: 33.1 / 33.1mm
- 3mm shaft - hollow inside
- Integrated with the motor 5.5mm propsaver hub + 7mm, 8mm rings
- 6A regulator integrated in the motor housing (temporarily up to 20A)
- internal resistance: 520 mOhm
- no-load current consumption (10V): 0.2A
- power supply: 2 Li-xxx cells
- weight: 17.7g
- KV: 1650 rpm

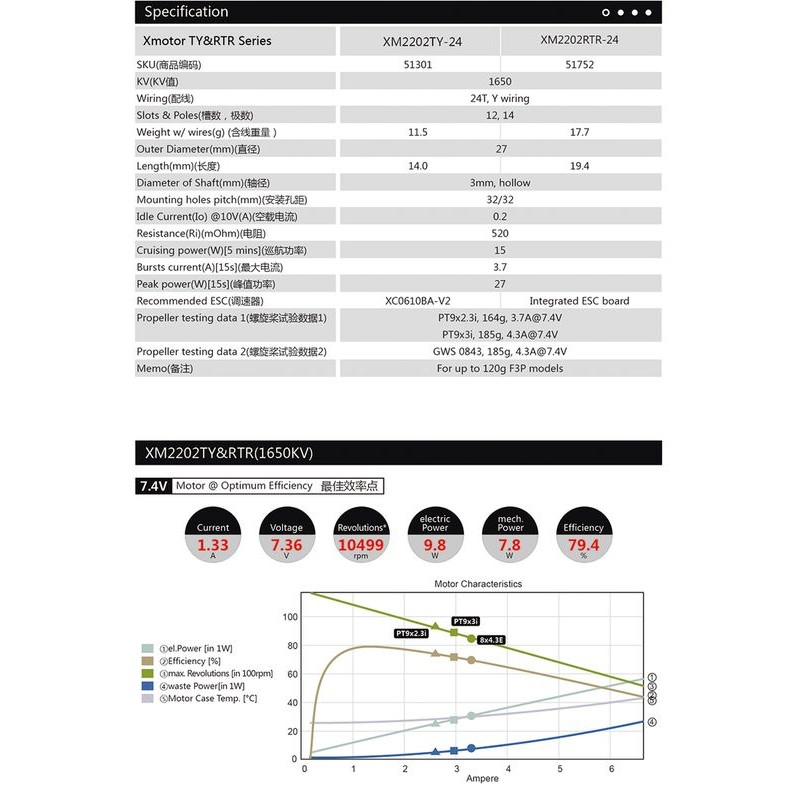

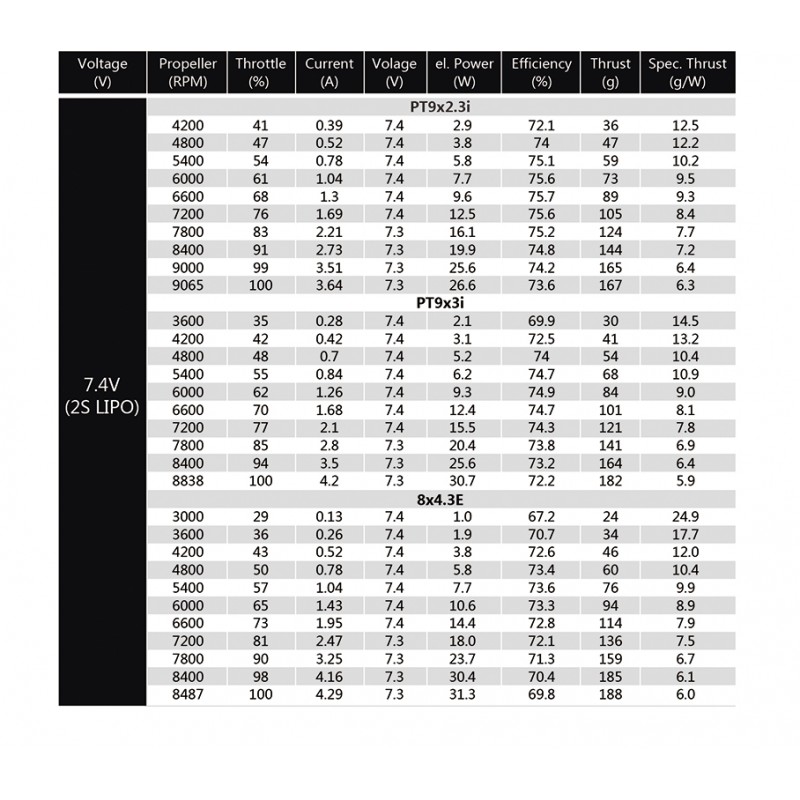

- recommended propellers: see specification in gallery
- max power: up to 27W (up to 15 seconds)
- Application: F3P 120g models
- the set includes: rubber bands for the hub, mounting screws, cable for connection with the receiver
