Dualsky engines

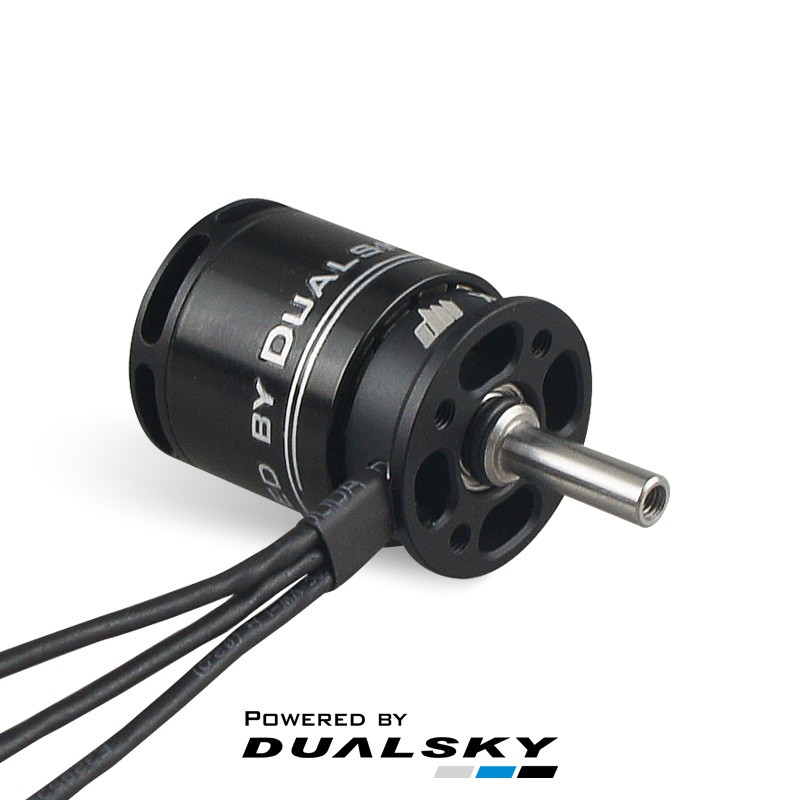

XM2230EG-9 / F5K DUAL ENGINE

€40.70
12-5738
Dualsky
In stock

A tiny EG series engine dedicated to F5K / F5B class gliders.

Basic data:

  • dimensions: diameter 22.4 mm, motor length 29.4 mm
  • stator dimensions: 1815
  • axle diameter: 4 mm
  • protruding axle length: 15mm
  • spacing of fixing bolts: 16/16 mm (holes for M2.5 bolts)
  • power supply: 2 Li-pol cells
  • weight: 42 g
  • KV: 2700 rpm
  • recommended propellers: CAM 8x5, 8x6, GM 9x5
  • maximum power (15 seconds): 296W
  • string (mN * M): 178
  • maximum current (10 seconds): 40A
  • current consumption without load (10V): 2.35A
  • internal resistance: 31 mOhm
  • application: gliders F5K / F5B
  • the set includes: motor, gold DB2 2mm connectors and heat shrink tubes, mounting screws.
