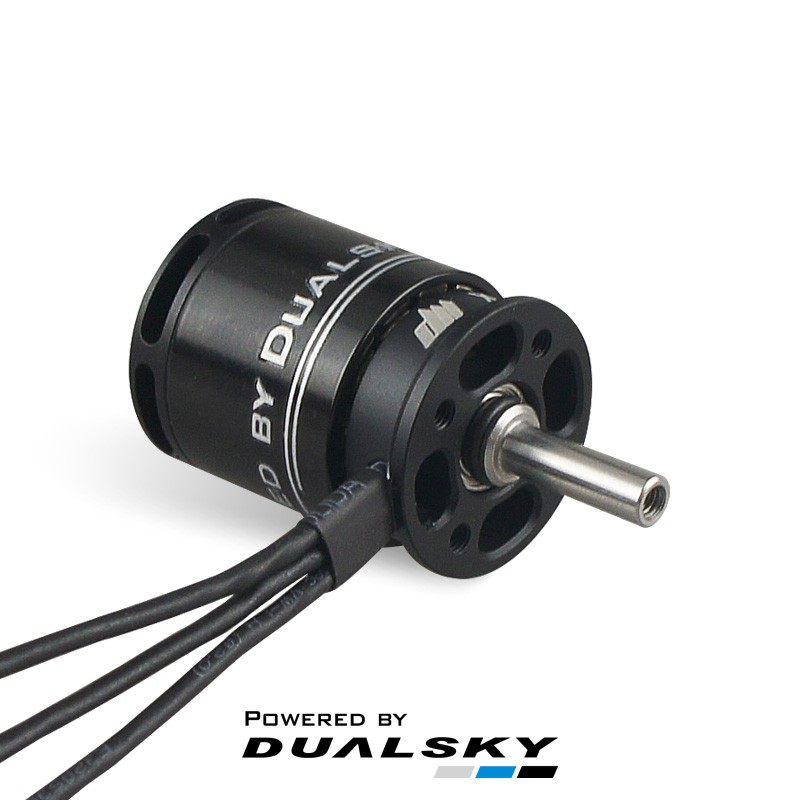

XM2230EG-11 / F5K DUAL ENGINE

€37.14
12-5741
Dualsky
In stock

A tiny EG series engine dedicated to F5K / RES class gliders.

Basic data:

  • dimensions: diameter 22.4 mm, motor length 29.4 mm
  • stator dimensions: 1815
  • axle diameter: 4 mm
  • protruding axle length: 15mm
  • spacing of fixing bolts: 16/16 mm (holes for M2.5 bolts)
  • power supply: 2 Li-pol cells
  • weight: 42 g
  • KV: 2200 rpm
  • recommended propellers: CAM 9x6, GM 10x5 / 10x6
  • maximum power (15 seconds): 252W
  • string (mN * M): 184
  • maximum current (10 seconds): 34A
  • no-load current consumption (10V): 1.7A
  • internal resistance: 45 mOhm
  • application: F5K / RES gliders
  • the set includes: motor, gold DB2 2mm connectors and heat shrink tubes, mounting screws
