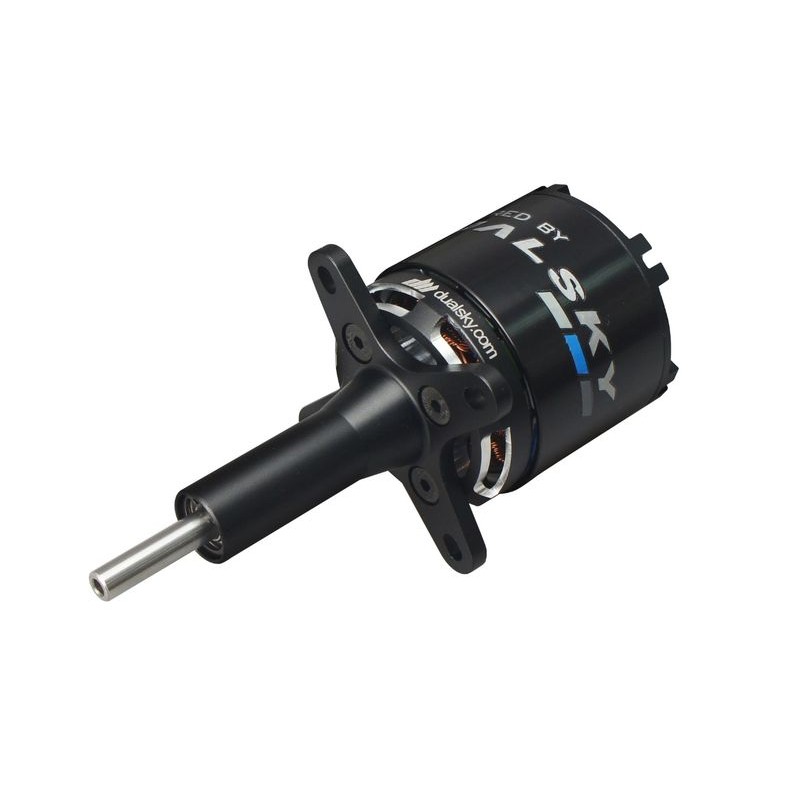

XM5060EGL-12 DUAL ENGINE

The Dualsky XM5060EGL-12 engine is based on the 3rd generation EA series engine and is offered with a dedicated MFE G2 extension for easy electrification of glider mockups and installation in tight fuselages. A line for the most demanding users.

Features of EA DUROTATE motors compared to CA series:

• DUROTATE rotor - changed shape of the rear part of the rotor, improved efficiency of the engine in the middle RPM range, reduced air noise
• improved stator base (front part of the motor) for better heat dissipation
• increased engine efficiency through greater precision of stator and rotor matching (smaller gap between stator and rotor)
• the possibility of vibration has been reduced to a minimum, thanks to which the EA series motors can withstand higher loads
• the winding is thinner, covered with a varnish resistant to higher temperatures (insulation), thanks to which the insulation is better and at the same time the internal resistance is reduced
• a wider selection of EA series motors with optimally tuned KV (revolutions per Volt) allow for the most appropriate engine selection for a given application
• EA series engines in comparison to the CA series in the same size class provide 10-20% more power and at the same time the efficiency increases by 3-5%.

Basic data:

• 14 poles engine
• dimensions: fi 49.5 x 59.2mm (motor only without extension), length 108.2mm with extension
• axle diameter: 6mm
• length of the protruding axle: 22mm
• stator size: 4130
• distance between fastening screws: 30 / 30mm
• spacing of cross mounting bolts: 55-58 / 55-58
• power supply: 6-8 Li-pol cells (suggested 6S LiPo power supply)
• weight: 435g
• KV: 400 rpm
• string (N8M): 2.7
• recommended propellers: 6S / 17x8, 18x8, 18x10 (at 18x10 carefully dispose of full power)), 8S / 15x8, 16x8 (in both cases be careful to use full power)
• current: max. 90A (momentary up to 15 seconds)
• highest efficiency at 44A
• max power (15s): 2160W
• no-load current consumption (10V): 1.4A
• internal resistance: 18.5 mOhm
• recommended regulator: 100-120A HV e.g. Dualsky 100A HV or Summit 100 light or Summit 120
• application: gliders weighing a maximum of 12 kg
• the set includes: male connectors DB4 4mm soldered on the cables + female connectors and heat shrink tubes
