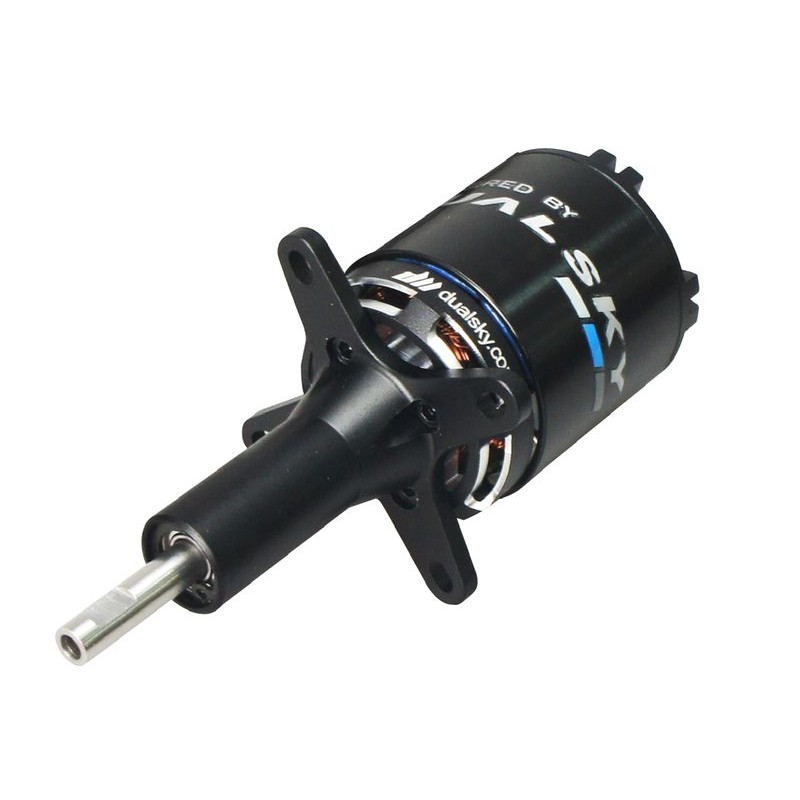

XM3548EGL-9 DUAL ENGINE

The Dualsky XM3548EGL-9 engine is based on the 3rd generation EA series engine and is offered with a dedicated MFE G2 extension for easy electrification of glider mockups and installation in tight fuselages. A line for the most demanding users.

Features of EA DUROTATE motors compared to CA series:

• DUROTATE rotor - changed shape of the rear part of the rotor, improved efficiency of the engine in the middle RPM range, reduced air noise
• improved stator base (front part of the motor) for better heat dissipation
• increased engine efficiency through greater precision of stator and rotor matching (smaller gap between stator and rotor)
• the possibility of vibration has been reduced to a minimum, thanks to which the EA series motors can withstand higher loads
• the winding is thinner, covered with a varnish resistant to higher temperatures (insulation), thanks to which the insulation is better and at the same time the internal resistance is reduced
• a wider selection of EA series motors with optimally tuned KV (revolutions per Volt) allow for the most appropriate engine selection for a given application
• EA series engines in comparison to the CA series in the same size class provide 10-20% more power and at the same time the efficiency increases by 3-5%.

Basic data:

• 14 poles engine
• dimensions: fi 35.2 x 48.2mm (the motor itself without extension), length 86.2 with extension
• axle diameter: 5mm
• length of the projecting axle: 17.9mm
• stator size: 2826
• spacing of mounting bolts: 19 / 19mm
• spacing of cross mounting bolts: 41-44 / 41-44
• power supply: 3-4 Li-pol cells (suggested 4S LiPo)
• weight: 200g
• KV: 820 rpm
• string (N * M): 0.87
• recommended propellers: 3s / 14x8, 15x6, 4s / 12x7, 13x7
• current: max. 60A (momentary up to 15 seconds)
• highest efficiency at 30A
• max power (15s): 960W
• no load current consumption (10V): 1.5A
• internal resistance: 20.5 mOhm
• recommended regulator: 60-100A e.g. Dualsky 65A Lite or Dualsky 80A V2 or Dualsky Summit 100 light
• application: sailplanes weighing up to 5.6 kg
• included: male connectors DB3 3.5 mm soldered on the cables + female connectors and heat shrink tubes
