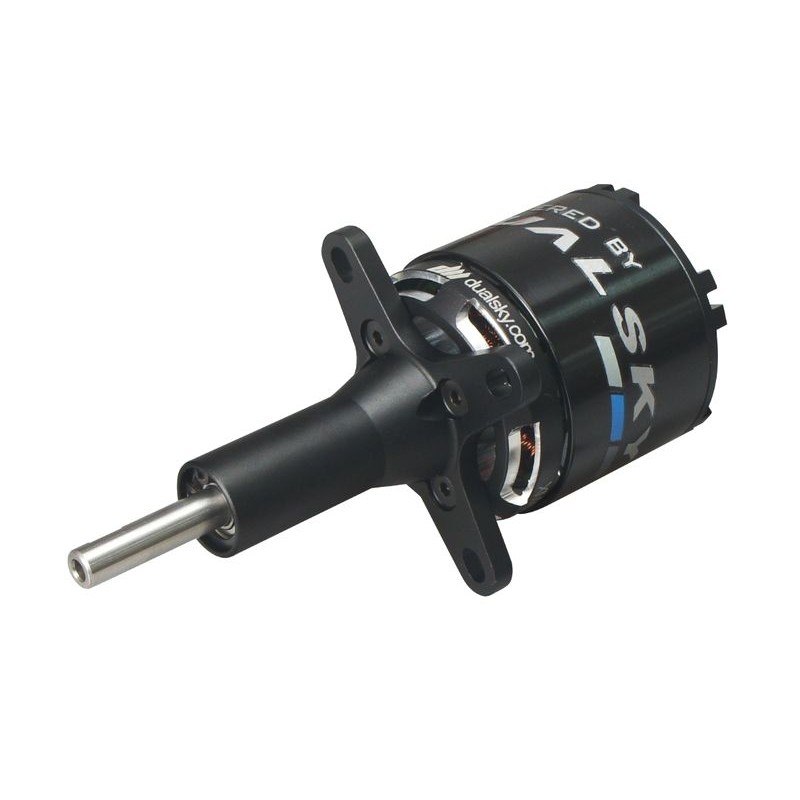

DUALSKY SILNIK XM4255ELG-10

The Dualsky XM4255EGL-10 engine is based on the 3rd generation EA series engine and is offered with a dedicated MFE G2 extension for easy electrification of glider mockups and installation in tight fuselages. A line for the most demanding users.

Features of EA DUROTATE motors compared to CA series:

• DUROTATE rotor - changed shape of the rear part of the rotor, improved efficiency of the engine in the middle RPM range, reduced air noise
• improved stator base (front part of the motor) for better heat dissipation
• increased engine efficiency through greater precision of stator and rotor matching (smaller gap between stator and rotor)
• the possibility of vibration has been reduced to a minimum, thanks to which the EA series motors can withstand higher loads
• the winding is thinner, covered with a varnish resistant to higher temperatures (insulation), thanks to which the insulation is better and at the same time the internal resistance is reduced
• a wider selection of EA series motors with optimally tuned KV (revolutions per Volt) allow for the most appropriate engine selection for a given application
• EA series engines in comparison to the CA series in the same size class provide 10-20% more power and at the same time the efficiency increases by 3-5%.

Basic data:

• 14 poles engine
• dimensions: fi 43.2 x 49.9mm (motor only without extension), length 91.9mm with extension
• axle diameter: 6mm
• length of the protruding axle: 22mm
• stator size: 3525
• distance between fastening screws: 25 / 25mm
• spacing of cross mounting bolts: 48-51 / 48-51
• power supply: 4-5 Li-pol cells (suggested 5S LiPo power supply)
• weight: 305g
• KV: 620 rpm / V
• string (N * M): 1.4
• recommended propellers: 4s / 15x8, 16x8 (with 16x8, be careful with full power), 5s / 14x7, 15x8 (with 15x8, be careful with full power)
• current: max. 72A (momentary up to 15 seconds)
• highest efficiency at 36A
• max power (15s): 1440W
• no load current consumption (10V): 1.5A
• internal resistance: 16 mOhm
• recommended regulator: 60-100A e.g. Dualsky 65A Lite or Dualsky 80A V2 or Dualsky Summit 100 light
• application: sailplanes with a maximum weight of 8.4 kg
• the set includes: male connectors DB4 4mm soldered on the cables + female connectors and heat shrink tubes
