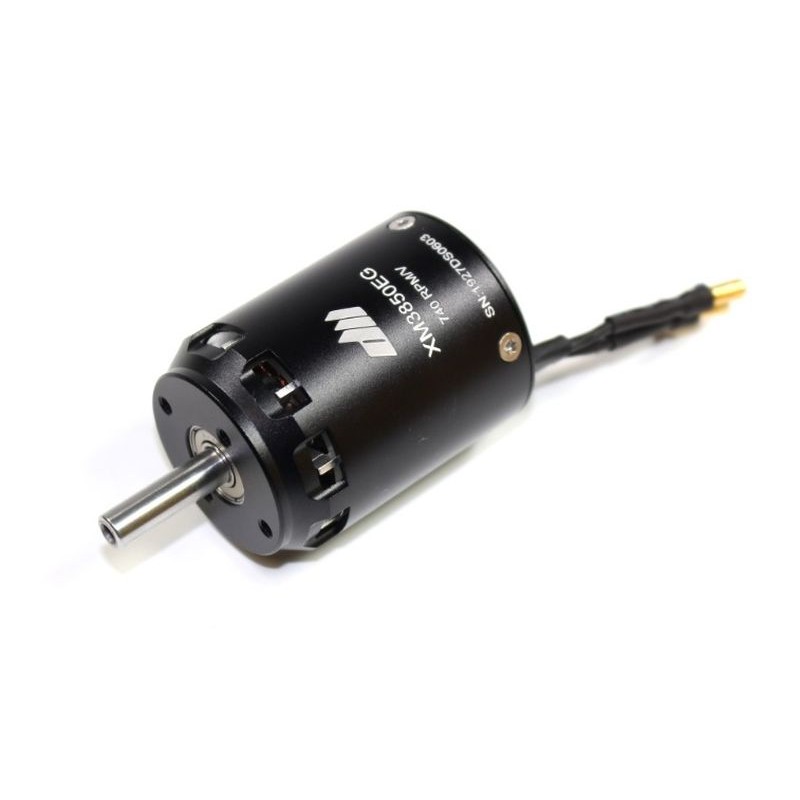

XM3850EG- 8 GLIDER DUAL ENGINE

XM3850EG is a line of Dualsky 14- Dualsky electric motors designed for models of narrow fuselage gliders, eg F5J, characterized by high torque and efficiency. The lack of a rotating rotor and cables routed from the rear of the engine allow for easy and safe installation in a tight hull without the risk of chafing the cables. The engine has a solid and light 6mm diameter shaft, hollow shaft. Large, heavy-duty and impact-resistant N MB bearings are used to maximize durability.

Basic Features:

• housing precisely made of CNC aluminum
• built-in fan
• cables from the rear
• factory-fitted G3 .5 connectors
• long life N MB bearings
• excellent power-to-weight ratio and price / quality ratio
• performance and power comparable to recognized brands such as AXI or M EGA MOTOR
• works with most modeling speed regulators
• spare parts such as shaft or bearings available on request

Basic data:

• dimensions: diameter 38 mm, motor length 50 mm
• axle diameter: 6 mm
• distance between fastening screws: 25/19 mm
• power supply: 3-4 Li-pol cells
• weight: 195 g
• KV: 920 rpm
• recommended propellers: 3S: 14x6 to 15x8, 4S 12x8 to 13x8
• maximum power (15 seconds): 880W
• maximum current (15 seconds): 55A
• maximum thrust: 0.71 n * m
• current consumption without load (10V):
• internal resistance:
• application:
• set includes: motor, gold DB3 3.5 mm connectors and heat shrink tubes
• recommended regulator: 60A e.g. Dualsky XC-65-Lite
