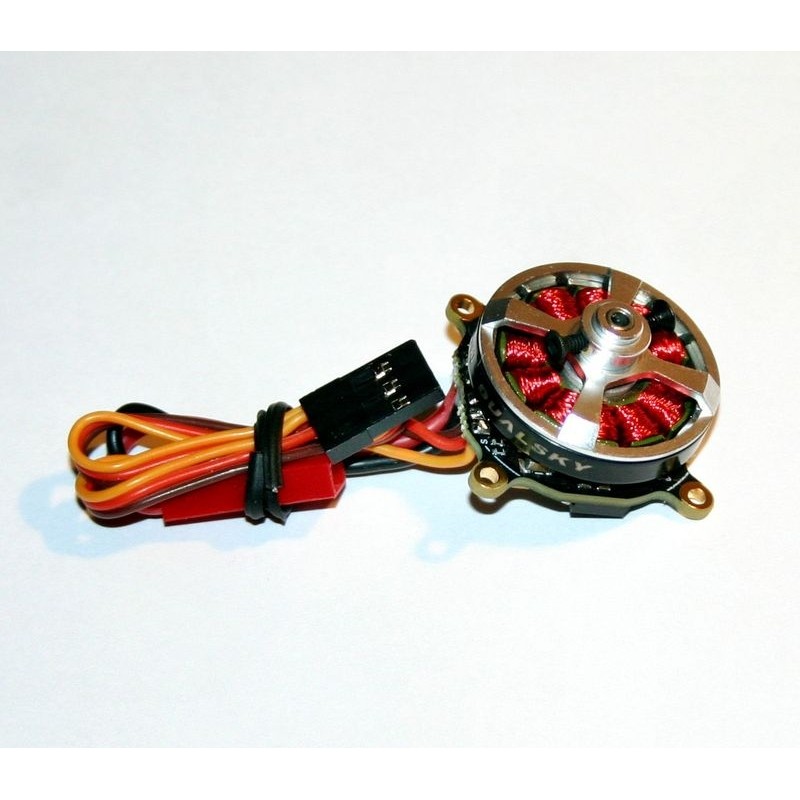

XM2203RTR-16 DUAL ENGINE + speed controller

Motor with a built-in regulator based on the TYPHOON XM2203TY-16 motor (thanks to the integration of the motor with the regulator, 5g of weight was saved). The electronics board is also a mounting cross, which allows for further weight savings. Designed for small models of F3P class airplanes weighing 150g.

Basic data:

• rotor outer diameter: 27mm
• spacing of mounting holes on the plate: 33.1 / 33.1mm
• 3mm shaft - hollow inside
• 5.5mm propsaver hub integrated with the motor + 7mm, 8mm rings
• 6A regulator integrated in the motor housing (temporarily up to 20A)
• power supply: 2 Li-xxx cells
• weight: 18.5g
• KV: 1650 rpm
• recommended propellers: PT 9x3i, GWS 8x4
• current: maximum load 5.1A (momentary up to 15 seconds)
• max power: up to 38W (up to 15 seconds)
• Application: F3P 150g models
• the set includes: rubber bands for the hub, mounting screws, cable for connection with the receiver
