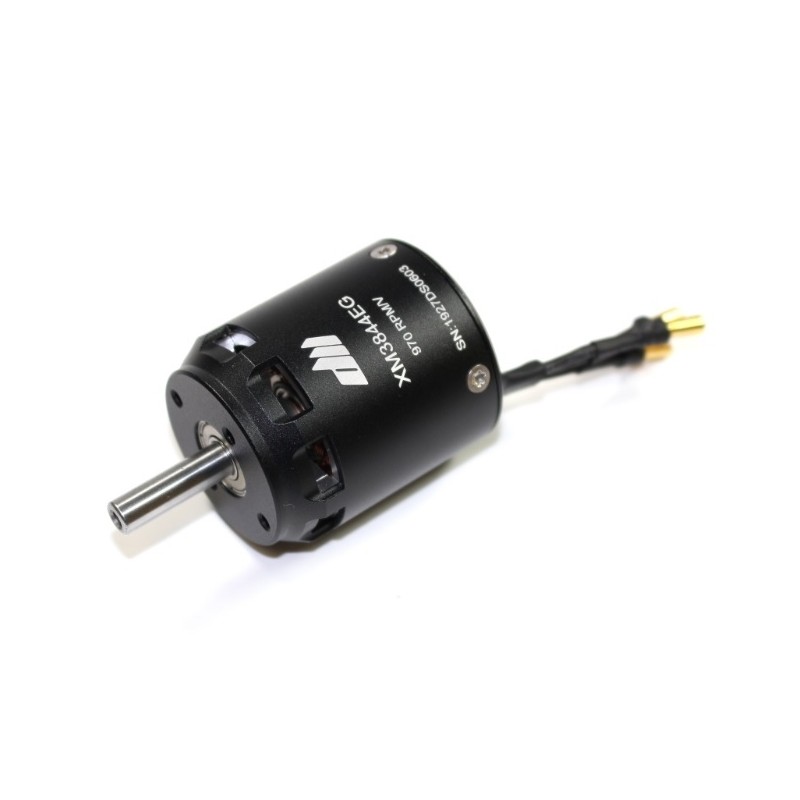

XM3844EG-12 GLIDER DUAL ENGINE

XM3844EG is a line of Dualsky 14-pole electric motors designed for narrow fuselage sailplanes, eg F5J, characterized by high torque and efficiency. The lack of a rotating rotor and cables routed from the rear of the engine allow for easy and safe installation in a tight hull without the risk of chafing the cables. The engine has a solid and light 6mm diameter shaft, hollow shaft. Large, heavy-duty and impact-resistant NMB bearings are used to maximize durability.

Basic Features:

• housing precisely made of CNC aluminum
• built-in fan
• cables from the rear
• factory-fitted G3.5 connectors
• NMB bearings with long life
• excellent power-to-weight ratio and price-quality ratio
• performance and power comparable to recognized brands such as AXI or MEGA MOTOR
• works with most modeling speed regulators
• spare parts such as shaft or bearings available on request

Basic data:

• dimensions: diameter 38 mm, motor length 44 mm
• axle diameter: 6 mm
• distance between fastening screws: 25/19 mm
• power supply: 3-4 Li-pol cells
• weight: 161 g
• KV: 810 rpm
• recommended propellers: 3S: 14x6 to 15x8, 4S 12x8 to 13x8
• maximum power (15 seconds): 640W
• maximum current (15 seconds): 40A
• maximum thrust: 0.59 n * m
• current consumption without load (10V):
• internal resistance:
• application:
• set includes: motor, gold DB3 3.5 mm connectors and heat shrink tubes
• recommended regulator: 50-60A e.g. Dualsky XC-65-Lite
